📋 Basic Info.
Lightning Protection
With Lightning Protection
Certification
ISO, RoHS, CE
Production Capacity
100, 000/Year

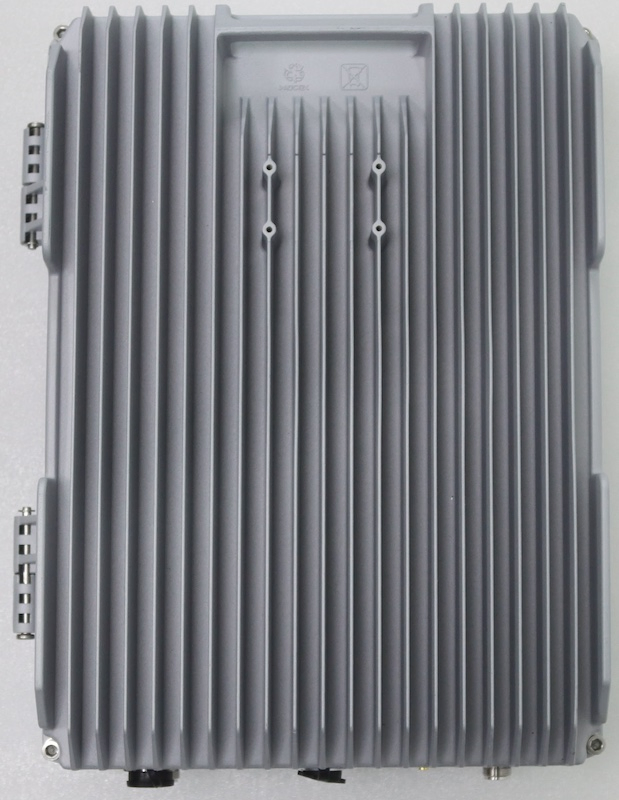

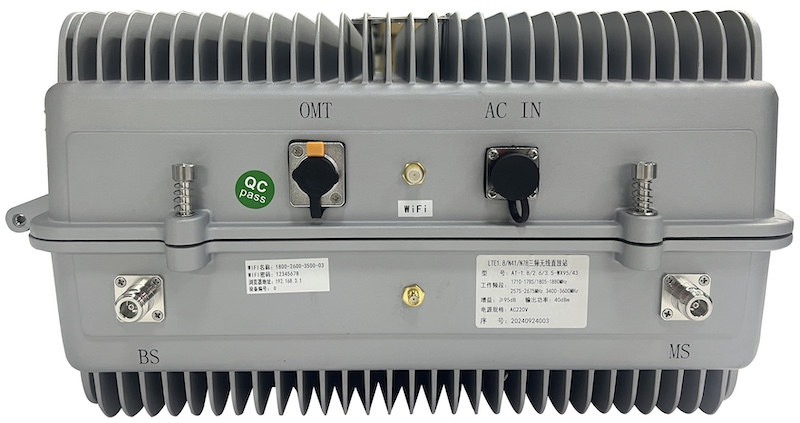

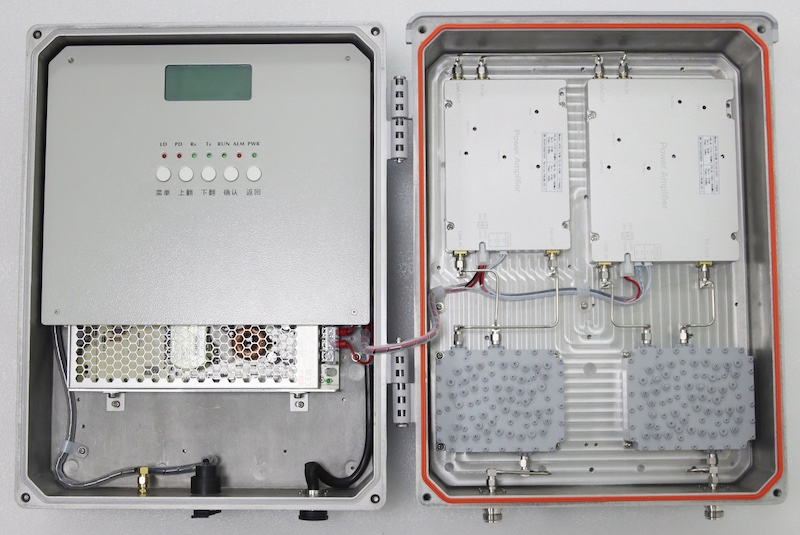

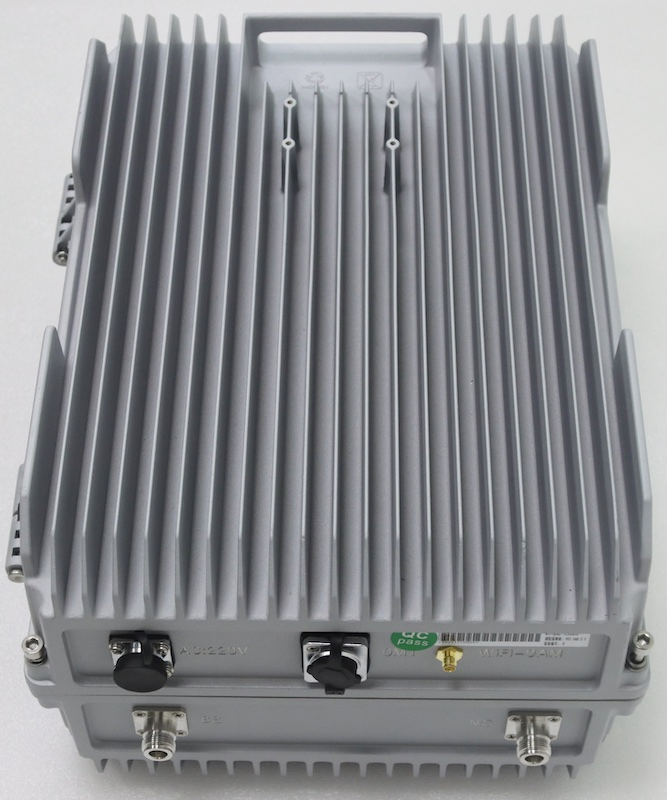

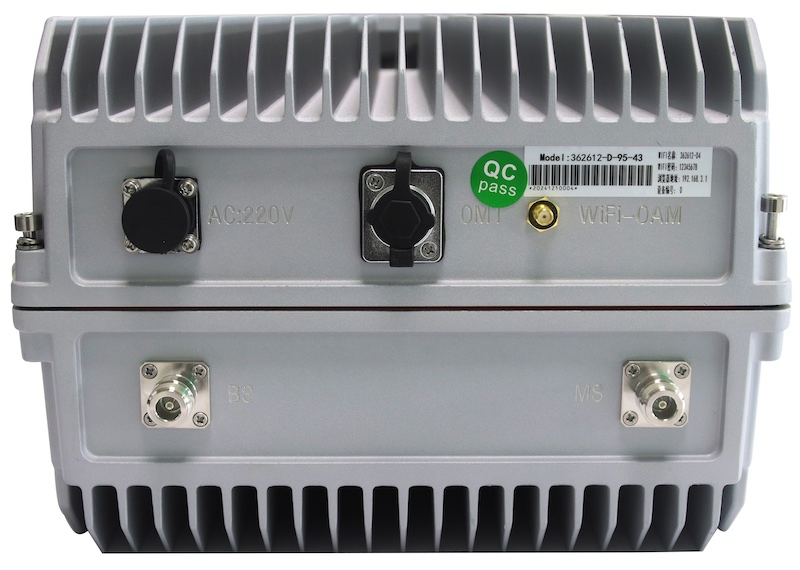

📶 Digital 5G NR Repeater for Cellular or Private Network Coverage
The digital repeater is a smart signal booster designed to improve indoor voice and data coverage in up to four bands for 2G/3G/4G/5G for small to large size buildings.
Applications
- Datacenter & Warehouse
- Education & Healthcare
- Hospitality & Residential
- Office & Property Management
- Parking, Walkways & Tunnels
- Retail & Home Office
- Lift Cabinet & Mining
✨ Main Features
- Wideband and Channelized Capability: Specific sub-bands can be filtered for amplification.
- High Output Power: 27dBm for downlink and up to 23dBm for uplink output power.
- Flexible Configuration: Each band is independently configurable for challenging environments.
- Advanced Management: LCD+keypad, WiFi with web browser operation, and optional USB App.
- Cloud NMS: Monitor and control the repeater anywhere via internet connection.

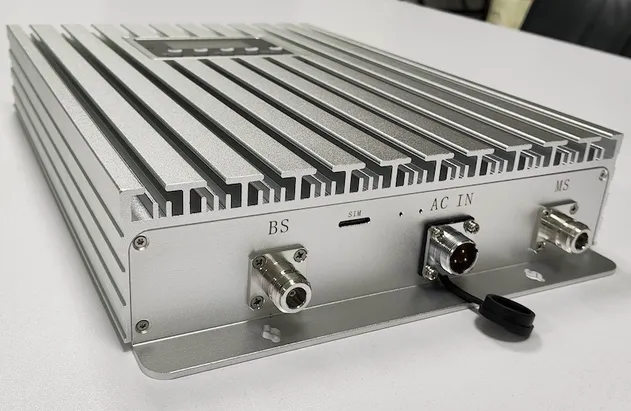

Medium Low Power type

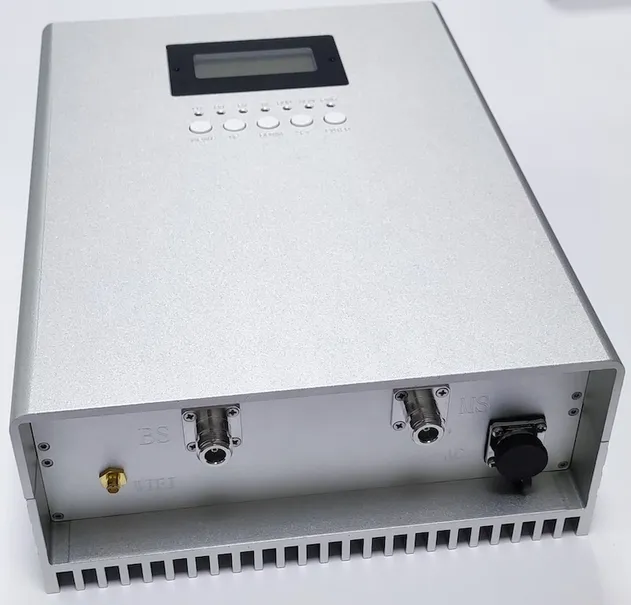

Medium High Power Type

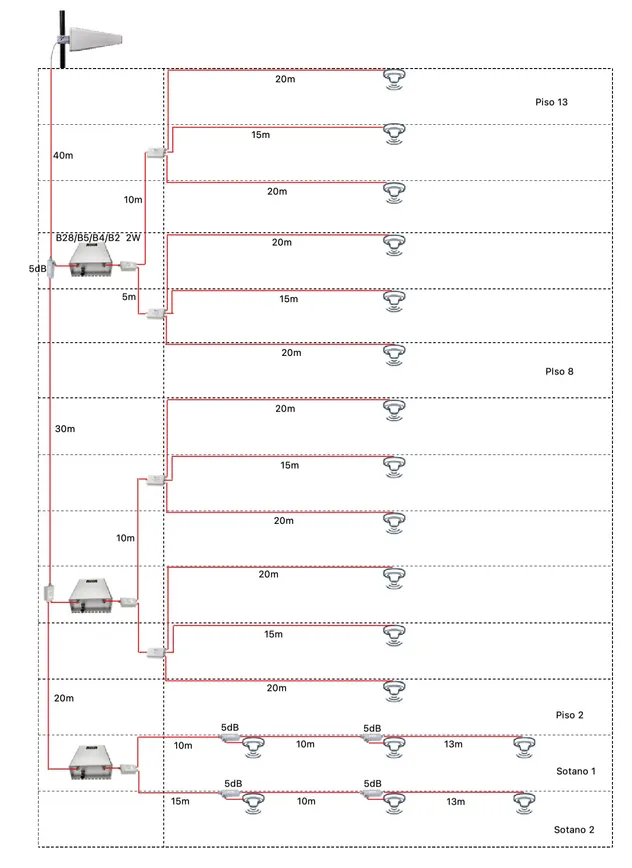

Applications
📊 Technical Specifications
(Custom configurations available upon request.)
| Parameter |
Details |
| Bands Support | VHF, UHF, N71, N28, N5, N20, N8, N66, N3, N1, N40, N7, N78, N77, N79 |
| Network Support | LMR/2G/3G/4G/5G |
| Network Protocols | TETRA/P25/DMR/GSM/WCDMA/LTE/NR/WiFi |
| Duplex Mode | FDD and TDD |
| Maximum Output Power | 20 to 43dBm |
| System Gain | 65-95dB |
| Gain Control Range | ≥30dB (MGC or AGC) |
| Auto Level Control (ALC) | ≥20dB |
| Noise Figure (uplink) | ≤6dB |
| System Delay | <1μs @wideband, ≤6μs @Digital Channelized |
| Spurious Emission | Comply with 3GPP TS36.106 & TS38.106 |
| Power Supply | AC100-240V, 50/60Hz |
| Dimension | 250mm*200mm*55mm to 500mm*440mm*187mm |
🛠️ After Sales Service
- Standard Warranty: 12 months.
- Extended Warranty: Optional coverage up to 36 months.
- Global Support: Technical assistance and spare parts supply.
- Training: On-site or remote operation and maintenance training.
🏢 Company Profile
We are a leading manufacturer of telecommunications equipment with over 25 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
Why Choose Us?
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Fast shipping & customs clearance support
- Turnkey project solutions
Other Products
- Active DAS
- Critical Communications BDA
- Frequency Shift Repeater
- RF Passive Components & Power Amplifiers
❓ Frequently Asked Questions
What is the lead time for orders?
Standard models typically ship within 15–30 days, while customized units require 30–45 days depending on the complexity.
Do you provide after-sales service overseas?
Yes, we provide global technical assistance and have partnered service centers in key regions to support our international clients.
Can I request customized configurations?
Absolutely! We offer tailored attachments and specific frequency band configurations to meet your local network requirements.
What documents do you provide for export?
We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
How do I place an order?
You can contact our sales team via the inquiry form for a quote. Once specifications are confirmed, you can finalize the order with a Purchase Order (PO).
Is technical training provided?
Yes, we offer both on-site and remote training for equipment operation and maintenance to ensure optimal system performance.
