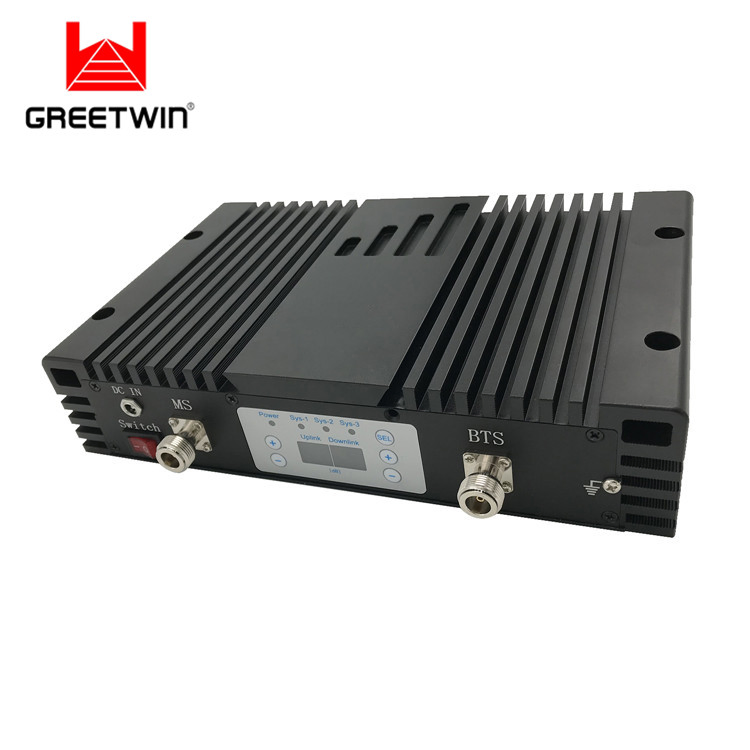

23dBm 900MHz 3G Dual Band Signal Amplifier Black Booster (GW-23GW)

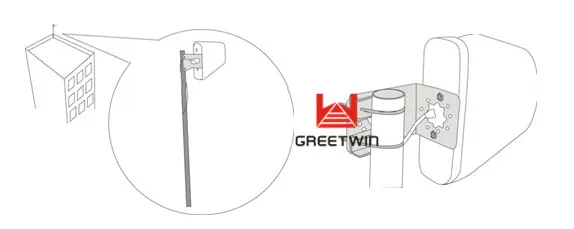

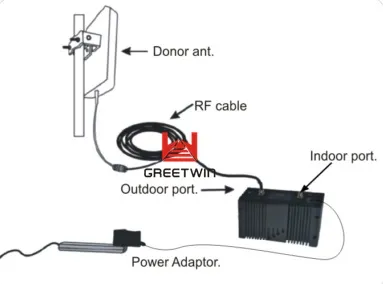

The Indoor Dual Band Signal Repeater series is an ideal solution for small/medium businesses and home users looking to enhance indoor 2G & 3G wireless connectivity. It connects via coaxial cable to Donor and Service antennas, extending radio coverage to blind areas. Featuring Automatic Gain Control (AGC), it avoids saturation, maintaining high voice quality without network interference. The super compact design allows for easy installation by individual customers without professional expertise.
| Frequency Range | Uplink: 890-915 / 1920-1980MHz | Downlink: 935-960 / 2110-2170MHz | ||||
| Max. Gain | 70dB | 75dB | ||||
| Max. Output Power | 20dBm | 23dBm | ||||
| Band width | Wide Band | |||||
| Automatic Gain Control | >20dB | |||||
| Noise Figure | ≤ 6dB | |||||
| Time Delay | ≤ 1.5 μs | |||||
| MTBF | > 50000 hours | |||||
| Impedance | 50 ohm | |||||
| RF Connector | N-Female | |||||
| Size / Weight | 268mm*58mm*189mm / < 3Kg | |||||
Standard Package Includes:
Ideal Applications: Hotels, Homes, Basements, Shopping Malls, Offices, and Parking Lots where signals are weak.
