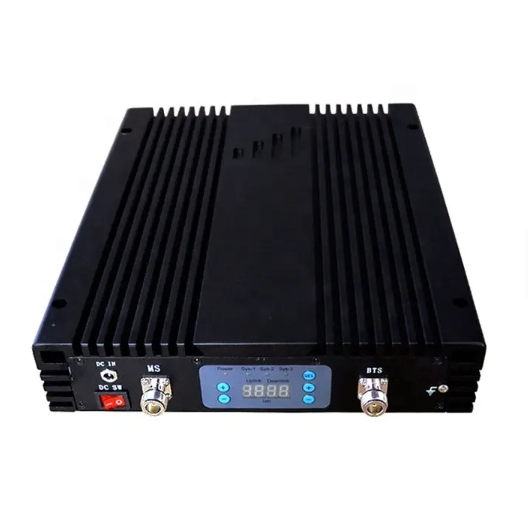

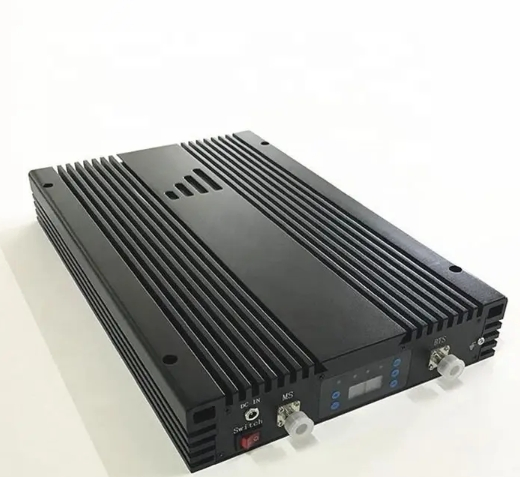

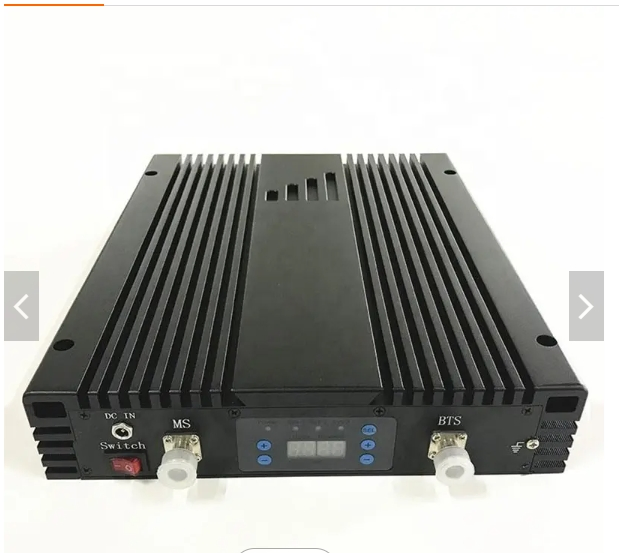

30dBm 2g 3G Signal Repeater GSM 850MHz/Aws 1700MHz/PCS 1900 MHz Mobile Network Tri Band Signal Booster

1 / 5

30dBm 2g 3G Signal Repeater GSM 850MHz/Aws 1700MHz/PCS 1900 MHz Mobile Network Tri Band Signal Booster

Customization:	Available
Type:	Signal Repeater
Transmission Medium:	Cable

Send Inquiry

Product Description

Basic Information

Standard

Lightning Protection

with Lightning Protection

Condition

New

Output Power

27/33/43dB

Working Frequency

900 1800 2100 2600 850 1900

Transport Package

5PCS/Carton

Specification

Single band/ Dual band /Tri band

Origin

China

Production Capacity

50000/Year

2G 3G 4G All Frequency Dual Band Mobile Cell Phone Signal Network Booster Repeater

Advanced indoor signal repeater solution designed for businesses and home users to eliminate wireless connectivity dead zones.

Technical Specifications

Parameter	Uplink	Downlink
Frequency Range (GSM 900)	890 - 915 MHz	935 - 960 MHz
Frequency Range (DCS/LTE 1800)	1710 - 1785 MHz	1805 - 1880 MHz
Gain	75dB ± 2dB	78dB ± 2dB
Output Power	20dBm ± 2dBm	23dBm ± 2dBm
Bandwidth	Wide Band
Manual Gain Control	31dB / 1dB Step
ALC	> 20dB
Noise Figure	≤ 6dB
VSWR	≤ 2.0
Intermodulation	≤ -40dBc
Time Delay	≤ 1.5 μs
MTBF	> 50000 hours
Impedance	50 ohm

Mechanical Specification

RF Connector

N-Female

Cooling

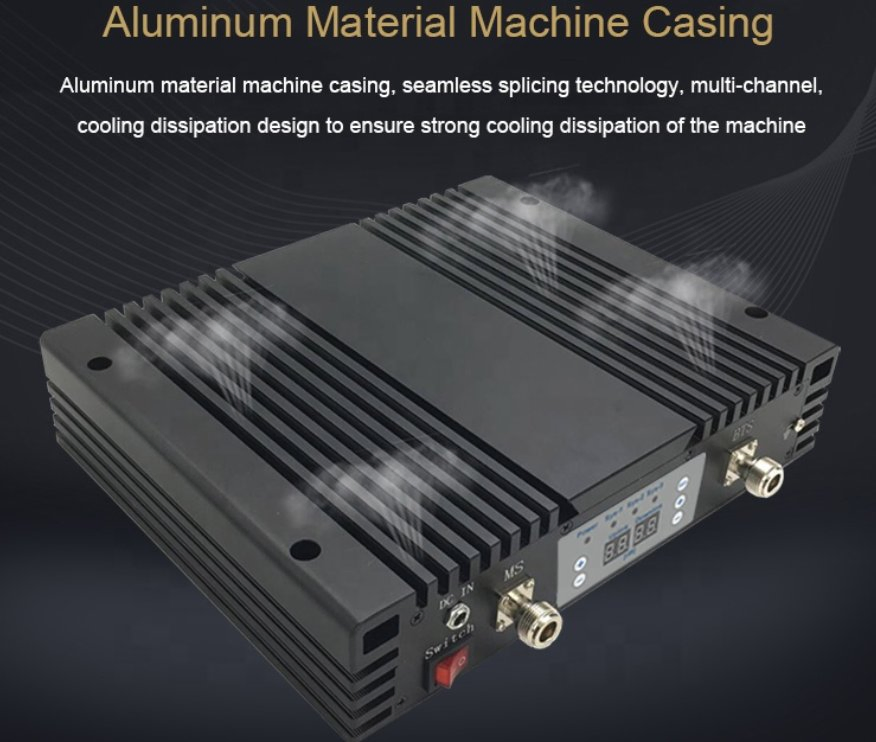

Heatsink Convection cooling

Humidity

< 90%

Operating Temp

-10°C ~ +55°C

Protection

IP40

Size

268mm*58mm*189mm

Weight

< 4.1Kg

Key Features

Cost-effective solution for weak signal zones, reducing dropped calls.
Compact size with low power consumption and easy installation.
Covers approximately 3000~6000m² in open environments.
High linear design with ALC function to prevent BTS interference.
Supports all cellular devices for voice, data, and video.
Wide band signal boosting with options for selective band customization.

Product Advantages

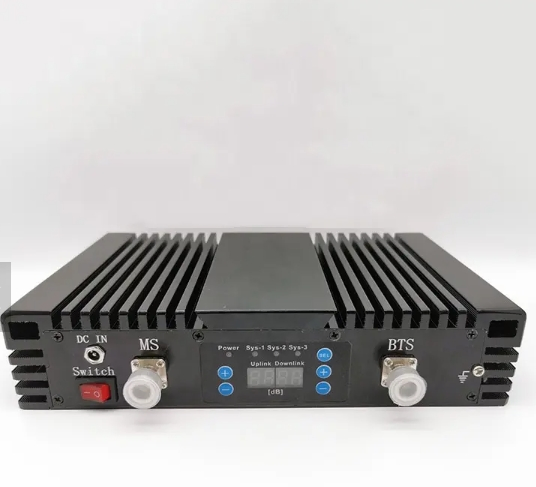

Digital Display: Real-time status monitoring via LED panel.
Intelligent Mode: Smart functions activated via digital interface.
Simple Setup: Parameters are easier to set than traditional DIP switches.
Health Safe: Improves signals with no negative impact on human health.

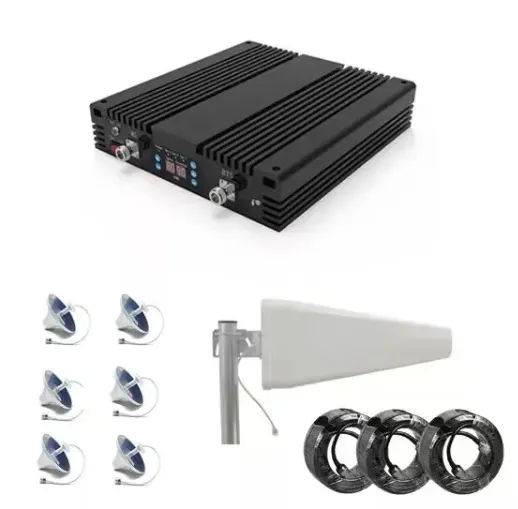

Standard Package Includes

1x AC90-264V, DC 9V/5A Power Supply Adapter
1x AC Power Cord (Standard matching your region)
1x Professional Installation Kit
1x Comprehensive User Manual

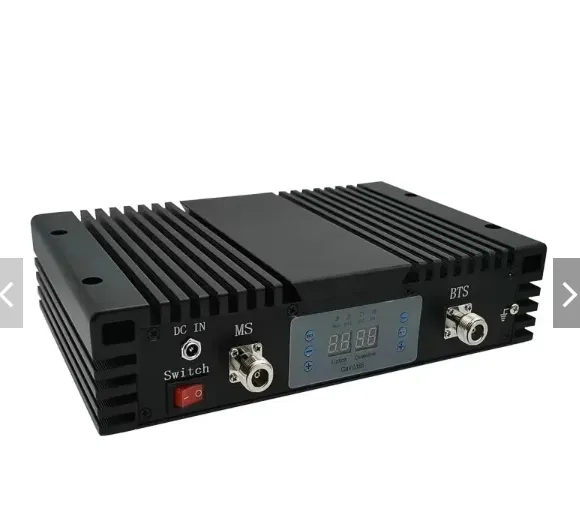

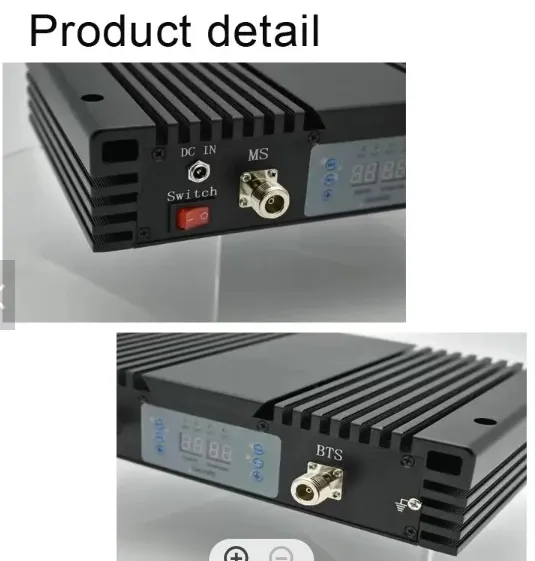

Product Gallery

Frequently Asked Questions (FAQ)

1. What frequencies does this booster support? This repeater supports a wide range of frequencies including GSM 900MHz, DCS/LTE 1800MHz, WCDMA 2100MHz, and more. Options for single, dual, and tri-band are available.

2. How much indoor area can one booster cover? Under ideal conditions without major obstructions, the booster can provide coverage for an area of approximately 3000 to 6000 square meters.

3. Is the installation process difficult? No, it is designed for easy installation. The smart digital display and LED panel allow users to set technical parameters efficiently without needing professional instruments.

4. What is the benefit of the ALC (Automatic Gain Control) function? The ALC function prevents the booster from over-saturation, ensuring high voice quality and protecting the cellular network from interference.

5. Does this device work for both voice and data? Yes, it is compatible with all cellular devices and supports voice calls, data (3G/4G), and video streaming.

6. Can I use this in different countries? Yes, we provide different single/dual/tri-band configurations to ensure compatibility with various national frequency standards worldwide.
