5g Signal Booster Dual Band Smart Control 3300-3600 MHz Network Repeater

1 / 5

5g Signal Booster Dual Band Smart Control 3300-3600 MHz Network Repeater

Customization:	Available
Type:	Signal Repeater
Transmission Medium:	Cable

Send Inquiry

Product Description

Basic Specifications

Standard:Standard

Protection:Lightning Protection

Condition:New

Output Power:27/33/43dB

Working Frequency:900/1800/2100/2600/850/1900

Transport Package:5PCS/Carton

Specification:Single / Dual / Tri band

Origin:China

Production Capacity:50000/Year

Product Description

The 2G 3G 4G All Frequency Dual Band Mobile Cell Phone Signal Network Booster Repeater is an ideal solution for wireless systems in small to medium-sized businesses and home users. This series is designed to enhance indoor wireless connectivity efficiently.

Parameter	Uplink	Downlink
Frequency Range (GSM 900)	890 - 915 MHz	935 - 960 MHz
Frequency Range (DCS 1800)	1710 - 1785 MHz	1805 - 1880 MHz
Gain	75dB±2dB	78dB±2dB
Output Power	20dBm±2dBm	23dBm±2dBm
Band Width	Wide Band
Manual Gain Control	31dB / 1dB Step
ALC / Noise Figure	>20dB	≤ 6dB
VSWR / Time Delay	≤ 2.0	≤ 1.5 μs
Impedance	50 ohm
Power Supply	AC 90-264V, DC 9V/5A

★

Key Features & Advantages

Cost-Effective: Reduces dropped calls in weak signal zones.

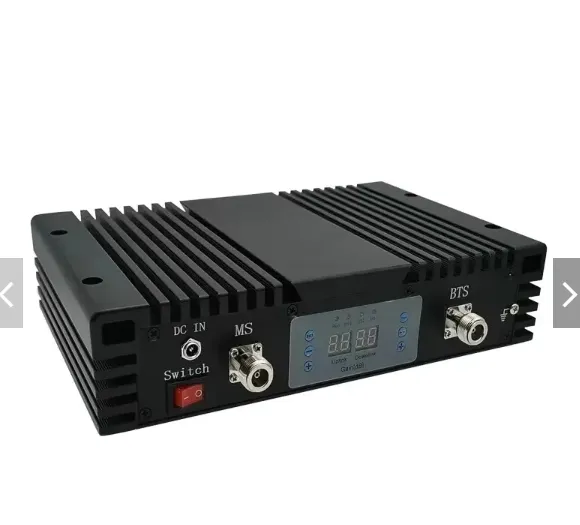

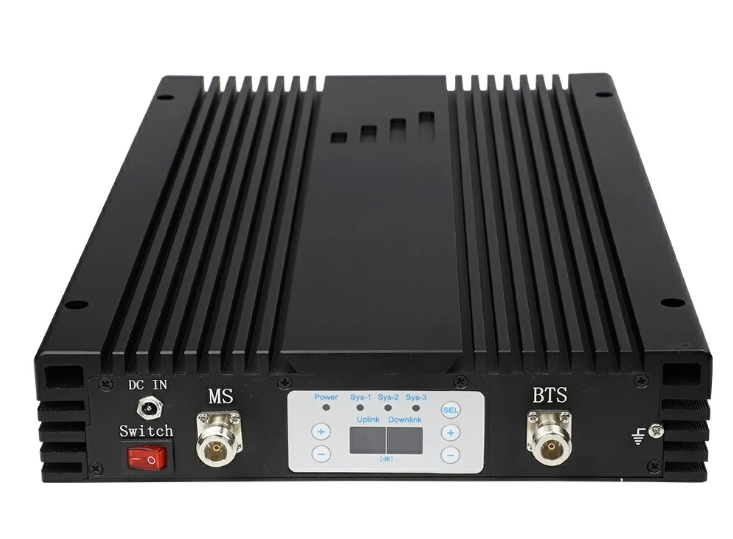

Intelligent Control: Features a Digital Display Panel for smart mode settings and manual gain adjustment.
Automatic Gain Control (AGC): Prevents saturation and maintains high voice quality without network interference.
Wide Coverage: Supports areas approximately 3000~6000m² (without obstructions).
Easy Installation: Compact design suitable for individual users; requires no professional instrumentation.
Safe & Reliable: No negative impact on human health with a MTBF of > 50,000 hours.

Available Frequency Configurations

Our boosters are customizable to meet global requirements:

Single Band: Tetra400, CDMA450, LTE800, GSM900, DCS1800, WCDMA 2100, etc.
Dual Band: GSM900+1800, GSM900+3G 2100, GSM850+PCS1900, etc.
Tri Band: GSM900+DCS1800+3G2100, LTE800+GSM900+1800, etc.
Quad/Quint Band: Comprehensive support for LTE800+GSM900+1800+2100+LTE2600.

📷

Product Gallery

Frequently Asked Questions

1. What is the maximum coverage area for this booster? Under optimal conditions without obstructions, the booster can cover an area of approximately 3000 to 6000 square meters.

2. Does it require professional technical knowledge to install? No, it is designed for easy installation by individual customers. The digital display panel makes setting technical parameters simple and efficient.

3. What does the AGC function do? Automatic Gain Control (AGC) prevents the booster from over-saturation, ensuring high voice quality and protecting the cellular network from interference.

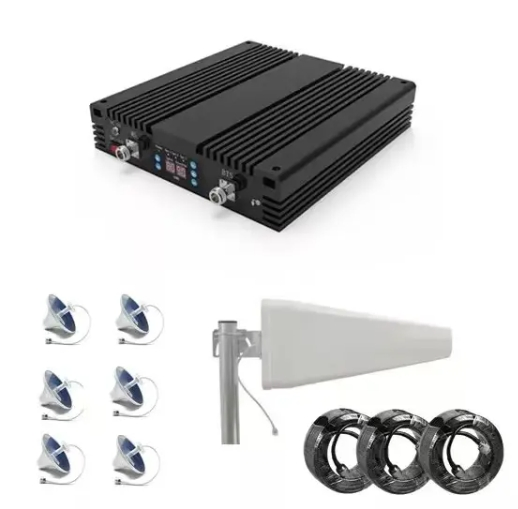

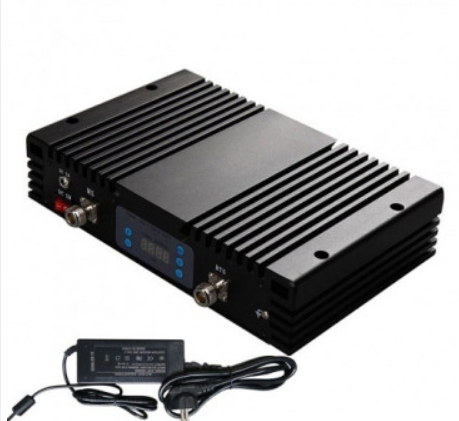

4. What is included in the standard package? The package includes the booster unit, a power supply adapter (AC90-264V), an AC power cord, an installation kit, and a user manual.

5. Can this booster support 4G and 5G data? Yes, the booster is designed to support various cellular devices for voice, data, and video across multiple frequencies including 2G, 3G, and 4G LTE.

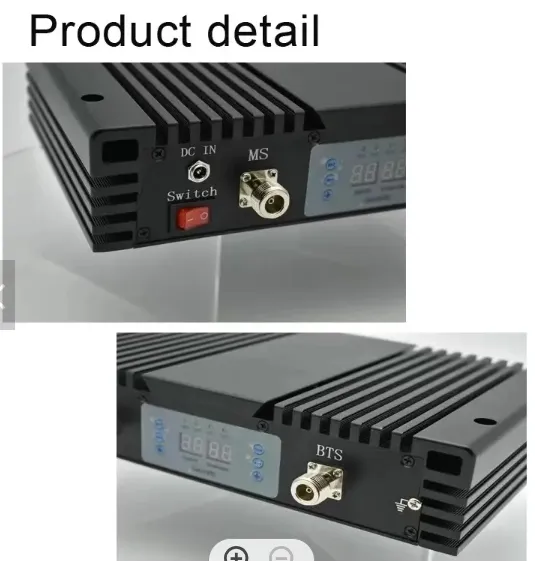

6. How can I monitor the booster status? The unit features a Digital Display Panel and LED indicators (Power and Alarm) to show normal operation or potential issues like self-oscillation.
