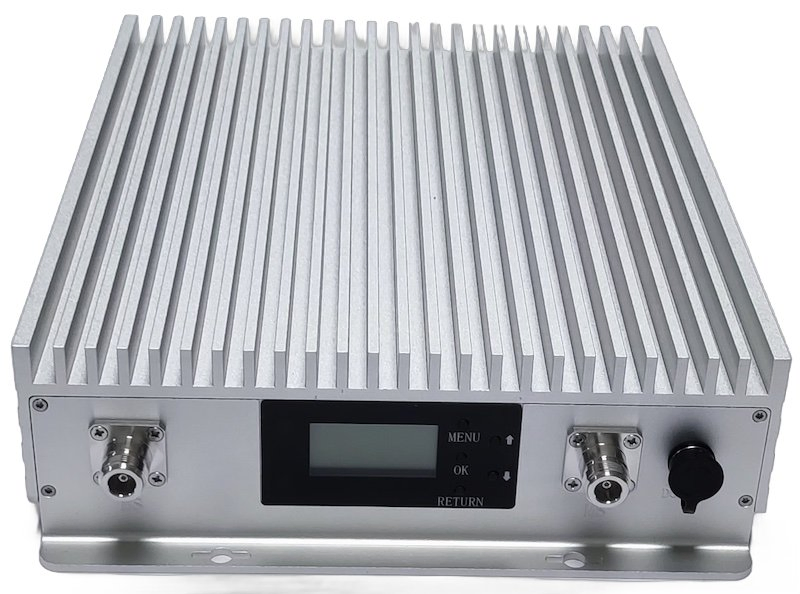

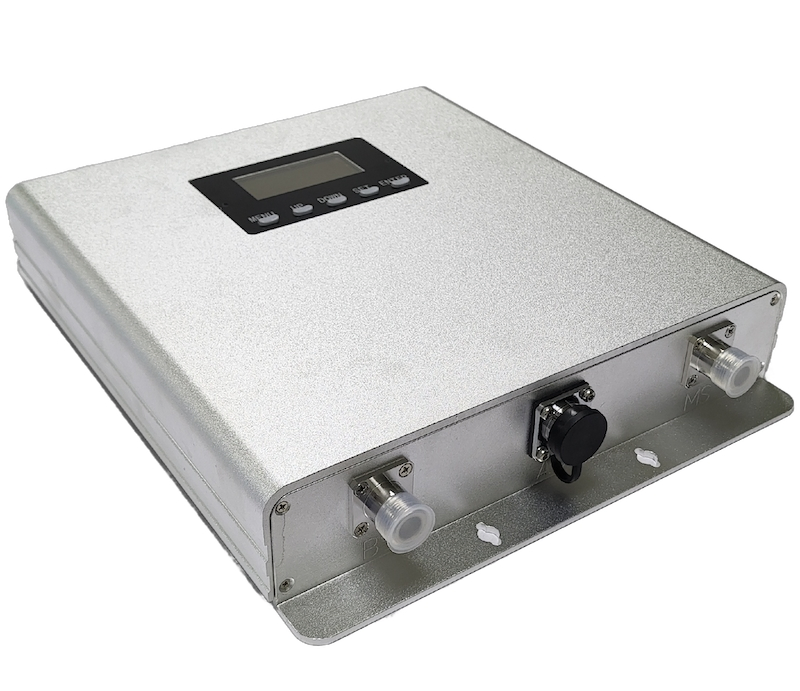

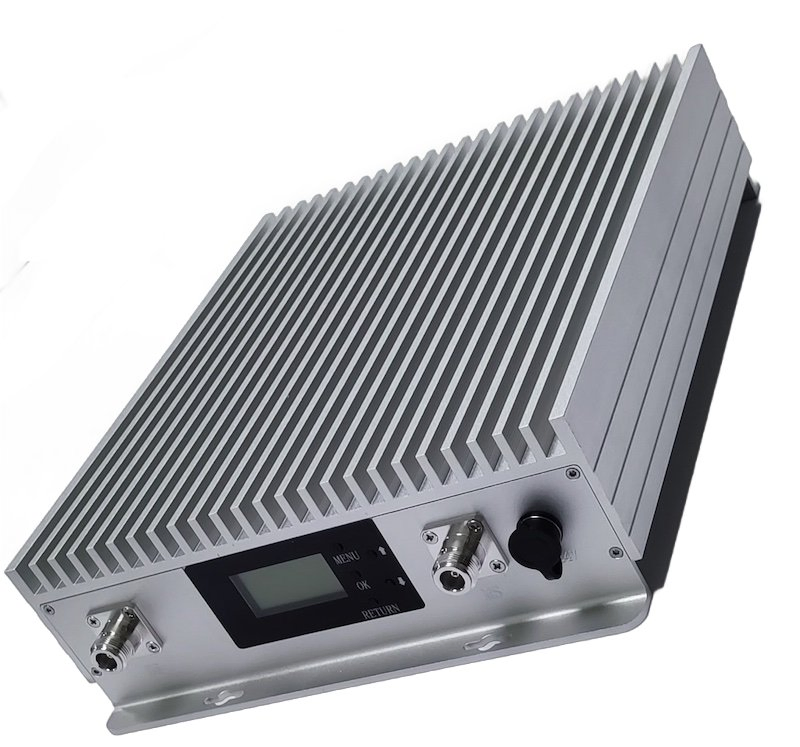

This high power RF repeater is a smart signal booster designed to improve indoor voice and data coverage in up to four bands for 2G/3G/4G/5G for large scale buildings and challenging environments.
1. Wideband and Channelized Capability: Specific sub-bands within a band can be selected and filtered for amplification.
2. High Output Power: 27dBm for downlink and up to 23dBm for uplink output power.
3. Independent Configuration: Each band is independently configurable to function in challenging environments.

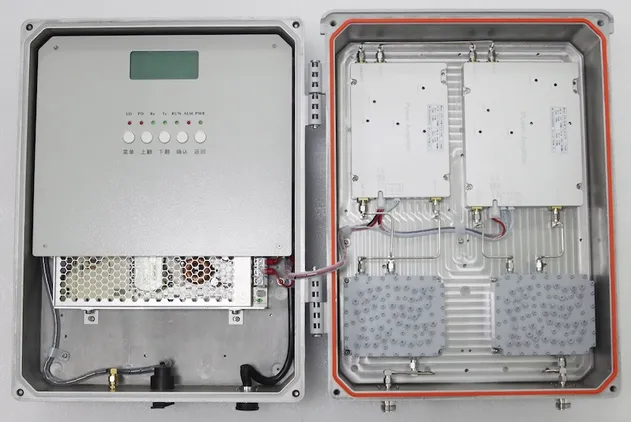

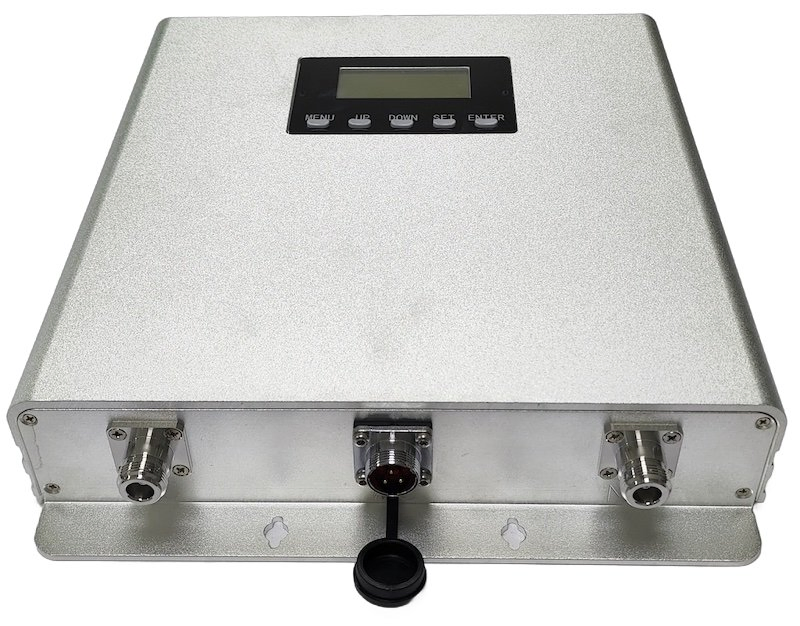

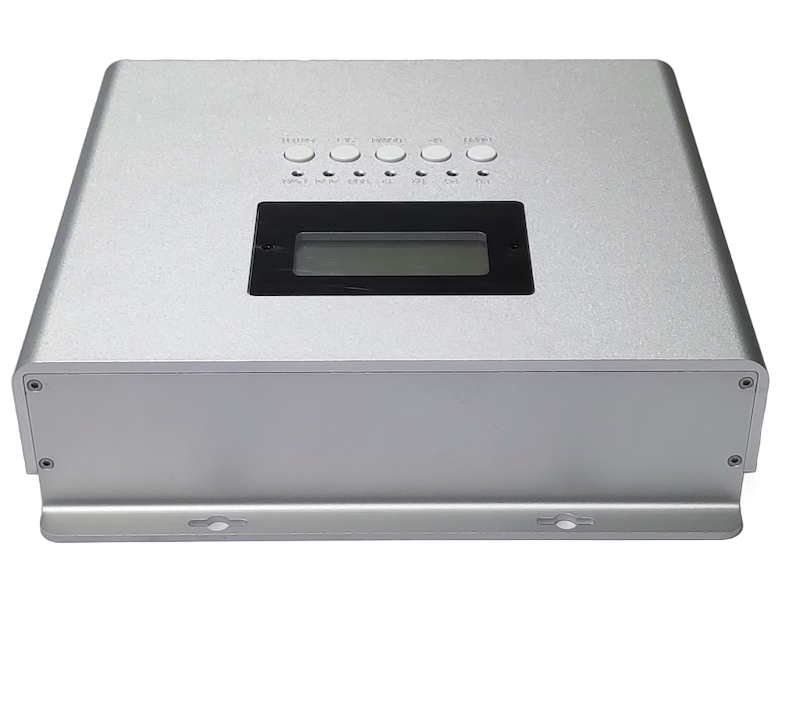

4. Flexible Management: LCD+keypad and WiFi with web browser management terminal method.
5. Cloud NMS Support: Cloud-based system can monitor and control the repeater everywhere via web browser.
| Bands Support | VHF, UHF, N71, N28, N5, N20, N8, N66, N3, N1, N40, N7, N78, N77, N79 |
| Network Support | LMR/2G/3G/4G/5G |
| Network Protocols | TETRA/P25/DMR/GSM/WCDMA/LTE/NR/WiFi |
| Duplex Mode | FDD and TDD |
| Maximum Output Power | 43dBm |
| System Gain | 85-95dB |
| Gain Control (MGC/AGC) | ≥30dB |
| Noise Figure (uplink) | ≤6dB |
| System Delay | <1μs @wideband, ≤6μs @Digital Channelized |
| Power Supply | AC100-240V, 50/60Hz |
| Dimension | 500mm*440mm*187mm |
Standard Warranty: 12 months (Extended up to 36 months optional).
Global Support: Technical assistance and spare parts supply provided globally.
Training: On-site or remote operation and maintenance training available.
Certified with ISO 9001, CE, and GOST. Offering reliable machinery backed by R&D innovation and strict quality control with exports to over 50 countries.
