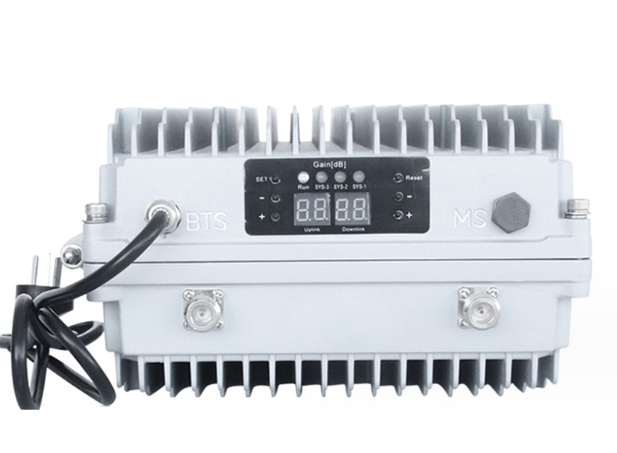

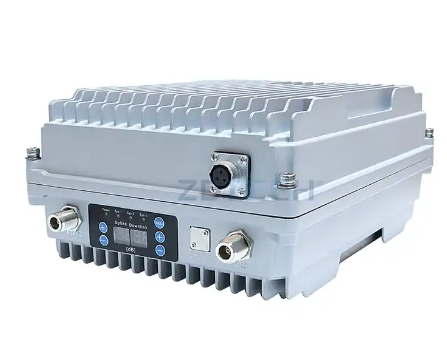

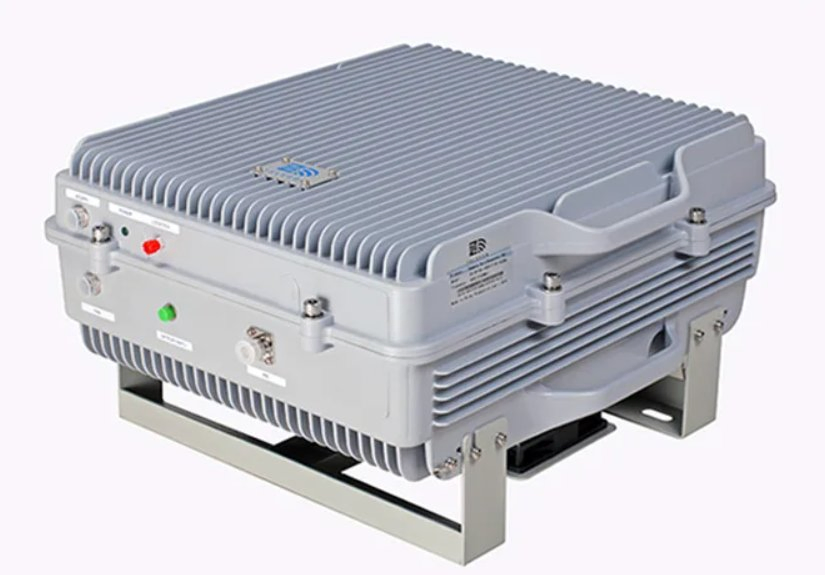

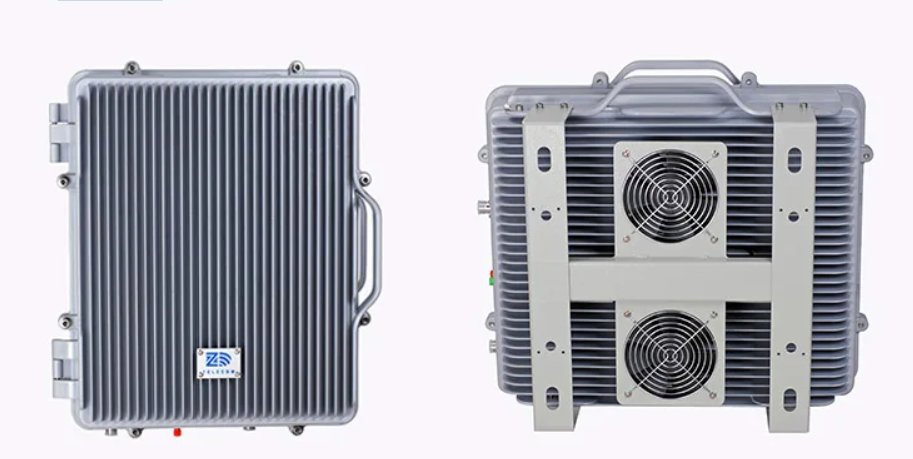

Customized Dual-Band Mobile Network Booster Cell Phone Signal Repeater

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
HPC-B1B8&90C
Protection
with Lightning Protection
Certification
ISO
Condition
New
Power Supply
100-264V
Package
5PCS/Carton

Product Introduction

2G 3G 4G All Frequency Dual Band Manufacturer Mobile Cell Phone Signal Network Booster Repeater

The Indoor Signal Repeater series is an ideal solution for wireless systems in small/medium businesses and home users looking to enhance indoor wireless connectivity. It connects via coaxial cable to a Donor Antenna and Service Antenna. The Donor Antenna is placed outside the building where it has easy access to BTS signals, and the Service Antenna is placed indoors to extend radio coverage to blind areas.

Parameter Uplink Downlink
Frequency Range (GSM 900+DCS 1800) 890-915 / 1710-1785MHz 935-960 / 1805-1880MHz
Gain 75dB±2dB 78dB±2dB
Output Power 20dBm±2dBm 23dBm±2dBm
Band Width Wide Band
Manual Gain Control 31dB / 1dB Step
ALC / VSWR >20dB / ≤ 2.0
Time Delay ≤ 1.5 μs
RF Connector N-Female

Core Features & Advantages

  • Digital Display Panel: Intelligent mode setting allows users to choose gain and working systems efficiently via the LED panel.
  • Smart AGC Function: Automatic Gain Control avoids booster oversaturation, maintaining high voice quality and preventing network interference.
  • Broad Coverage: Capable of covering approximately 3000~6000m² in open indoor environments.
  • Multi-Device Support: Compatible with all cellular devices for voice, data, and video transmission.
  • Self-Installation: Compact size and easy setup kit allow individual customers to install without professional instruments.
  • Health Safe: Improved signal strength reduces phone radiation, with no negative impact on human health.
📷

Product Display

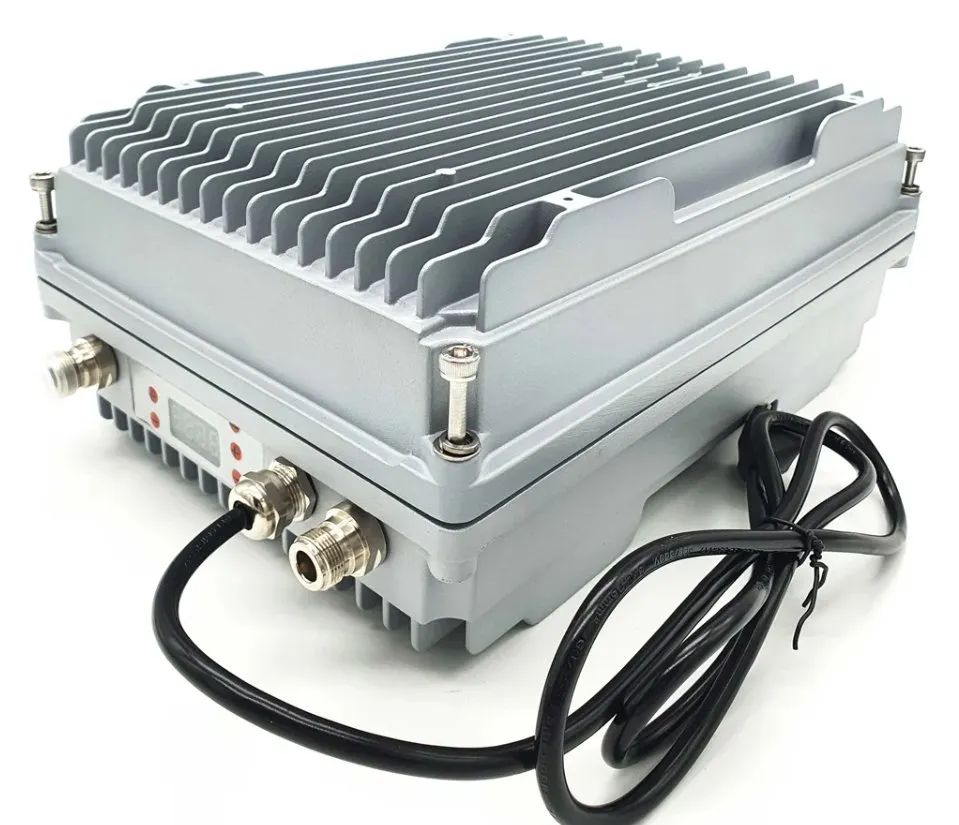

Mobile Network Booster

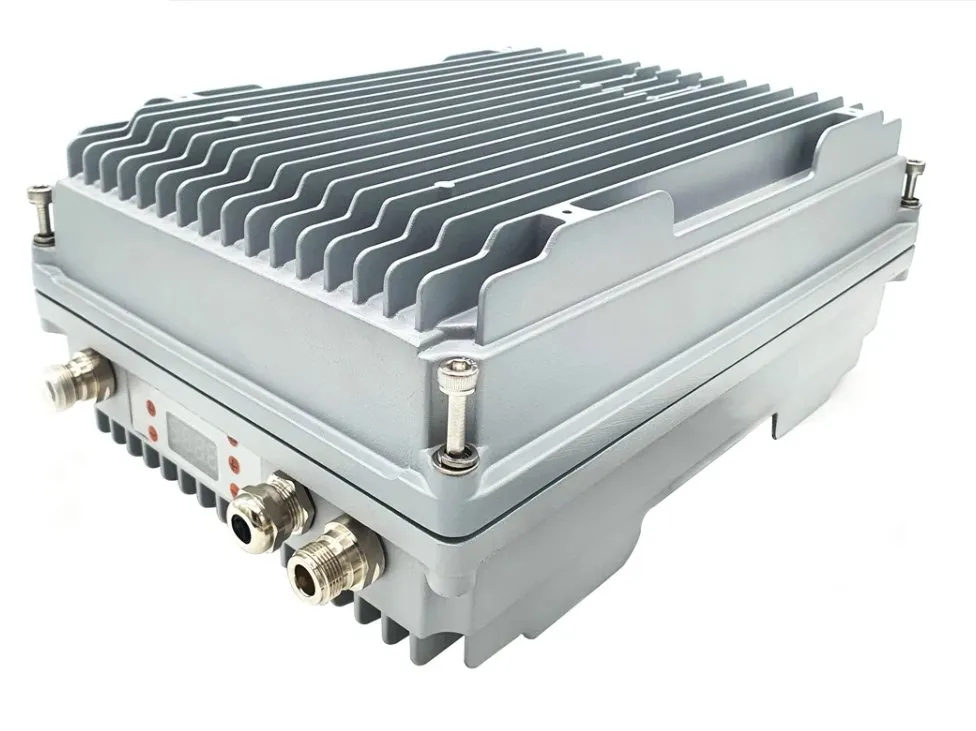

Cell Phone Signal Repeater

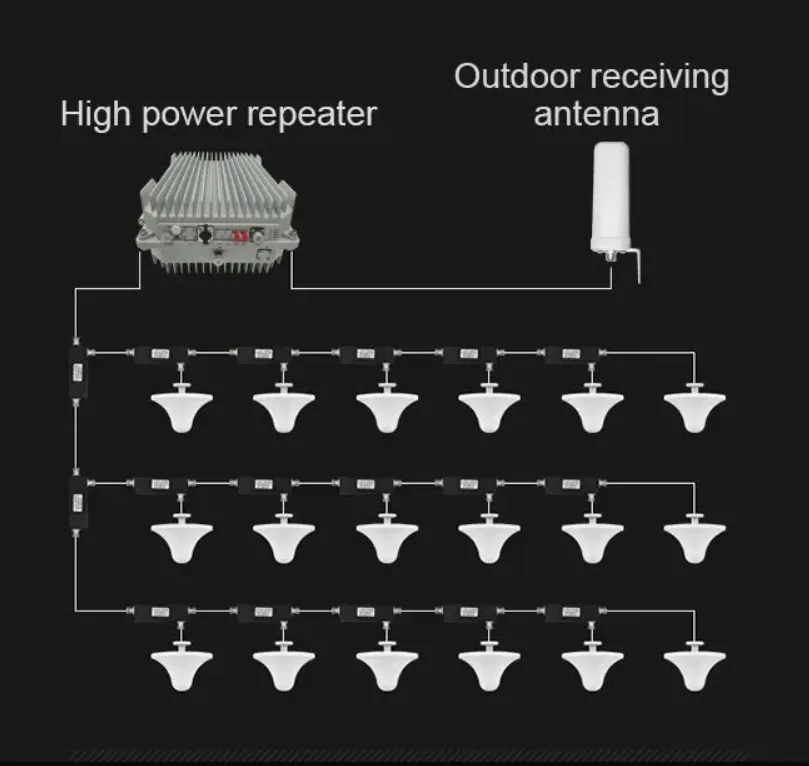

Signal Booster Setup

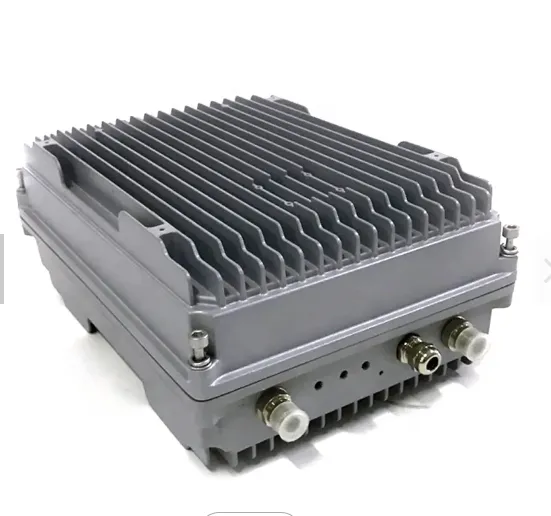

Dual Band Repeater

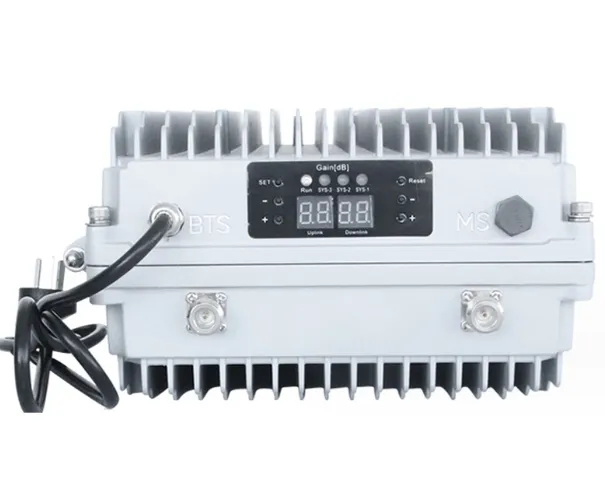

Network Booster Diagram
?

Frequently Asked Questions

What frequencies does this booster support?
This model supports various combinations including Single, Dual, Tri, Quad, and Quint bands, covering GSM 900, DCS 1800, WCDMA 2100, and LTE frequencies depending on your customization needs.
Is the booster difficult to install for a home user?
No, it features a plug-and-play design. The package includes an installation kit and user manual, allowing users to set it up without professional knowledge.
How does the Digital Display Panel help?
The LED Digital Panel allows you to monitor and set technical parameters simply and efficiently, making it easier than traditional DIP switches to adjust gain and system settings.
What is the coverage area of this device?
It can cover an area of approximately 3000 to 6000 square meters, provided there are no major physical obstructions or blocks.
Does the booster interfere with the local base station?
The device includes Automatic Gain Control (AGC) and a high linear design to ensure low interference to the BTS (Base Transceiver Station).
What is included in the standard package?

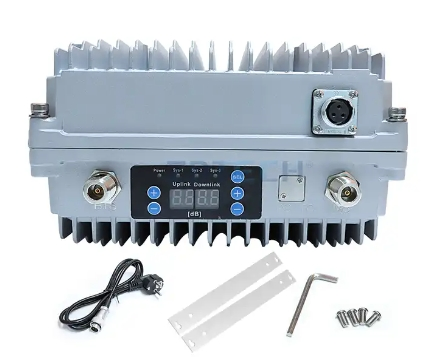

The standard package comes with the Signal Booster, a power supply adapter (AC 90-264V), an AC power cord tailored to your region, an installation kit, and a user manual.
