2g 3G 4G All Frequency Dual Band Manufacturer Mobile Cell Phone Signal Network Booster Repeater

Customization:	Available
Type:	Signal Repeater
Transmission Medium:	Cable

Send Inquiry

Product Description

📋 Basic Information

Model NO.

LY-GDW27

Standard

Protection

with Lightning Protection

Condition

New

Output Power

27/33/43dB

Frequency

900 1800 2100 2600 850 1900

Package

5PCS/Carton

Specification

Single / Dual / Tri band

Origin

China

Capacity

50000/Year

📡 Product Description

2G 3G 4G All Frequency Dual Band Mobile Cell Phone Signal Network Booster Repeater

Frequency Range	Uplink	Downlink
GSM 900MHz + DCS/LTE 1800MHZ	890 - 915 / 1710 - 1785MHz	935 - 960 / 1805 - 1880MHz
Gain	75dB±2dB	78dB±2dB
Output Power	20dBm±2dBm	23dBm±2dBm
Band width	Wide Band
Manual Gain Control	31dB / 1dB Step
ALC	>20dB
Ripple in Band	≤ 8dB
Noise Figure	≤ 6dB
VSWR	≤ 2.0
Intermodulation	≤ -40dBc
Spurious Emission	9KHz~1GHz	≤ -36dBm
Spurious Emission	1~12.75GHz	≤ -30dBm
Time Delay	≤ 1.5 μs
Frequency stability	≤ 0.01ppm
MTBF	> 50000 hours
Impedance	50 ohm
Power Supply	AC 90-264V, DC 9V/5A

📖 Product Manual

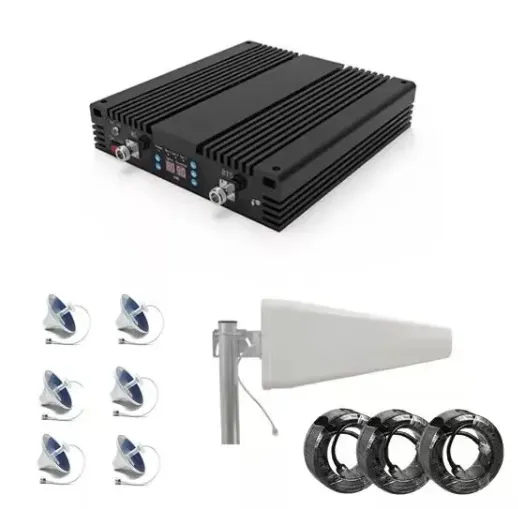

Indoor Signal Repeater (Signal Booster) series is an ideal solution for wireless systems in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to a Donor Antenna and Service Antenna. The Donor Antenna is placed outside where it has easy access to BTS signals, and the Service Antenna is placed in the building to extend coverage to blind areas. Automatic Gain Control (AGC) prevents saturation, maintaining high voice quality and avoiding network interference. Its super compact design and easy installation make it ideal for individual customers.

⭐ Key Features

1. Cost Effective
Reduces dropped calls in weak signal zones significantly.

2. Compact & Efficient
Low power consumption and easy to install with great coverage.

3. Wide Coverage
Covers approximately 3000~6000m² without obstructions.

4. High Linear Design
ALC function ensures low interference to base stations.

5. Universal Support
Works with any cellular device (voice, data, and video).

6. Digital Control
Equipped with a digital display panel for intelligent mode setting.

📦 Standard Package

🔹1x AC90-264V, DC 9V/5A power supply adapter

🔹1x AC power cord (EU/US/UK/SA/China standard)

🔹1x Installation kit

🔹1x User manual

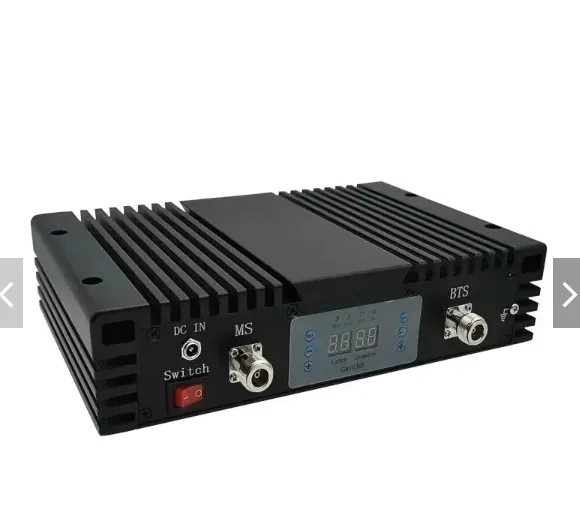

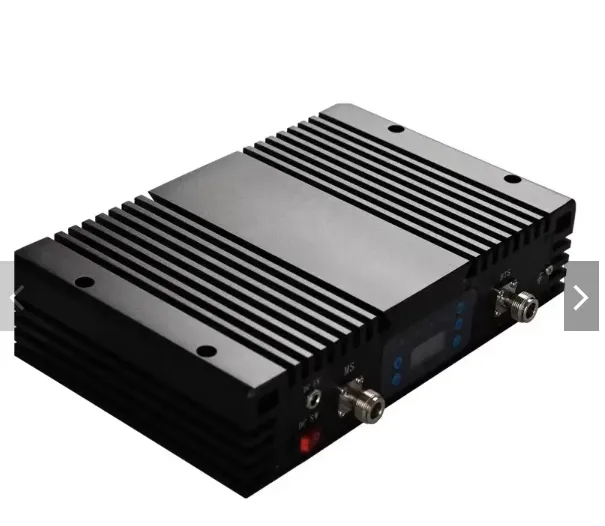

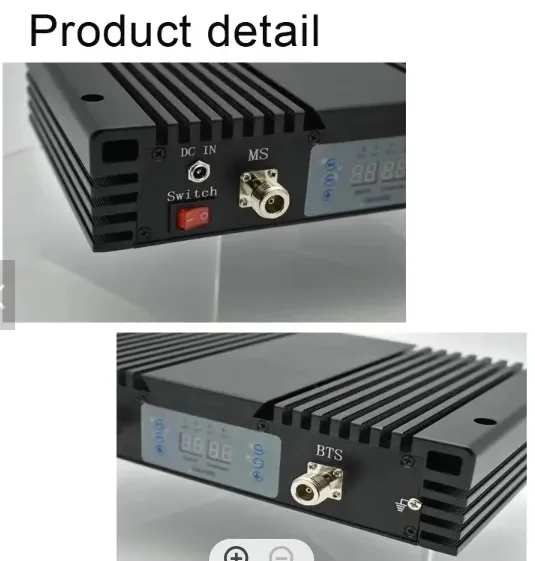

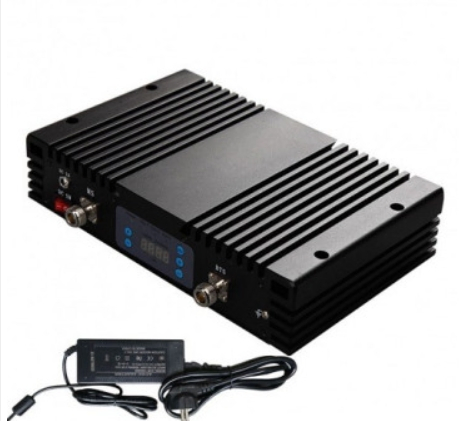

📷 Product Gallery

❓ Frequently Asked Questions

Q1: Which frequencies does this booster support? A: It supports a wide range of frequencies including 900, 1800, 2100, 2600, 850, and 1900 MHz. Options for single, dual, tri, quad, and quint bands are available.

Q2: What is the effective coverage area? A: Under optimal conditions without obstructions, the booster can cover an area of approximately 3000 to 6000 square meters.

Q3: How does the Automatic Gain Control (AGC) work? A: The AGC automatically adjusts the gain to prevent the booster from over-saturation, ensuring high voice quality and minimal network interference.

Q4: Is the installation process complicated? A: No, it is designed for easy installation. Individual users can set it up without deep professional knowledge or specialized instruments.

Q5: Can I manually adjust the settings? A: Yes, the device features a Digital Display Panel and Manual Gain Control (MGC) switches for easy and efficient parameter adjustments.

Q6: What is the purpose of the LED indicators? A: The Power LED indicates system status, while the Alarm LED (Red/Green) warns of self-oscillation or excessively strong input signals.
