GPS Manufacturer Topten Factory 4G LTE Car GPS Tracker Gt50-Wy Smart Vehicle Terminal Tracker GPS Car Tracking Online with Platform

Basic Information

Model NO.

GT50-Wy

Certification

RoHS, FCC, CE

Warranty

1 Year

Waterproof

IP65

Feature

Realtime Tracking

Size

Mini Size

Battery

Built-in 75mAh

OTA Function

Remote Firmware Upgrade

Specification

110x67x15mm

Origin

China

HS Code

8512301200

Production

50,000 PCS/Month

Product Description

4G Gps Tracker for Car & Motorcycle Anti-theft With SOS Engine Shut Off

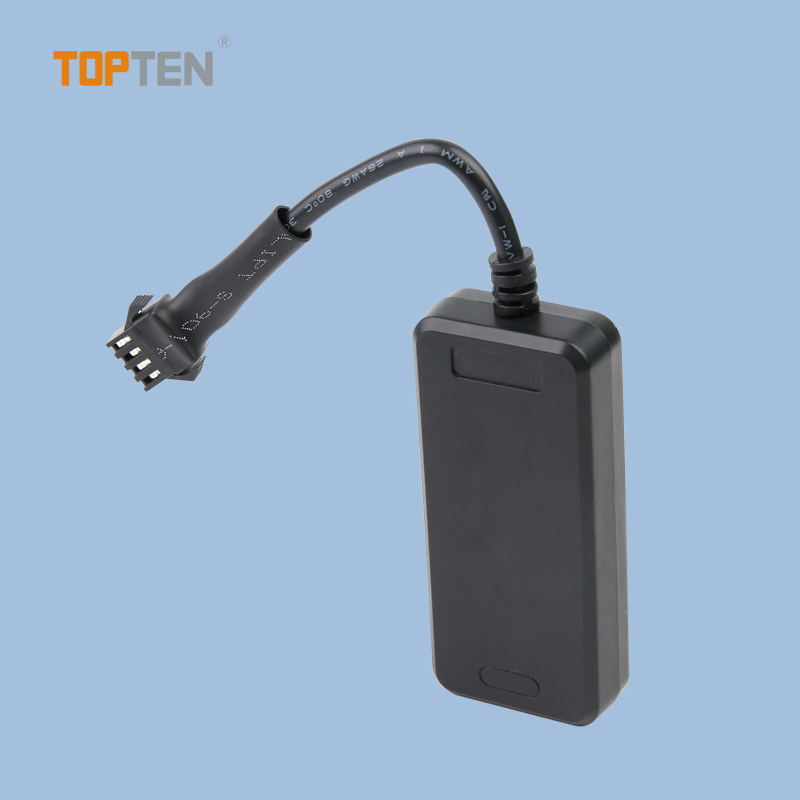

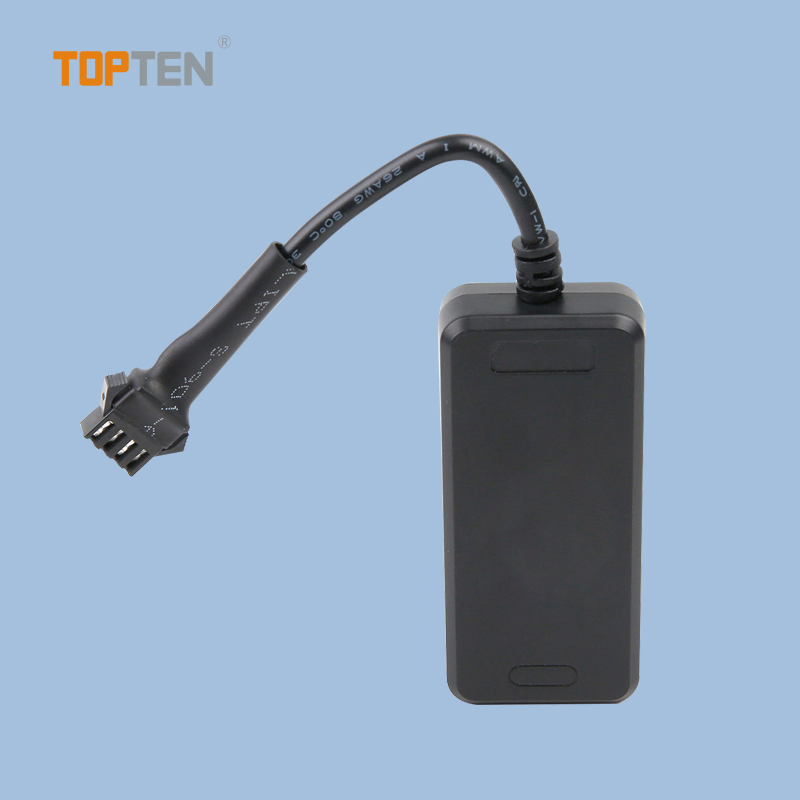

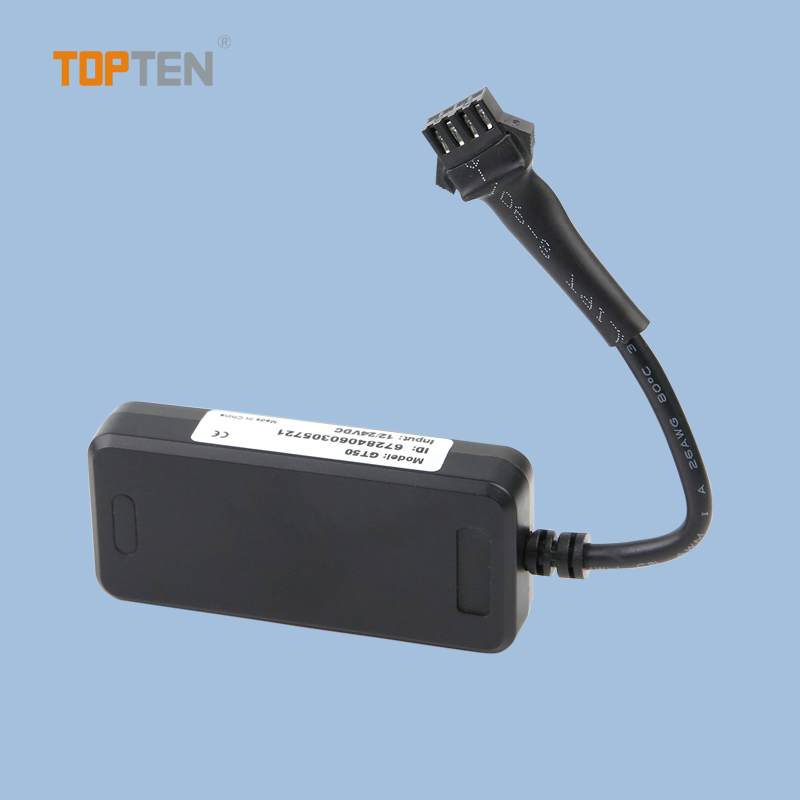

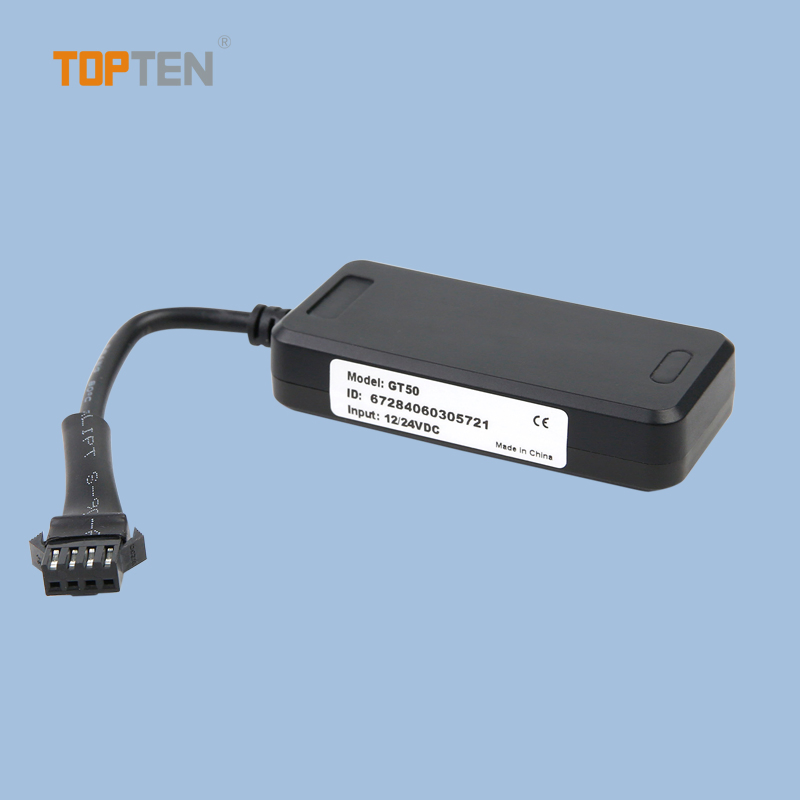

GT50 GPS Tracker is a cost-effective solution for security & real-time tracking. Its compact size and waterproof design make it ideal for motorcycles and vehicles.

4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
2G GSM: 850Mhz/ 900Mhz/ 1800Mhz/1900Mhz (Quad-band)

Key Features

Track on command or by time interval via SMS/GPRS

Arm/disarm by SMS or phone call

Physical address check (City, Street name)

Real-time data: Latitude, longitude, speed, direction & odometer

Data logger stores up to 1,760 waypoints

Comprehensive Alarms: Over-speed, Movement, Vibration, Trailer, Turn over

OTA Function: Upgrade firmware remotely over the air

Smart engine ON/OFF status detection

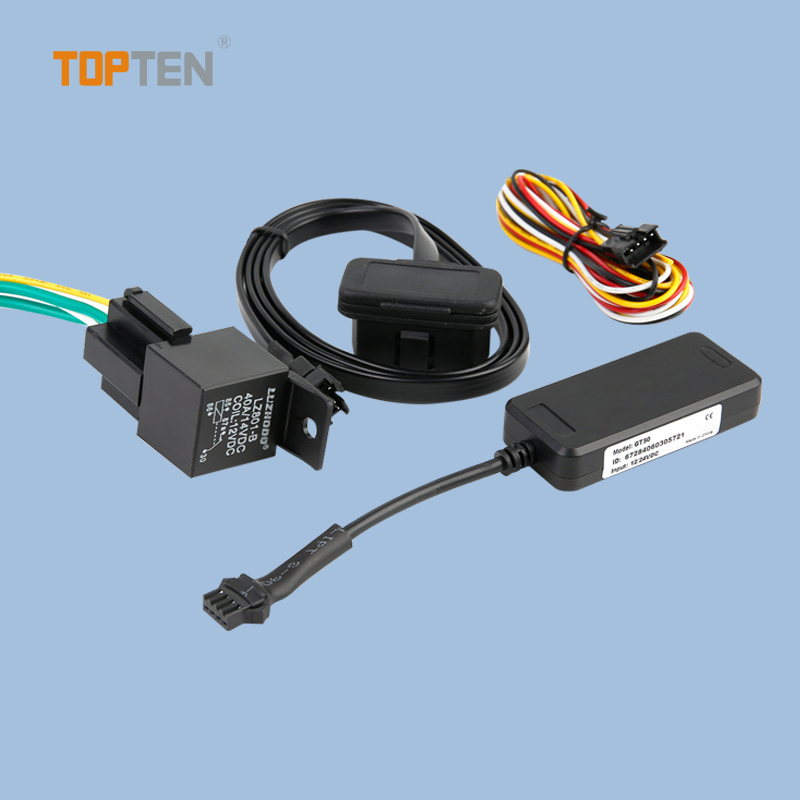

Remote engine cut-off to stop vehicle safely

Wide working voltage: 10V-60VDC

Water-proof design with hardware watchdog

A-GPS function for faster signal acquisition

Technical Specifications

Working Voltage	+10.0 ~ +60VDC
Power Consumption	Standby: 27mA; Working: 58mA; Deep Sleep: <13mA
Inside Backup Battery	Rechargeable 3.7V 75mAh Li-ion battery
Main Unit Size	68 * 31 * 12 (mm)
Weight	24g
Frequencies	2G: Quad-band; 4G: LTE-FDD (Multiple Bands) & LTE-TDD
GPS Chip	Embedded (Beidou & GPS supported)
Receiving Sensibility	-162dBm
Positioning Accuracy	≤10m (wide-open area)
Start Time	Hot: 1s; Warm: 2s; Cold: 40s (average)
Operating Temp	-20 ~ 85 ºC

Frequently Asked Questions

Does this device support 4G networks globally?

Yes, it supports a wide range of 4G LTE-FDD bands (B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66) and 2G Quad-band frequencies, making it compatible with most carriers worldwide.

Is the tracker truly waterproof?

The device features an IP65 water-proof design, which protects it against dust and low-pressure water jets, making it perfectly suitable for motorcycle installations.

How can I stop the vehicle if it is stolen?

The GT50 allows you to cut off the engine remotely via SMS or GPRS commands, enabling you to safely stop the vehicle in an emergency.

What happens if the vehicle's main battery is disconnected?

The device has a built-in rechargeable 75mAh backup battery. If the car battery is cut off, the system will immediately send a power failure alarm to your mobile or platform.

Can the firmware be updated without removing the device?

Yes, the device supports OTA (Over-The-Air) functionality, allowing you to upgrade the firmware remotely through the cellular network.

What is the working voltage range?

The tracker supports a wide voltage range from 10V to 60VDC, which makes it compatible with motorcycles, standard cars, and even large trucks.
