| Model NO. | GW-23LDL-K | Standard | Standard |
|---|---|---|---|
| Lightning Protection | With Lightning Protection | Certification | ISO, RoHS, CE |
| Condition | New | Coverage | 1500-2500sqm |
| Power | 23dBm | Gain | 75dB |
| Power Supply | AC 100-240V, DC 9V 5A | RF Connector | N-Female |
| Gross Weight | 3.5kg | Feature | Alc, AGC, Auto Shut off |
| Transport Package | Neutral Packing | HS Code | 8543709200 |
| Production Capacity | 20000PCS/Month | ||

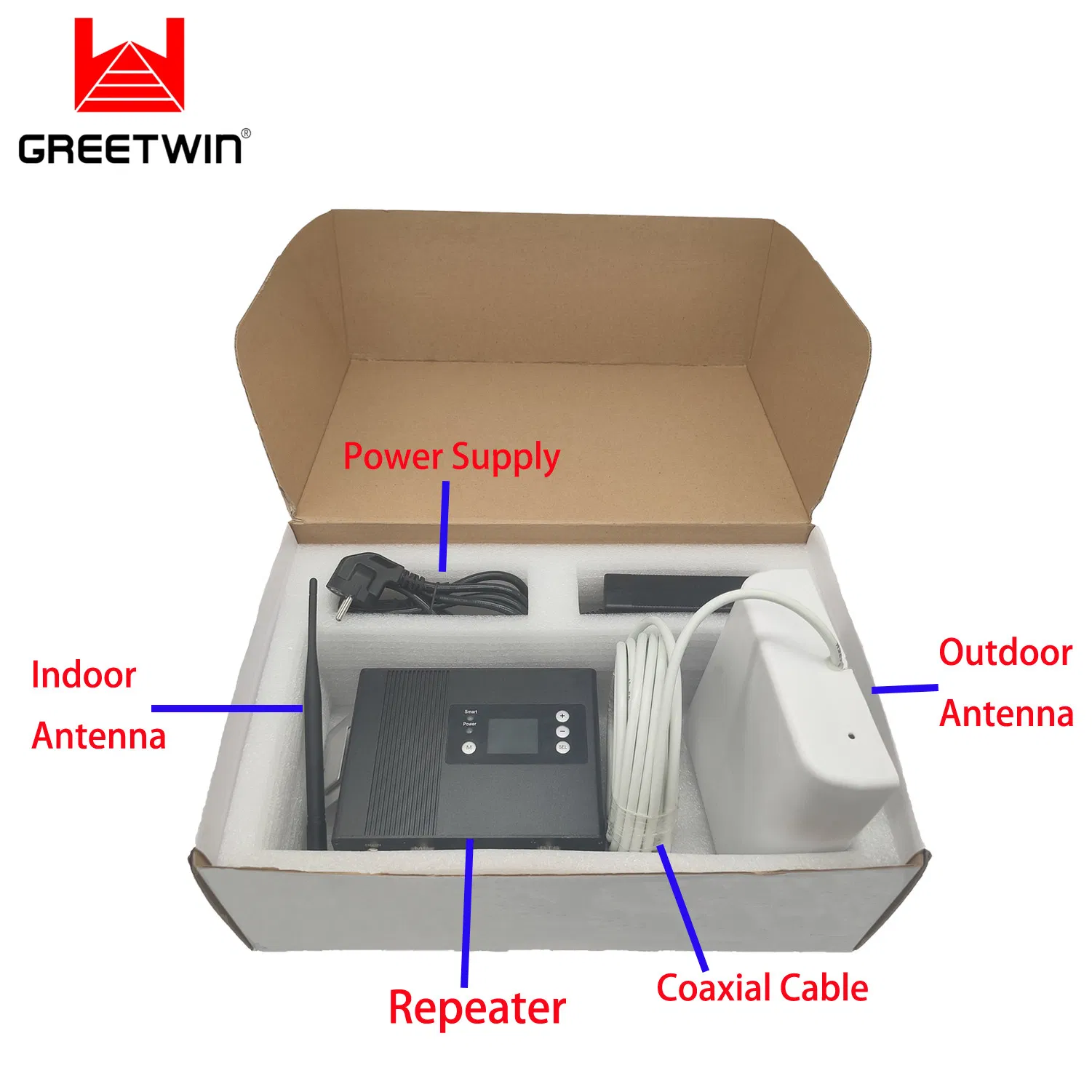

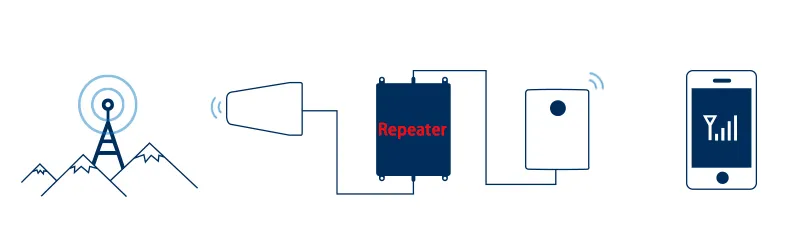

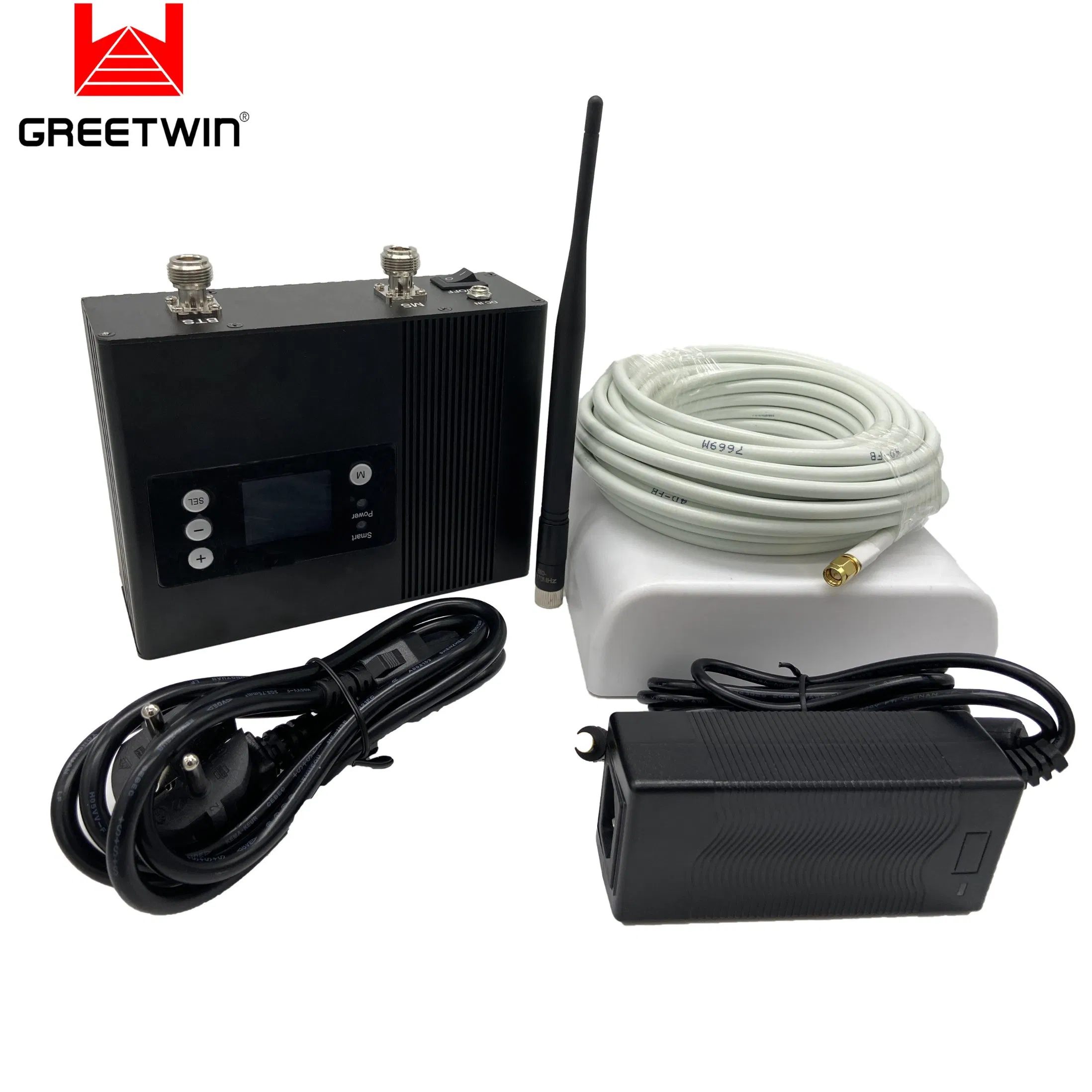

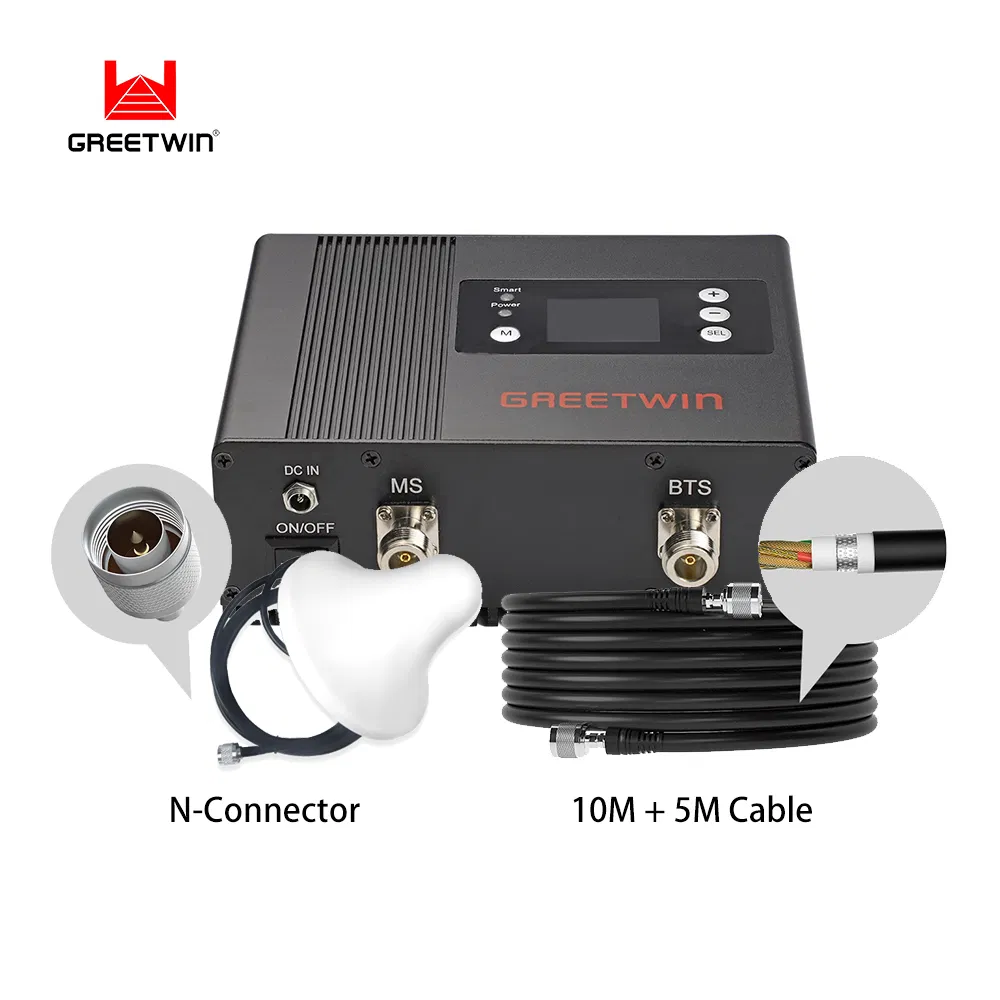

A Tri-band high gain cellular network repeater (also known as amplifier or booster) is a wireless system designed to enhance cellular reception. It consists of three main elements: an exterior antenna, a high-performance amplifier, and an interior antenna.

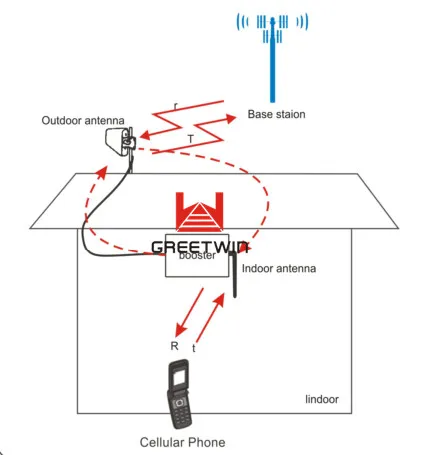

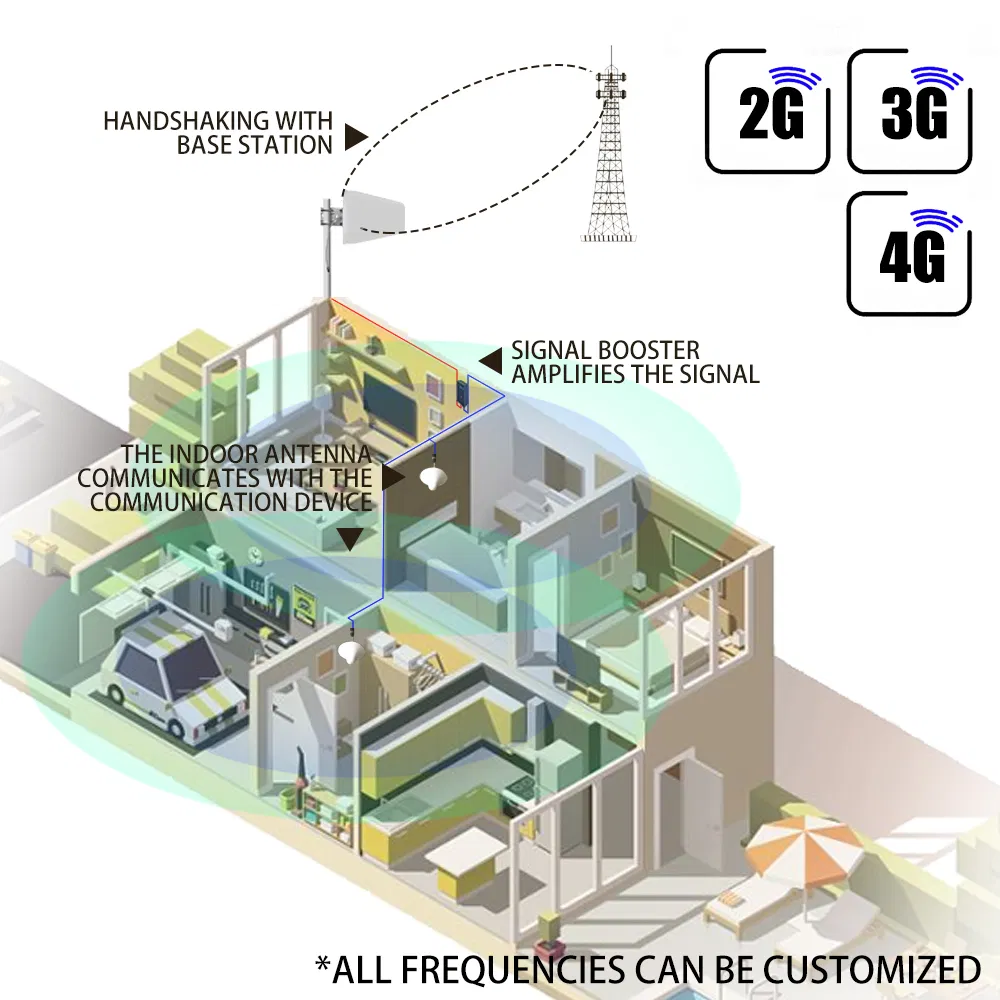

The system operates by receiving the signal from the cellular tower via the outside antenna, amplifying it through the repeater unit, and rebroadcasting it to areas with weak or no signal. This solution effectively reduces dropped calls and enhances data speeds for homes, offices, and workstations.

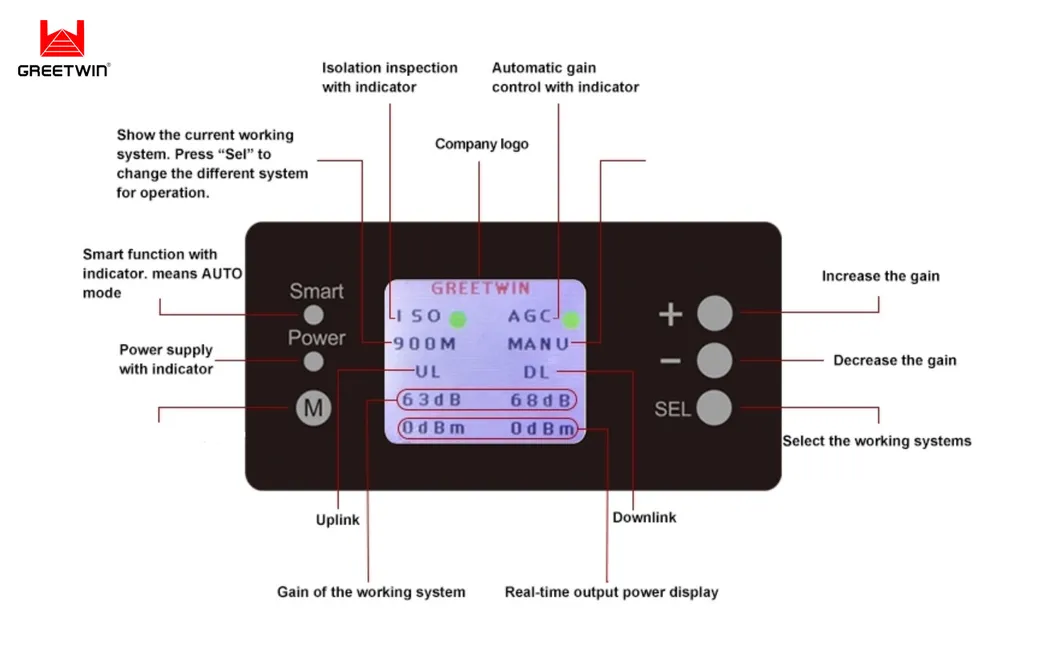

Features an intelligent mode setting activated via the front LED panel. Users can easily adjust gain and choose working bands, offering a safer and more effective setup compared to traditional DIP switches.
The 31dB ALC is used to maintain steady output power even when the donor source signal fluctuates, ensuring stable performance.
| Frequency Range | Uplink | Downlink |
|---|---|---|
| LTE B20 | 832-862MHz | 791-821MHz |
| DCS | 1710-1785MHz | 1805-1880MHz |
| LTE B7 | 2500-2570MHz | 2620-2690MHz |
| Gain | 70dB±2dB | 75dB±2dB |
| Output Power | 20dBm±2dBm | 23dBm±2dBm |
| ALC / Bandwidth | ≥ 25dB / Wide Band | |
| Noise Figure / VSWR | ≤ 6dB / ≤ 2.0 | |
| MTBF / Impedance | > 50000 hours / 50Ω | |
Yes, we offer samples for all models to ensure the quality meets your requirements before bulk commitment.
Please reach out with your location details. We will assist in identifying the correct frequency bands required for your specific region.
Yes, we can customize brand logos, specific colors, and specific frequency combinations to suit your market needs.
Samples take 3-5 business days. Small orders under 50 pcs take about 7 days, while larger orders (50-200 pcs) take approximately 15 days.
We support T/T, Western Union, PayPal, and Credit Cards. We highly recommend Trade Assurance for the most secure transaction.
Yes, effective coverage is directly related to the strength of the external donor signal. We can provide optimized solutions based on your specific local conditions.
