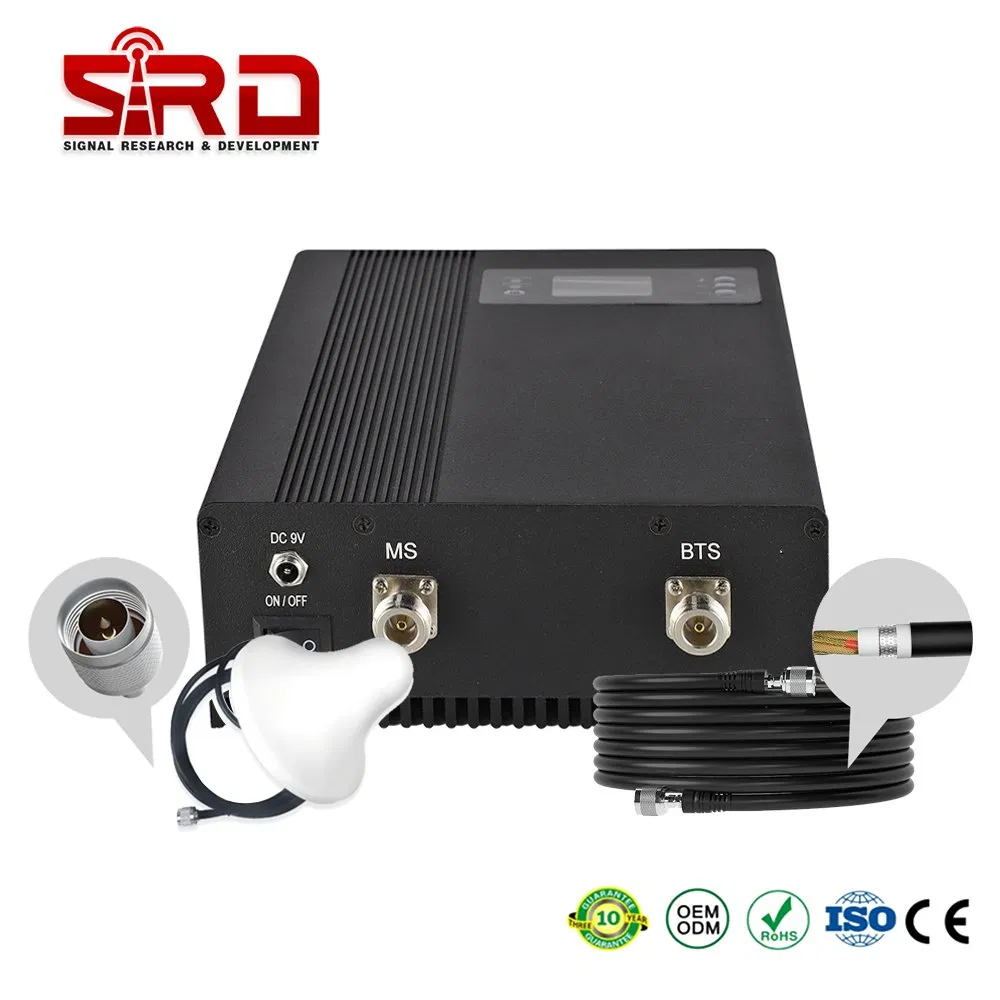

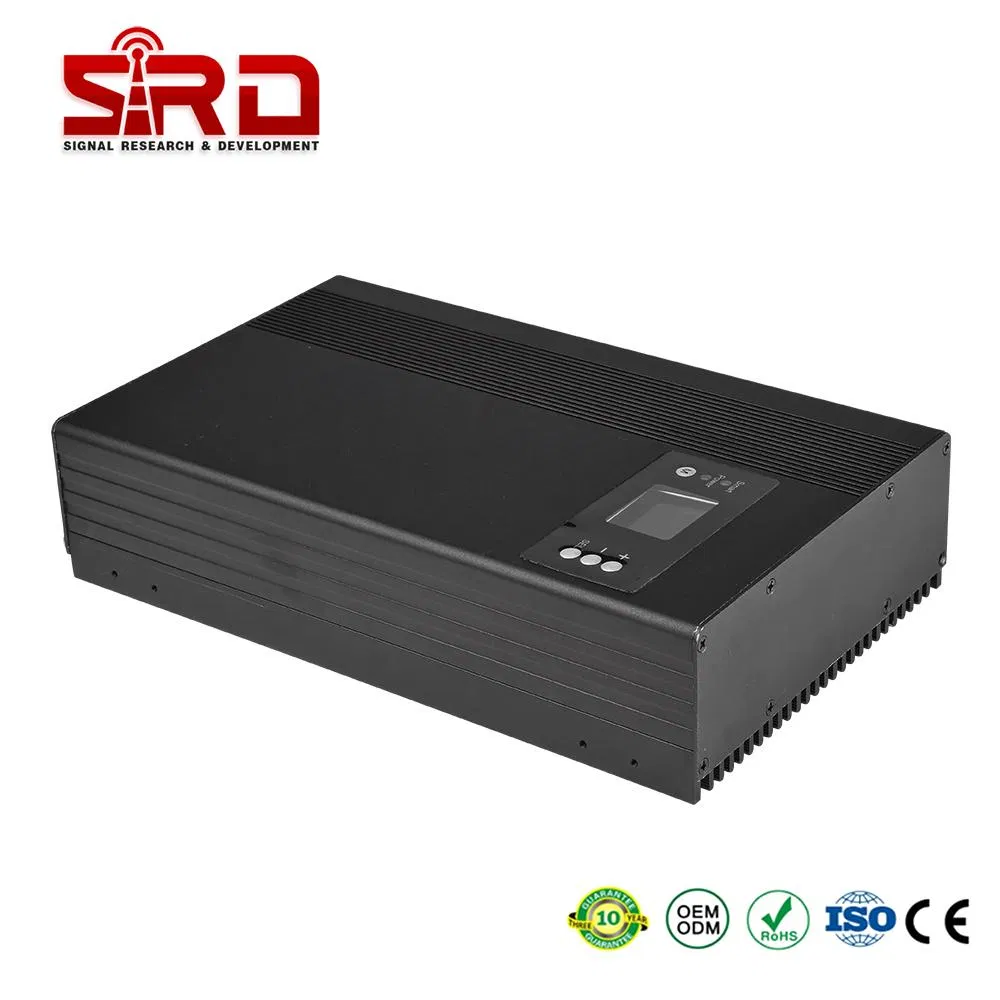

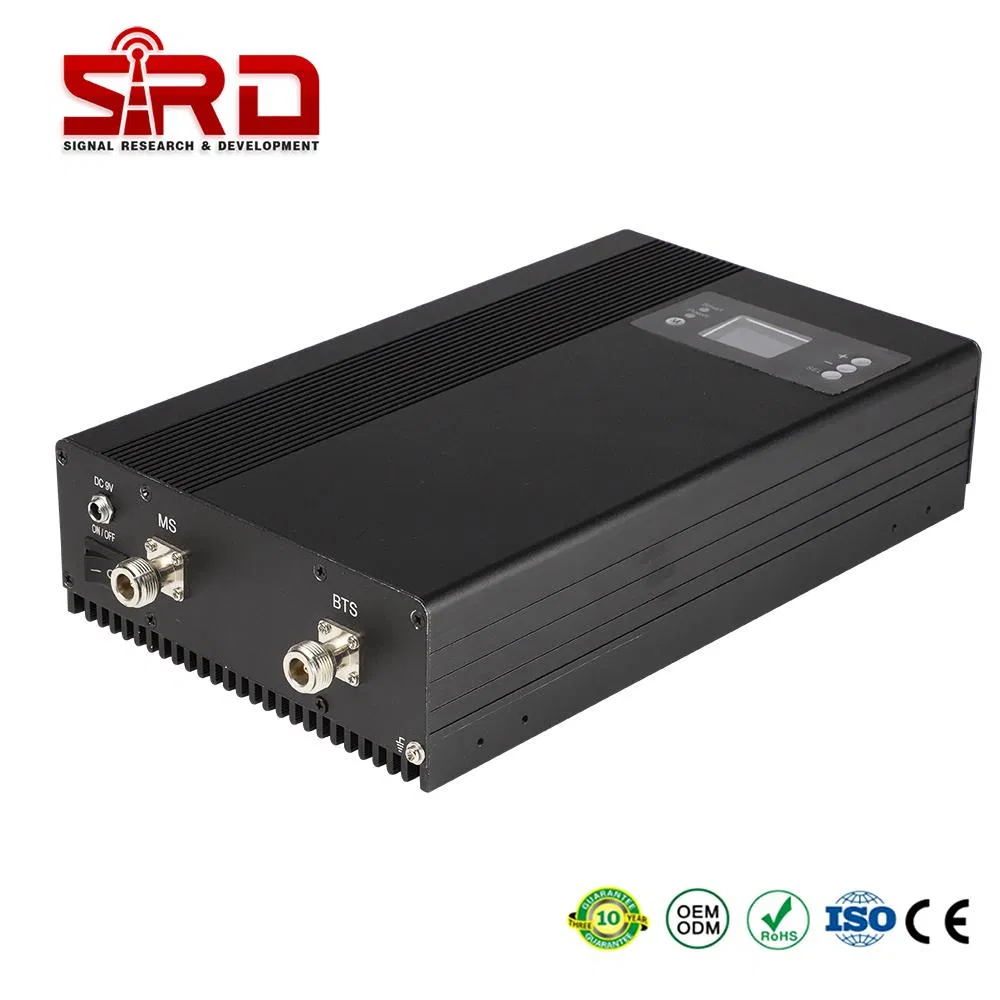

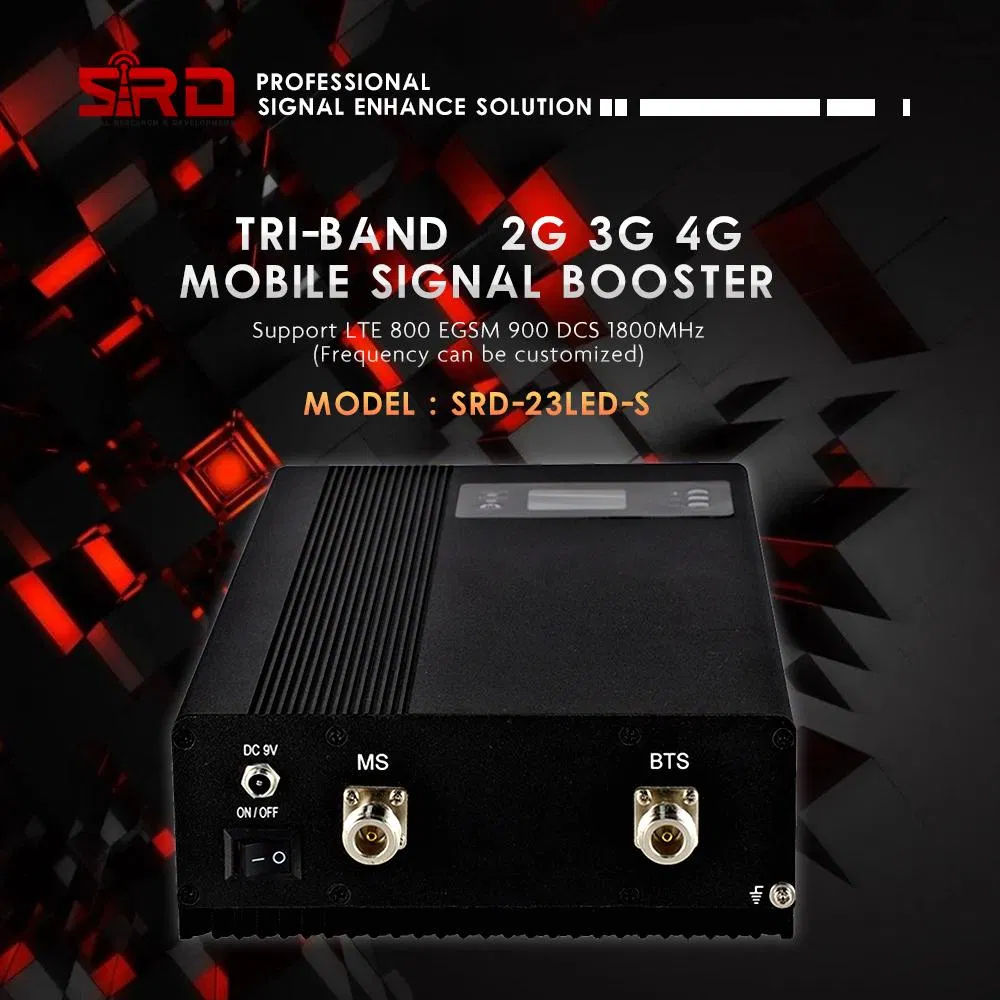

| Model NO. | SRD-23LED-S | Standard | Standard |
| Lightning Protection | Contact Service | Condition | New |
| Gross Weight | 3.5kg | Package Size | 224*170*65mm |

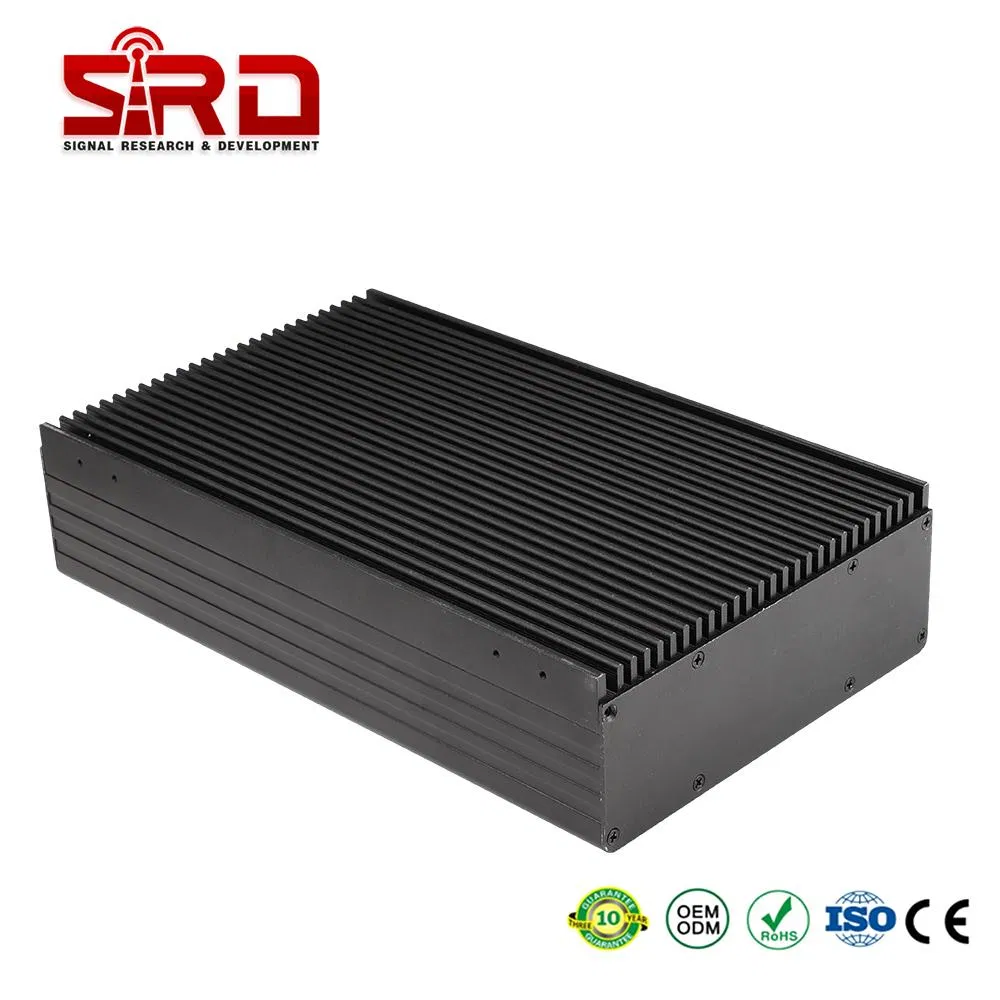

| RF Connector | N-Female | Cooling | Heatsink Convection |
| Power Supply | AC 100-240V, DC 9V 5A | Impedance | 50Ω |
| Gain | 75dB±2dB | Output Power | 23dBm±2dBm |
| Specification | Dual Band Signal Booster | Origin | China |

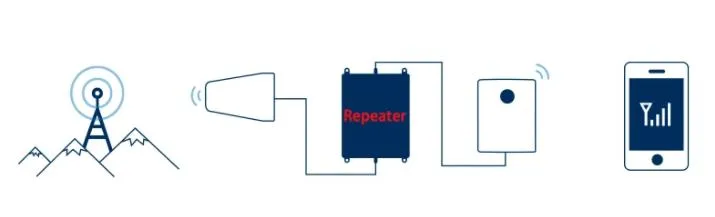

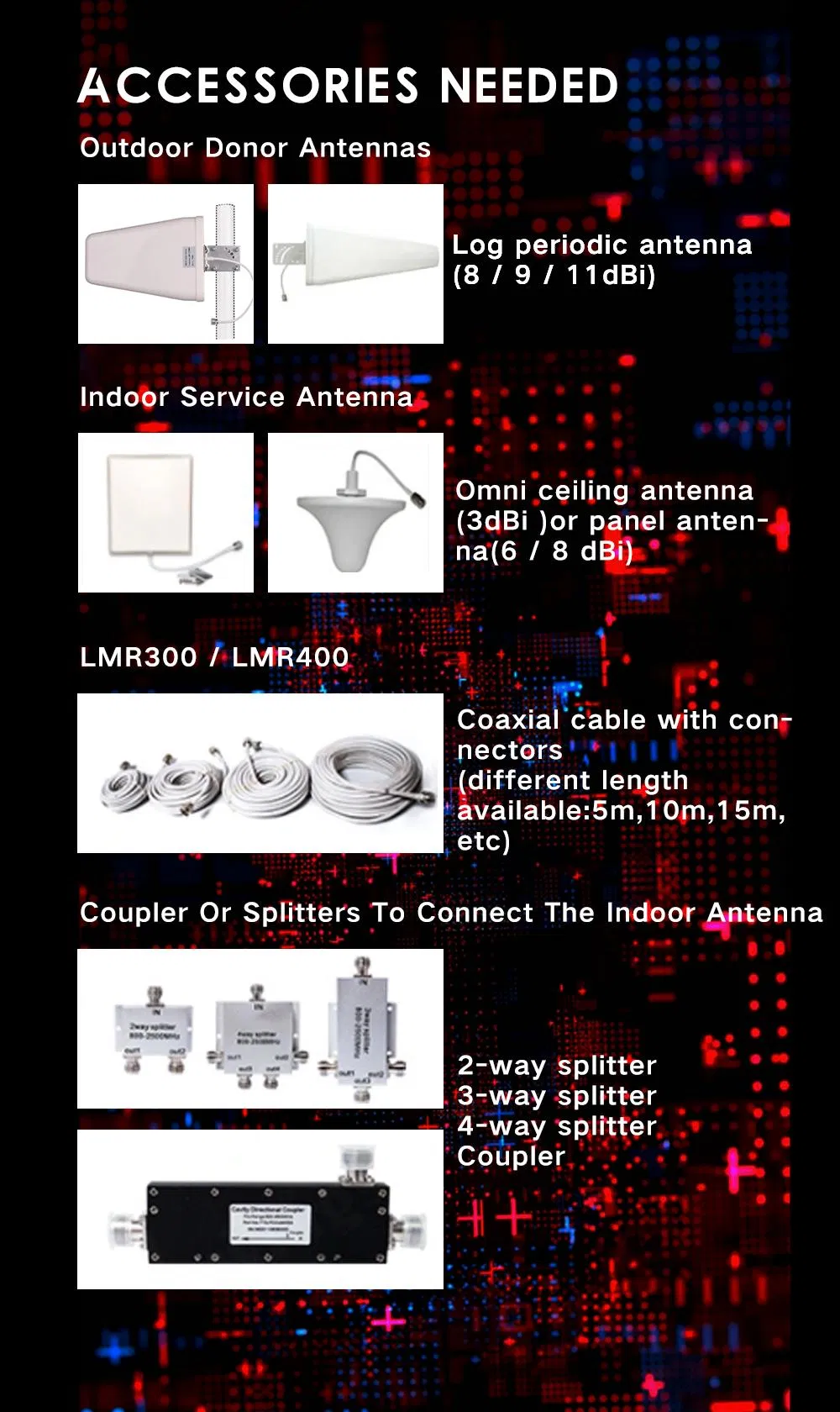

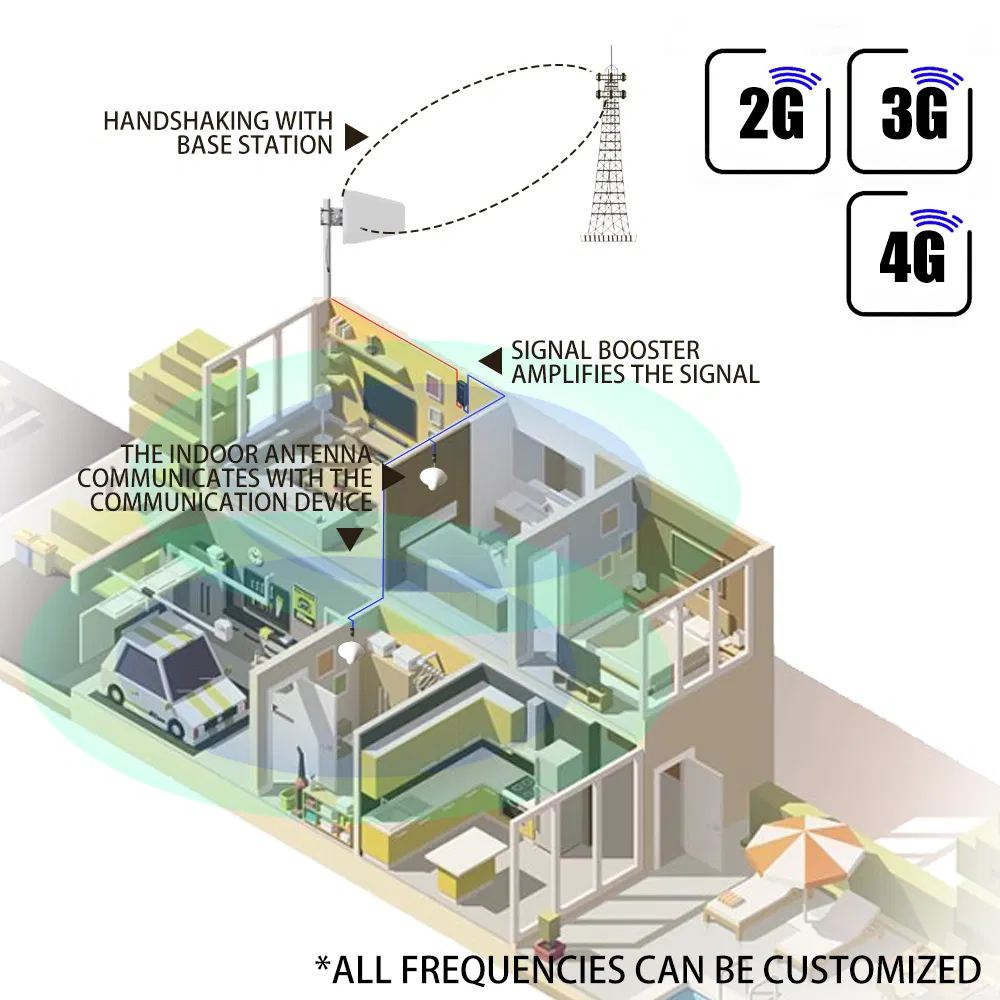

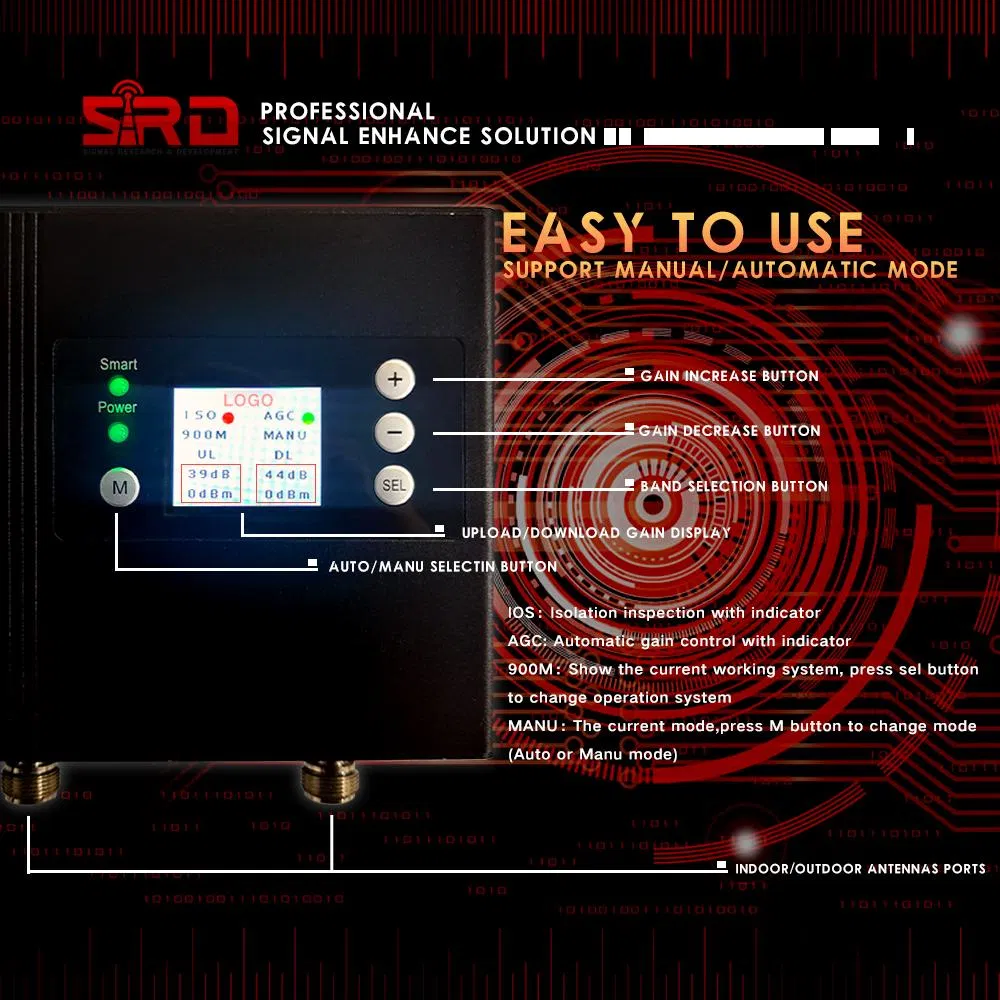

The Indoor Tri Band Signal Repeater series is an ideal solution for wireless systems in small to medium businesses and home users looking to enhance indoor connectivity. Connected via coaxial cable to Donor and Service Antennas, the system captures outdoor BTS signals and extends coverage to indoor blind areas. Features include Automatic Gain Control (AGC) to maintain voice quality and prevent network interference, all within a compact, user-friendly design.
| Frequency Range | Uplink | Downlink |
|---|---|---|
| LTE 800MHz | 832-862MHz | 791-821MHz |
| EGSM 900MHz | 880-915MHz | 925-960MHz |
| DCS 1800MHz | 1710-1785MHz | 1805-1880MHz |
| Gain | 70dB±2dB | 75dB±2dB |
| Output Power | 20dBm±2dBm | 23dBm±2dBm |
| Noise Figure | ≤ 6dB | |
| Time Delay | ≤ 1.5 μs | |
1) Power supply adapter (1PCS)
2) AC power cord (Standard per region) (1PCS)
3) Installation kit (1PCS)
4) User manual (1PCS)
Ideal for expanding signal coverage in blind areas or where reception is weak.
Indoor Environments: Hotels, Homes, Basements, Shopping Malls, Offices, Parking Lots, and Shops.
