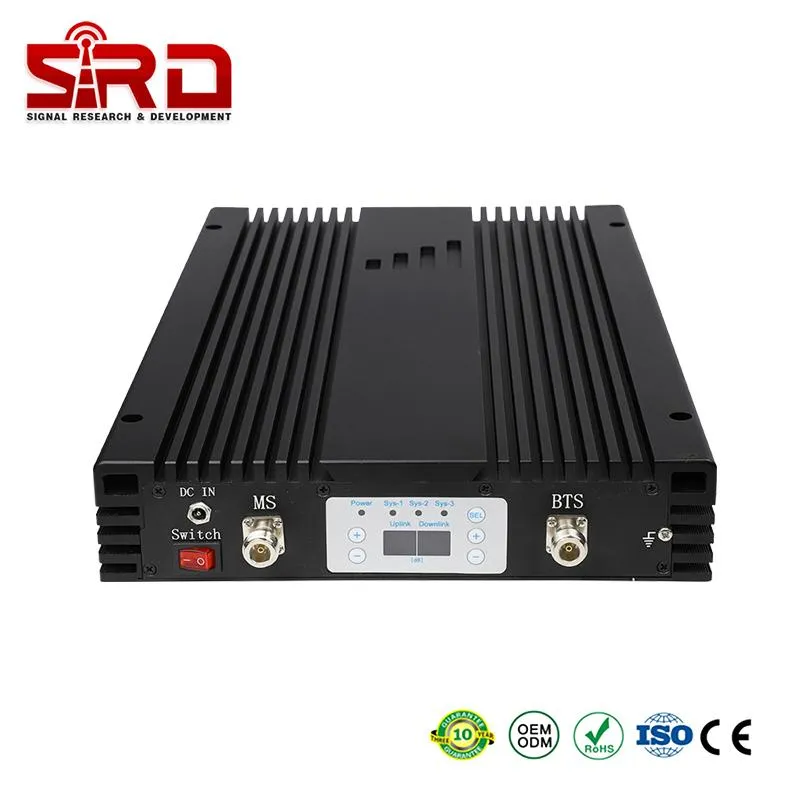

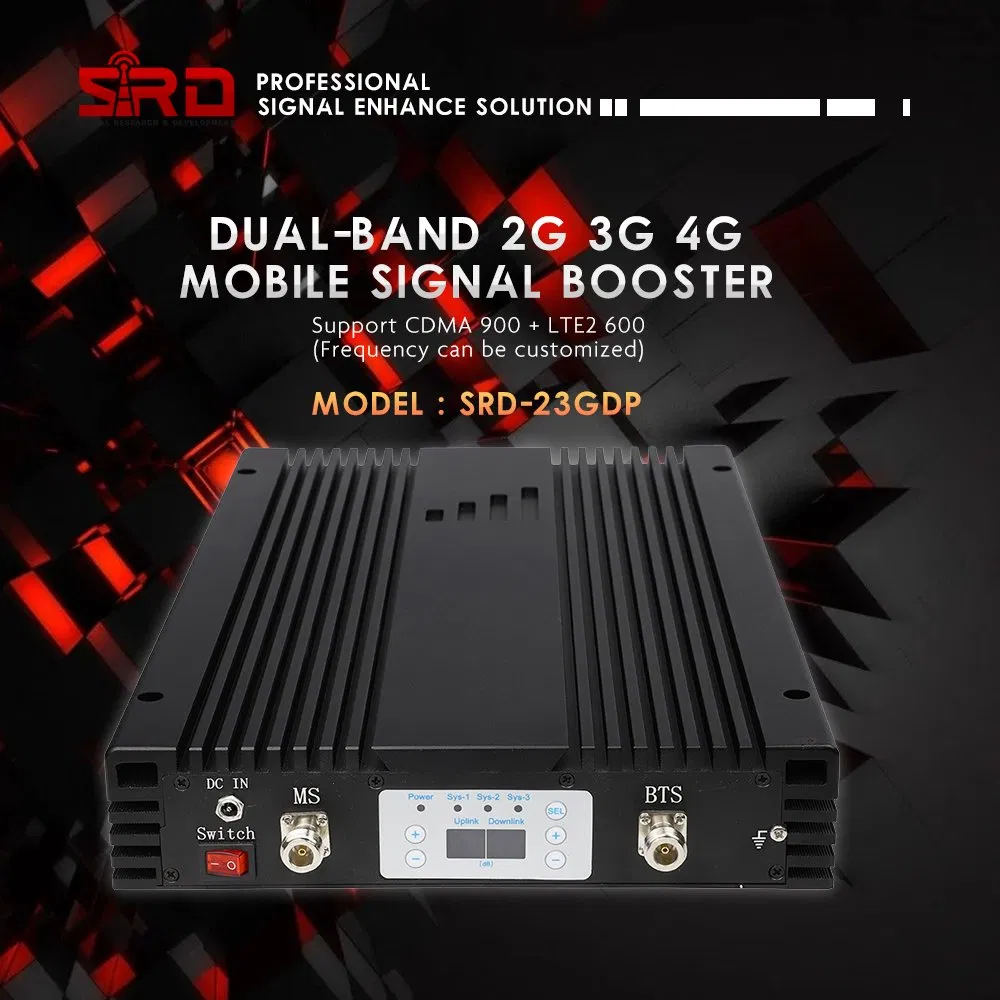

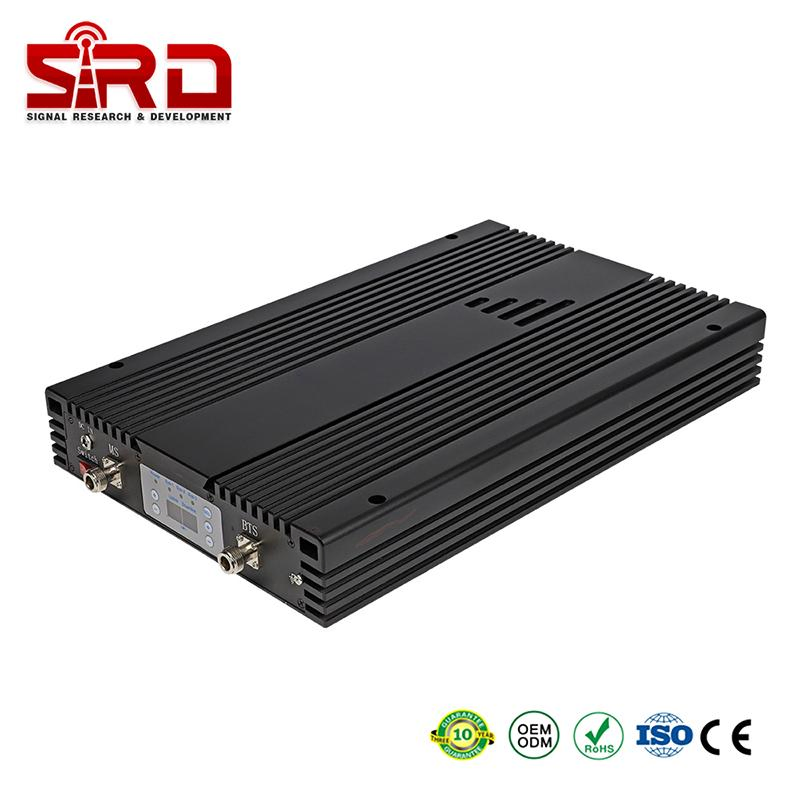

High Gain Dual Band 23 dBm CDMA 800MHz LTE 2600MHz 2g 3G 4G Mobile Phone Network Repeater Signal Booster

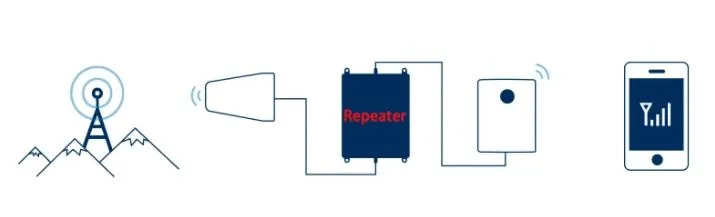

The Indoor Dual Band Signal Repeater series is an ideal solution for two wireless systems in small to medium businesses and home users looking to enhance indoor wireless connectivity. It connects via coaxial cable to a Donor Antenna and Service Antenna. The Donor Antenna is placed outside where it has access to the BTS signal, while the Service Antenna extends coverage to blind areas indoors.

Equipped with Automatic Gain Control (AGC), the booster avoids over-saturation, maintaining high voice quality and preventing network interference. Its compact, attractive design and easy installation make it suitable for individual customers without professional technical knowledge.

• Cost-effective solution for weak signal zones, reducing dropped calls.
• Compact size with low power consumption and easy installation.
• Efficient expansion and extending of base station signals.
• Optimization of signal source and quality.
• Coverage of approximately 1000~5000m² in unobstructed areas.
• High linear design with ALC function for low interference to BTS.
• Supports all cellular devices for voice, data, and video.

The booster is fixed to the wall using expansion bolts:

1. Drill holes in the selected location and install expansion bolts.
2. Align booster holes with bolts, add washers/nuts, and tighten.
3. Secure the booster and connect RF and power cables.
4. Power on to verify operation status.

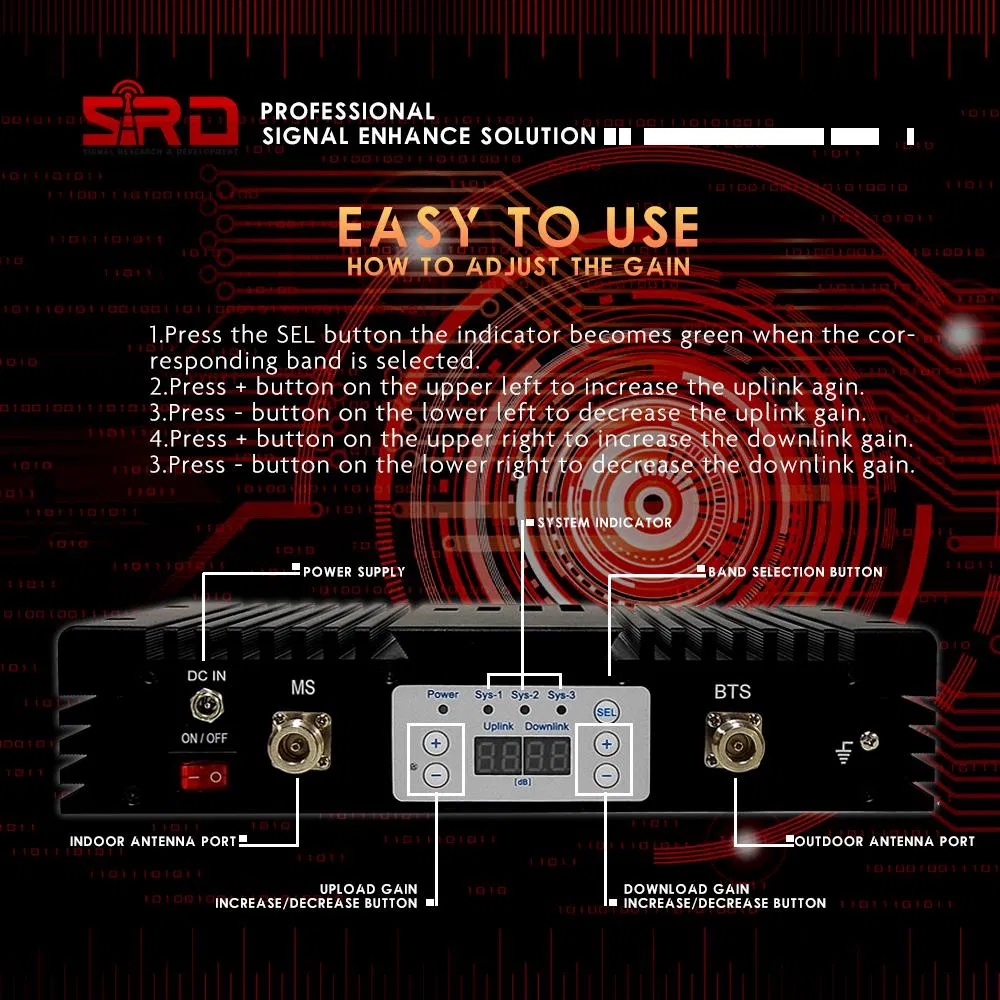

• BTS Port: Connects to the donor (outdoor) antenna cable.
• MS Port: Connects to the service (indoor) antenna.
• DC IN: Connects to the provided power adapter.

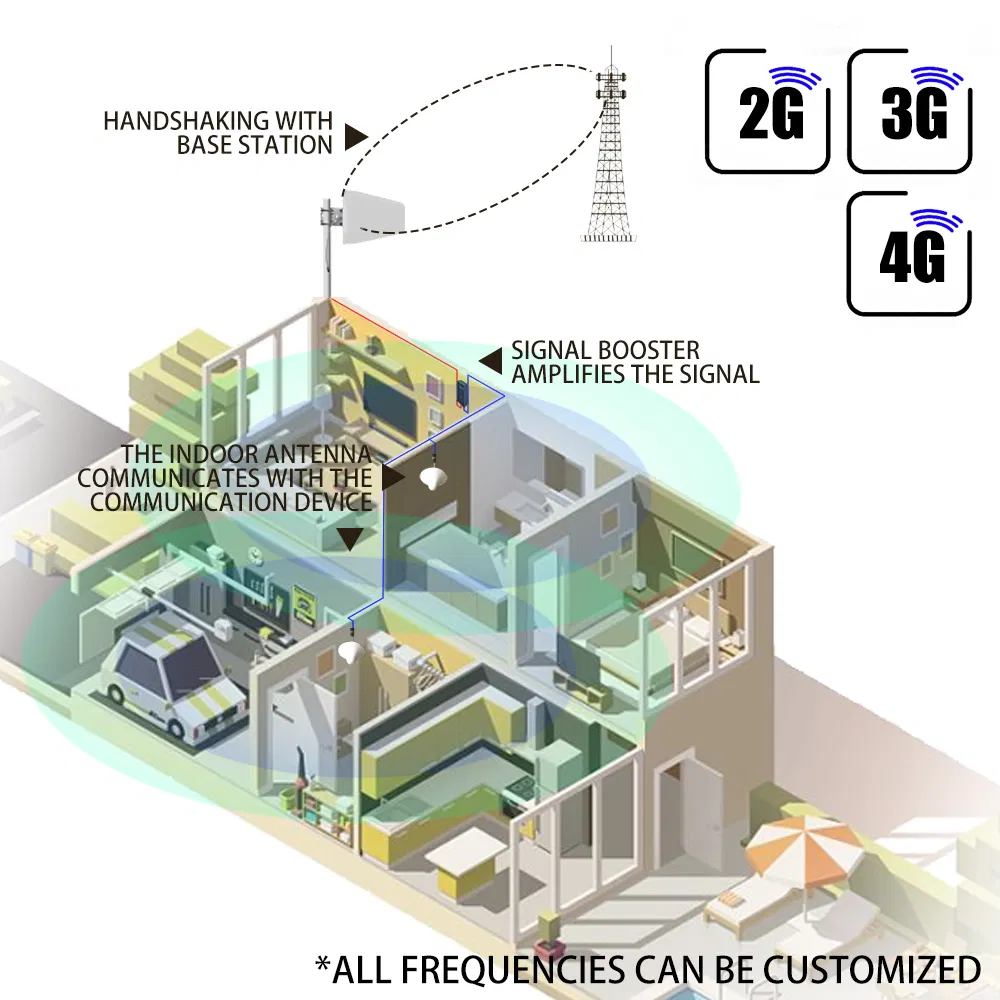

Ideal for expanding signal coverage or filling blind spots where signal is weak or unavailable:

Indoor Environments: Hotels, Homes, Basements, Shopping Malls, Offices, Parking Lots, and Shops.
