Technical Specifications
Lightning Protection
with Lightning Protection
Specification
268mm*58mm*189mm
Product Description
2G 3G 4G All Frequency Tri Band Mobile Cell Phone Signal Network Booster
This indoor signal repeater series provides an ideal solution for wireless systems in small to medium businesses and home environments looking to enhance indoor connectivity. By connecting to donor and service antennas, it bridges the gap in radio coverage areas efficiently.
| Frequency Range |
Uplink: 890 - 915 / 1710 - 1785MHz |
Downlink: 935 - 960 / 1805 - 1880MHz |
| Gain |
75dB±2dB |
78dB±2dB |
| Output Power |
20dBm±2dBm |
23dBm±2dBm |
| Bandwidth |
Wide Band |
| Manual Gain Control |
31dB / 1dB Step |
| ALC / Noise Figure |
>20dB |
≤ 6dB |
| Time Delay |
≤ 1.5 μs |
| MTBF |
> 50,000 hours |
Key Features & Advantages
✓
Cost effective solution for weak signal zones, reducing dropped calls.
✓
High linear design with ALC function to minimize interference to BTS.
✓
Covers approximately 3000~6000m² in unobstructed areas.
✓
Digital Display Panel for intelligent mode settings and easy adjustment.
Frequency Options
We support various frequency combinations to match your local network requirements:
- Single Band: 400MHz, 700MHz, 800MHz, 900MHz, 1800MHz, 2100MHz, 2600MHz, etc.
- Dual Band: 900+1800, 900+2100, 850+1900, 800+900, etc.
- Tri Band: 900+1800+2100, 800+900+1800, 850+1900+AWS, etc.
- Quad/Quint Band: Comprehensive support for complex multi-carrier environments.

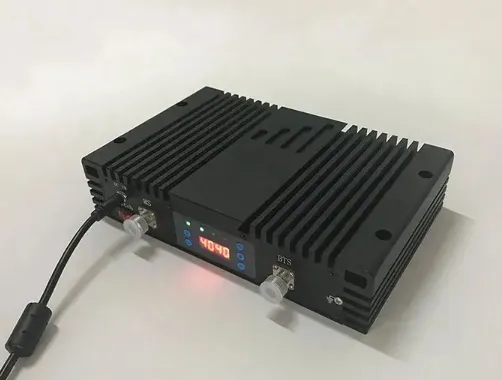

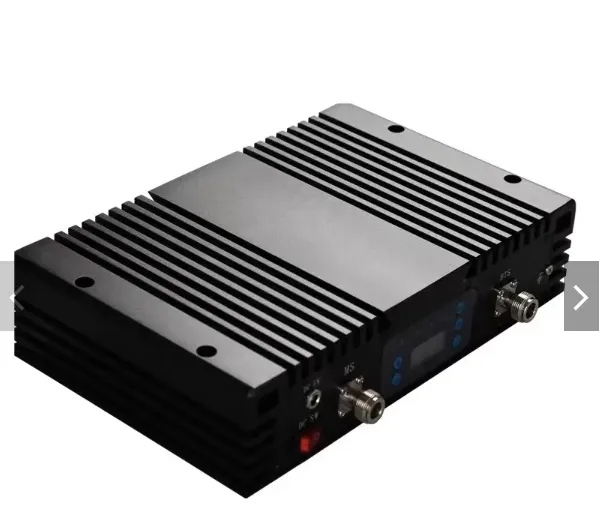

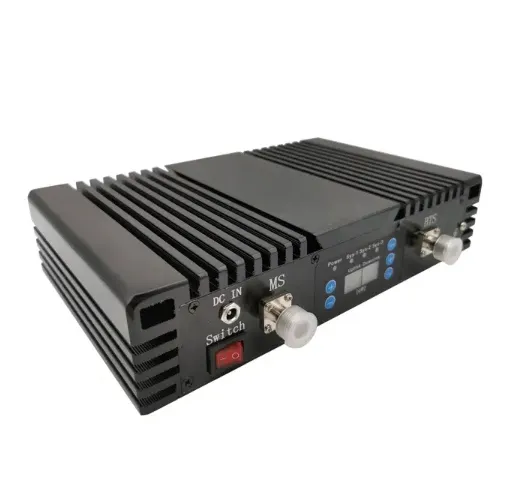

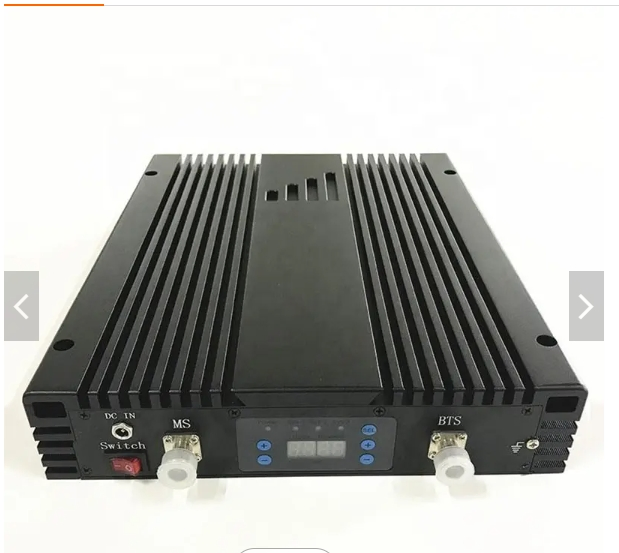

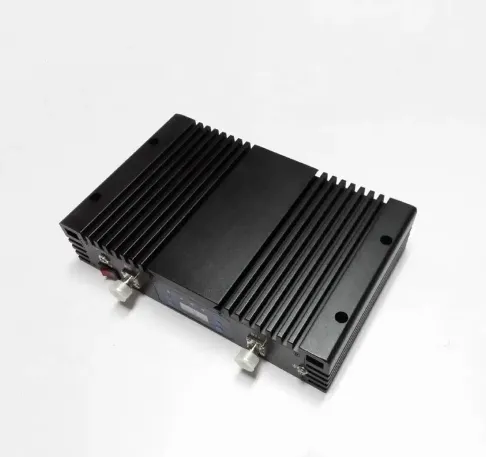

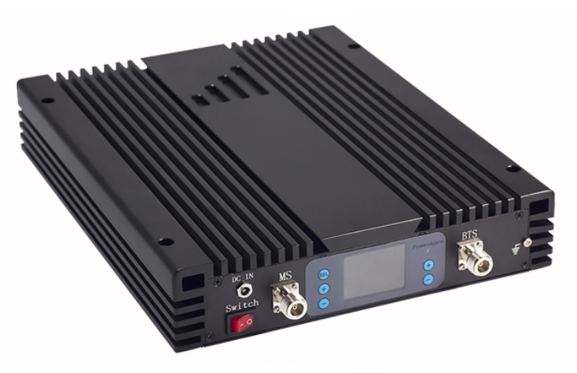

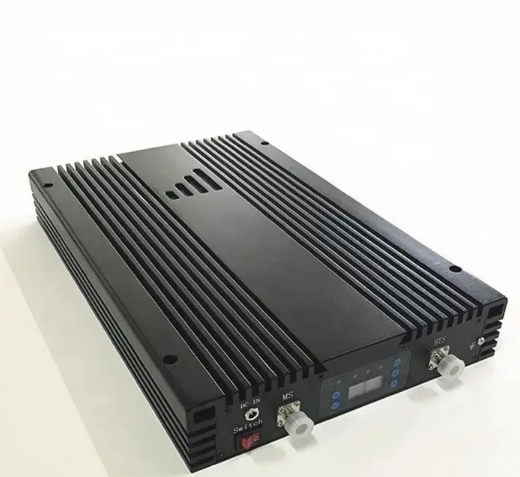

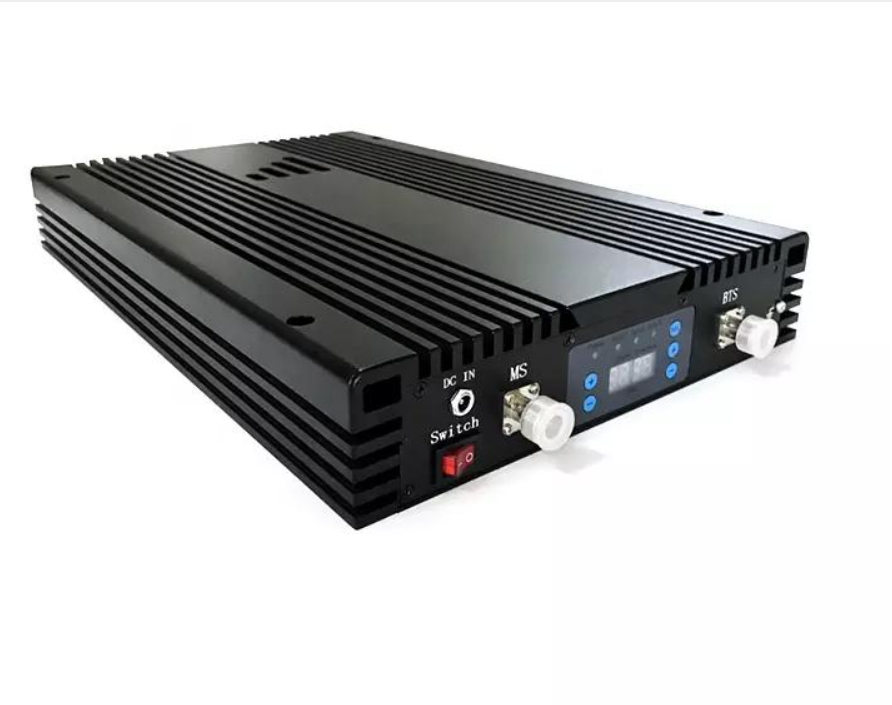

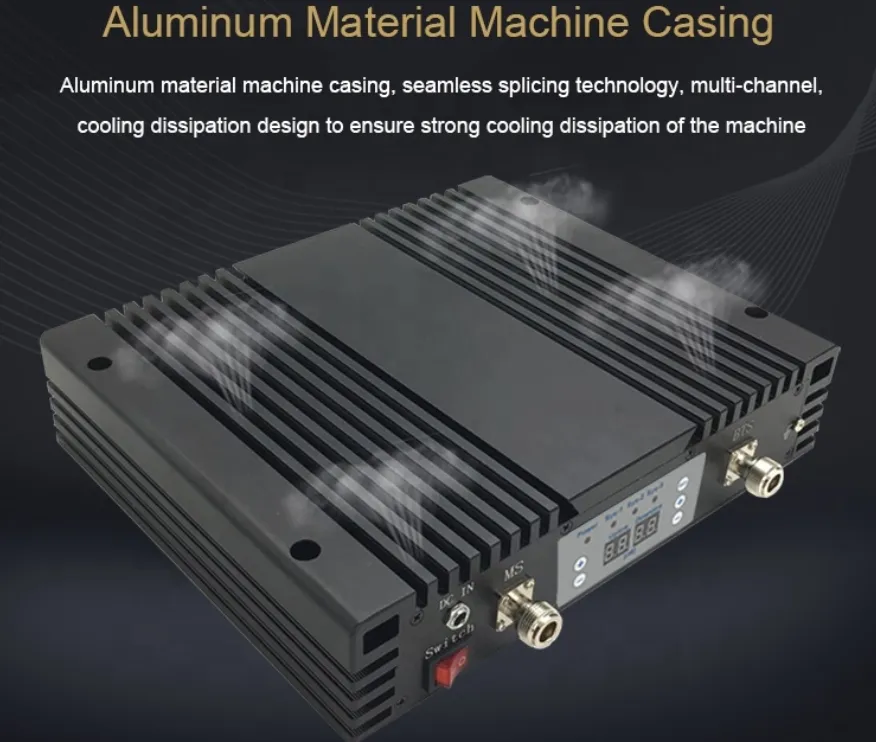

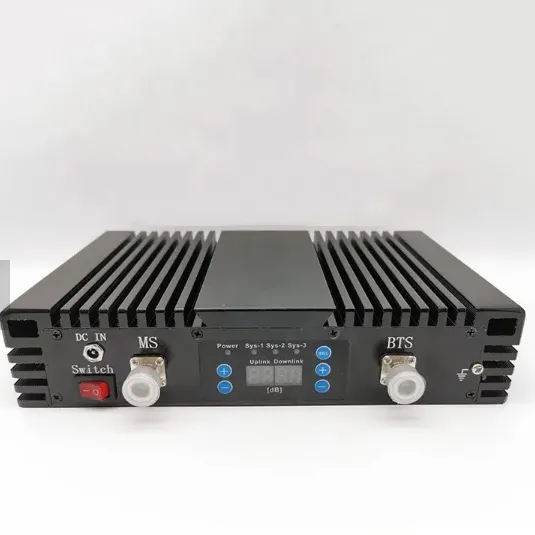

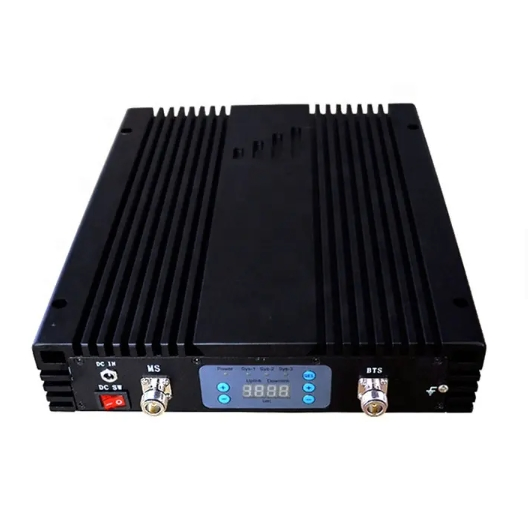

Product Visuals
Frequently Asked Questions
What is the coverage area of this signal booster?
The booster can cover approximately 3000 to 6000 square meters in an open area without significant blocks or obstructions.
Does this device support 4G LTE signals?
Yes, it is a wide-band signal booster that supports any cellular devices across 2G, 3G, and 4G (voice, data, and video) depending on the specific frequency configuration chosen.
Is the installation difficult for non-professionals?
No, the device features a compact design and easy installation. It is suitable for individual customers to install by themselves without needing extensive professional knowledge or specialized instruments.
How does the Automatic Gain Control (AGC) work?
The AGC function automatically adjusts the booster to avoid over-saturation, ensuring high voice quality and preventing interference with the mobile network.
Can I manually adjust the gain settings?
Yes, the device includes a Digital Display Panel and Manual Gain Control (MGC) switch, allowing users to choose the gain and working system settings efficiently.
What is included in the standard package?
The standard package includes the Signal Booster, a DC 9V/5A power supply adapter, an AC power cord, an installation kit, and a user manual.
