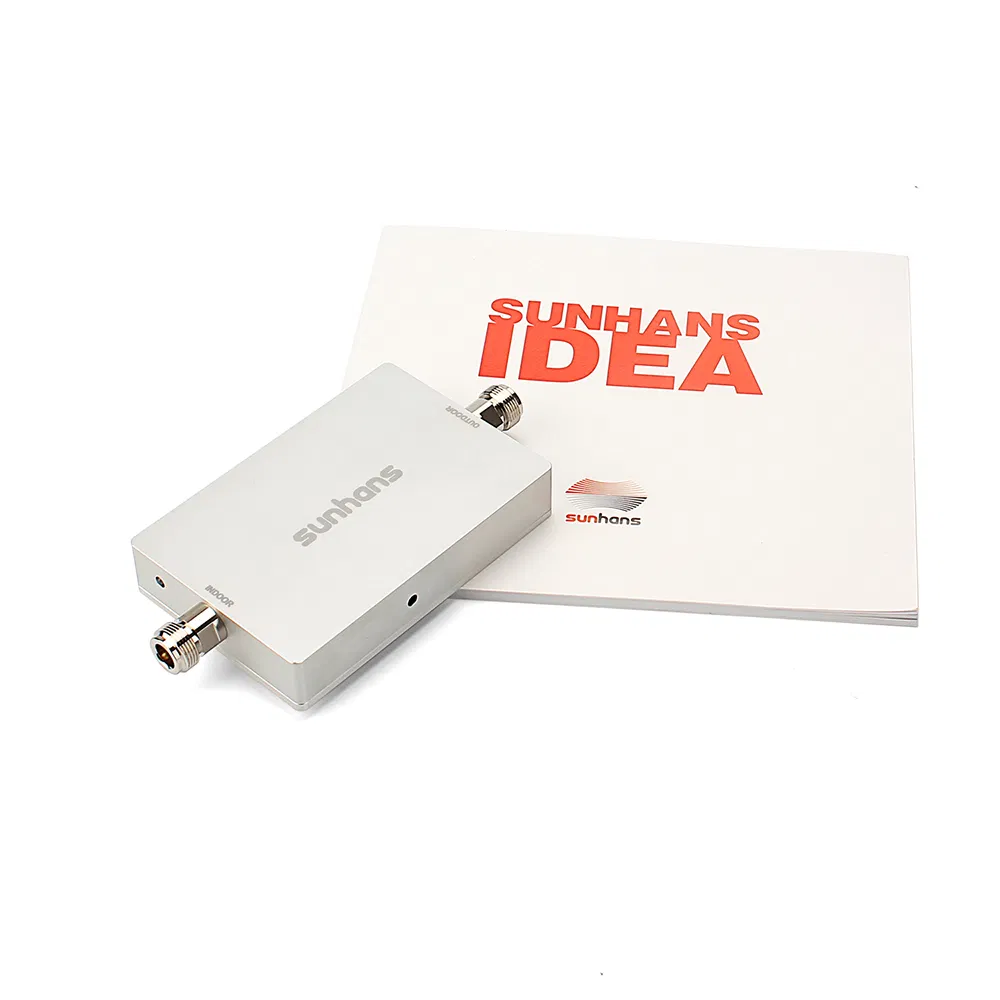

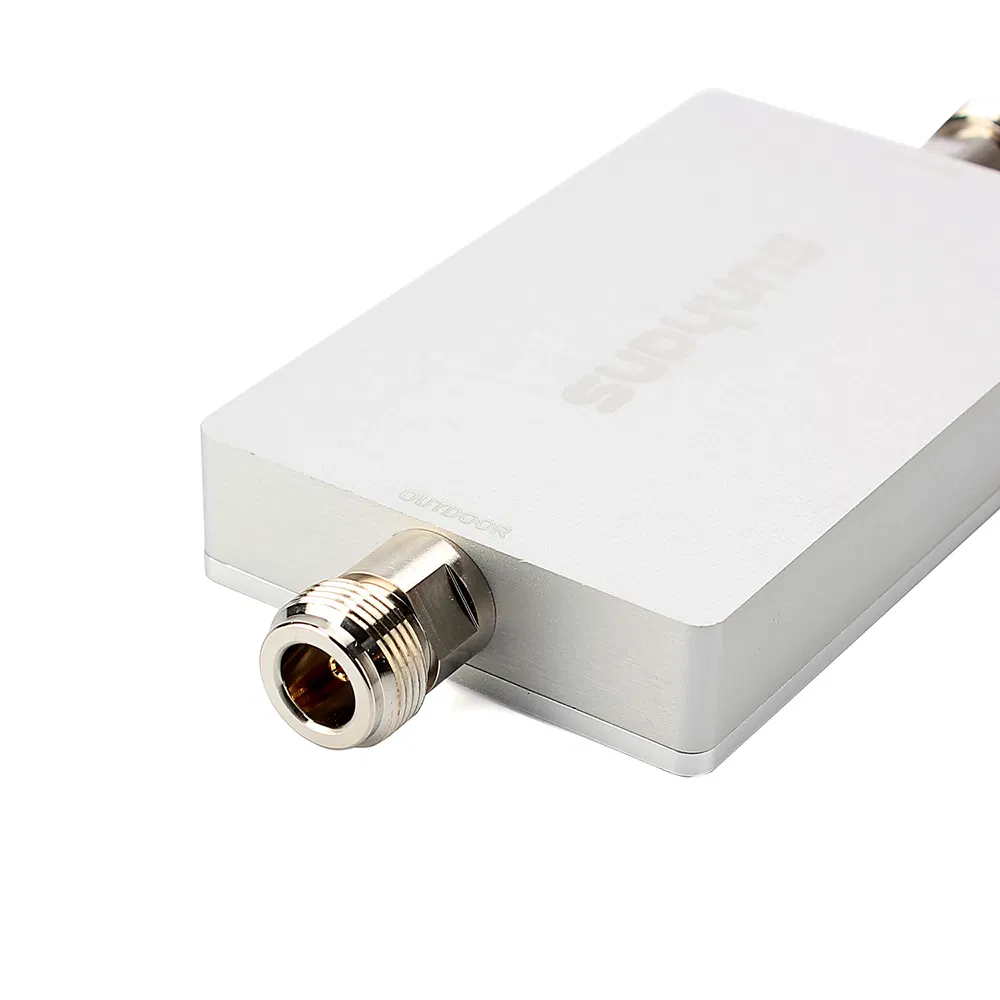

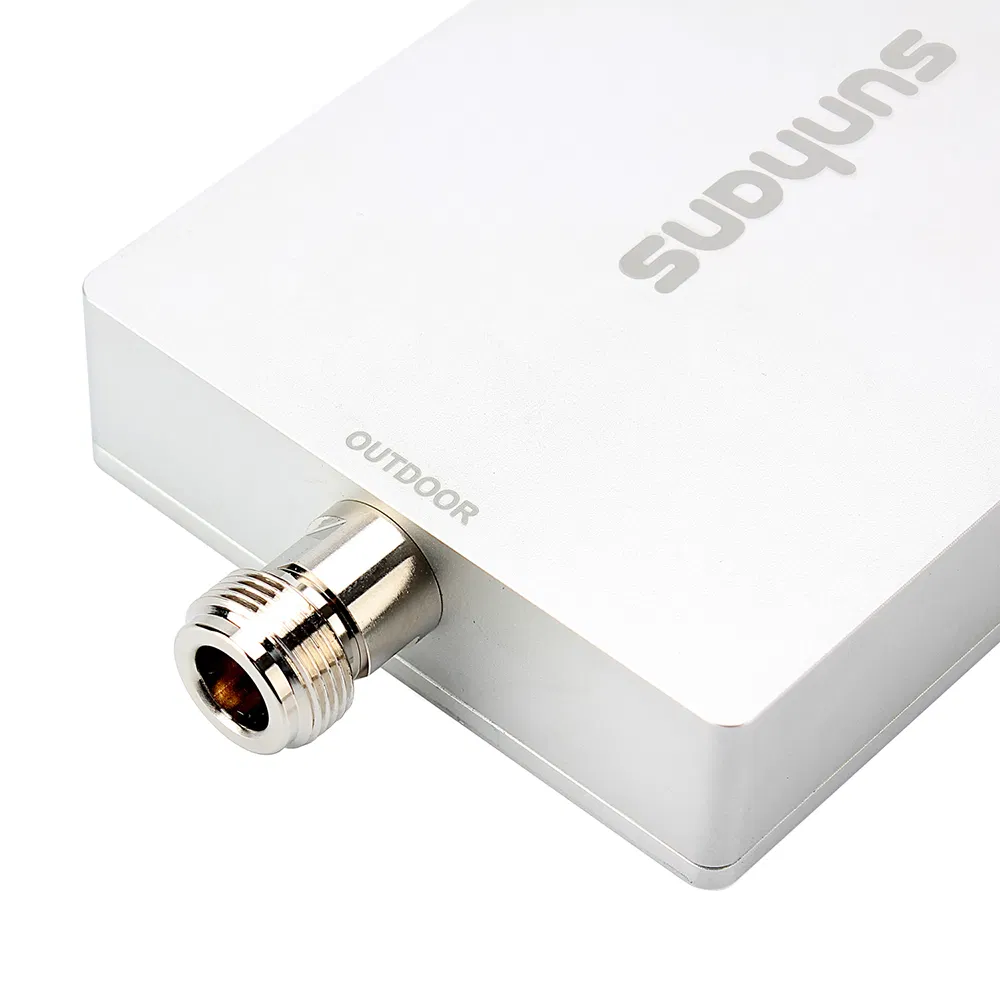

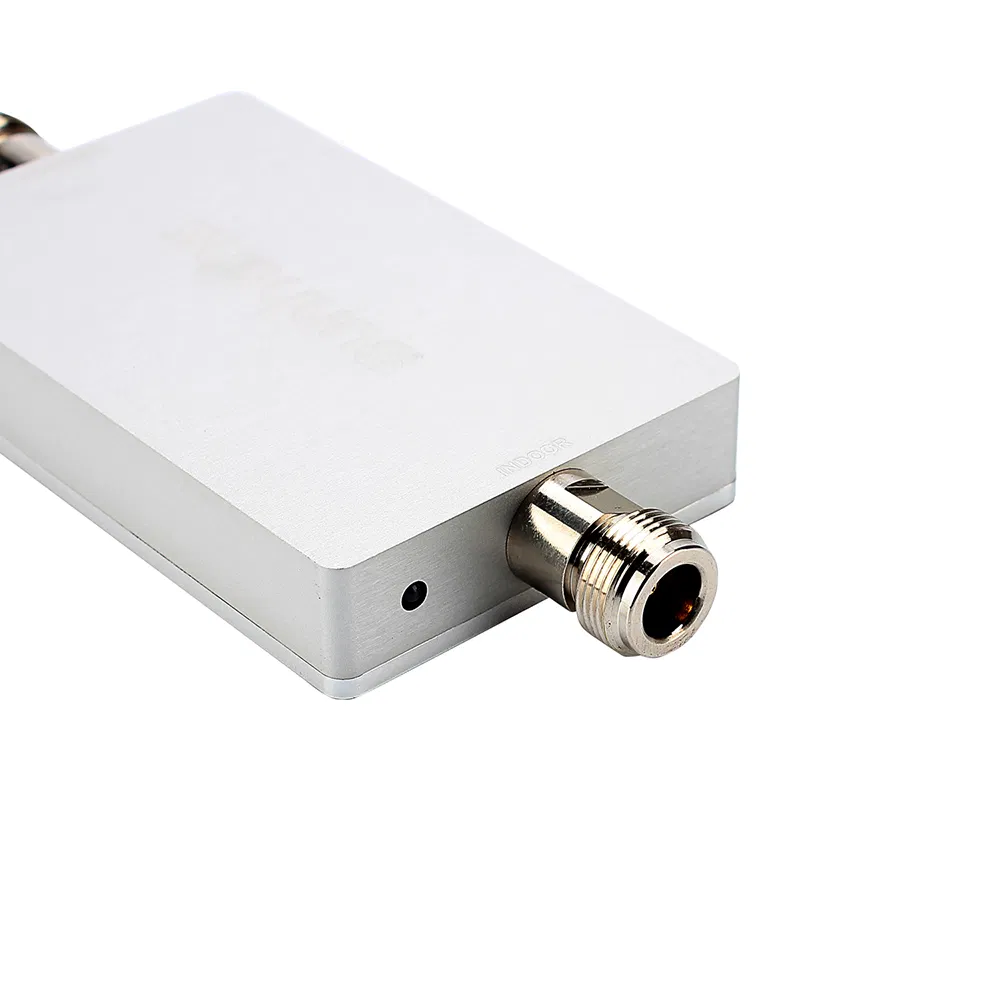

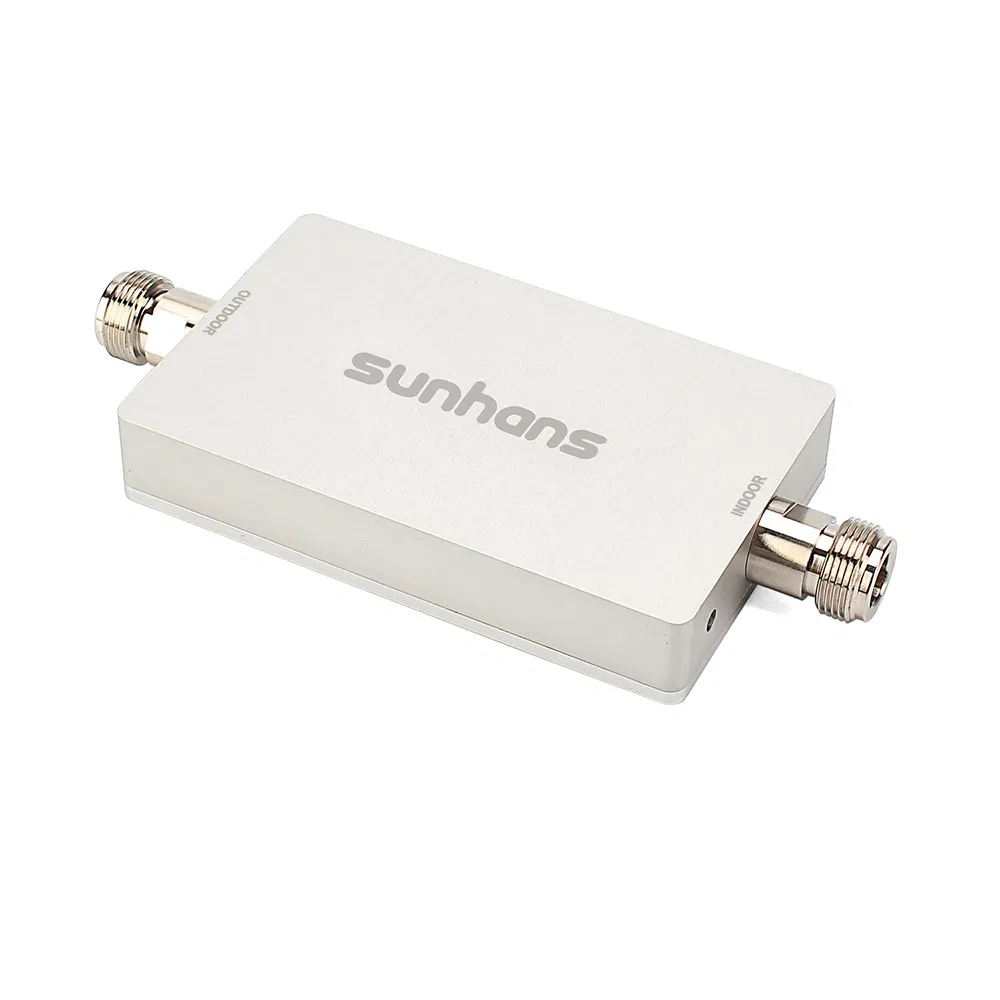

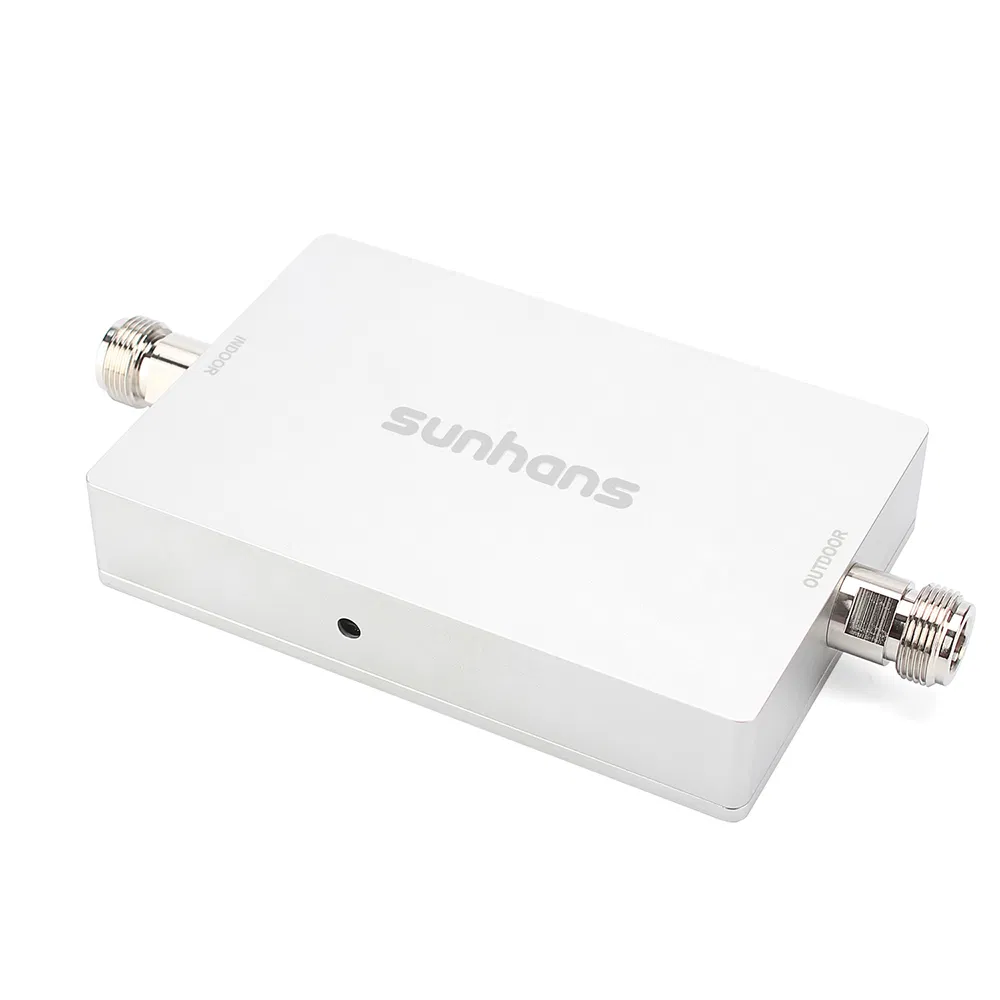

2G 3G 4G LTE Super Extending 2600MHz Mobile Signal Booster

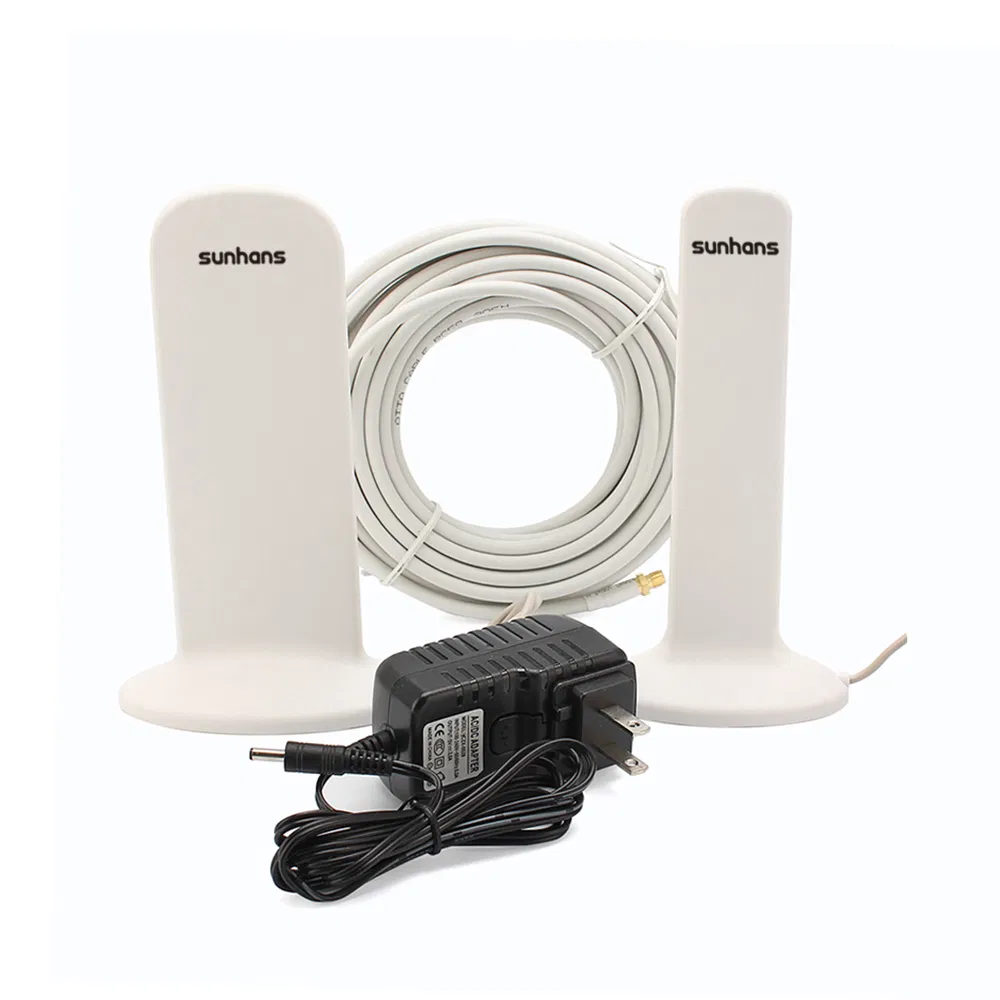

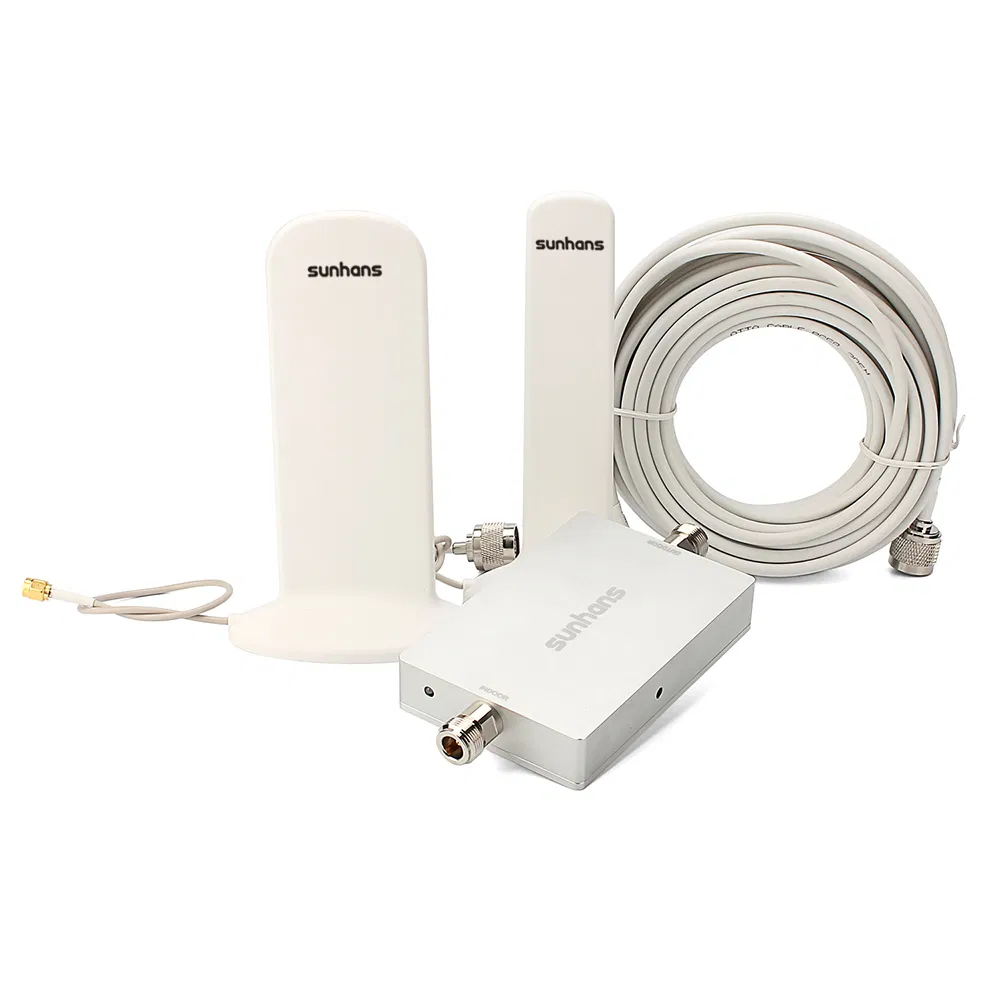

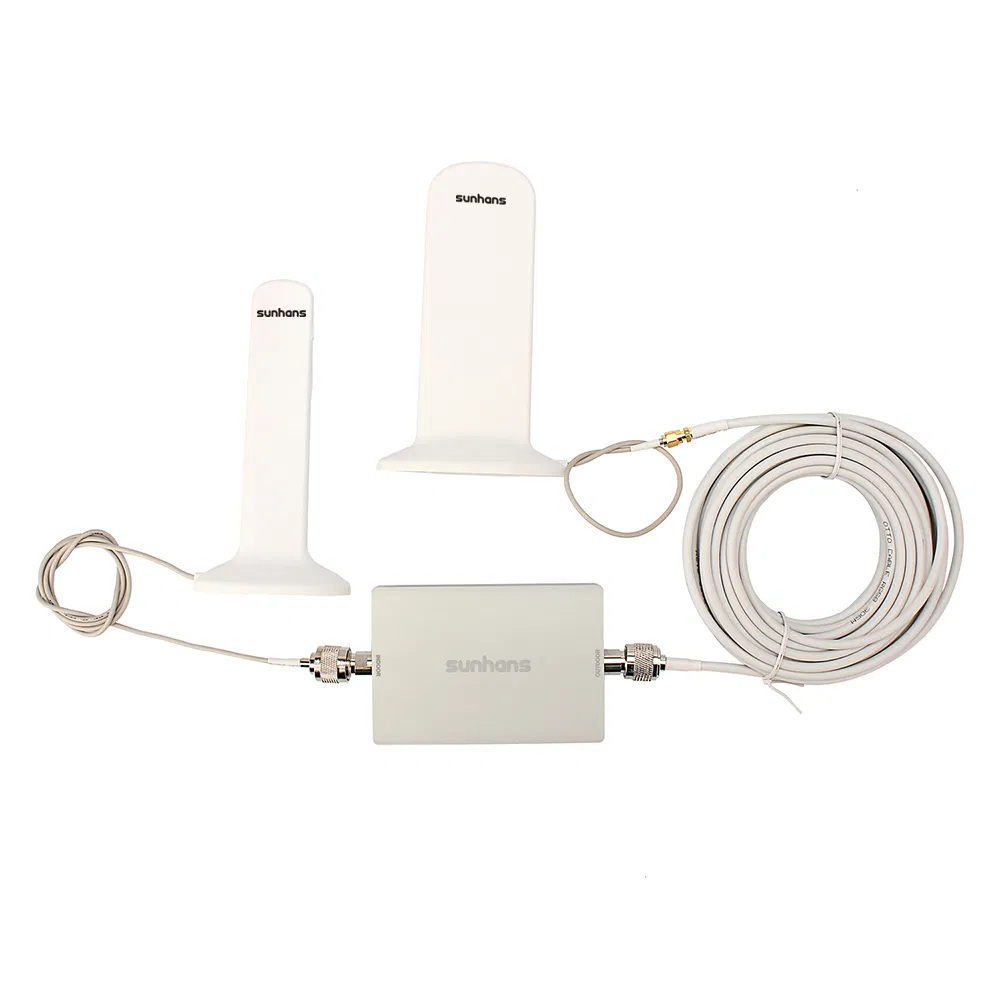

Cell Phone Repeater Amplifier for office and home with Indoor and Outdoor Antenna set.
Key Features:
| Amplifier Specifications | |
|---|---|
| Up link frequency | 2500 - 2570MHz |
| Down link frequency | 2620 - 2690MHz |
| Input power | -70 ~ -40dBm |
| Max Up link gain | 62dB |
| Max Down link gain | 65dB |
| Auto Level Control (ALC) | ≥ 20 dB |
| Max output power | 17dBm |
| Impedance | 50 Ohms |
| Connector type | N-K female |
| Repeater size | 13.8 x 4.7 x 2.1cm |
| Indoor & Outdoor Antenna Details | |
|---|---|
| Indoor Antenna Gain | 8dBi |
| Indoor Frequency | 690~2700MHz |
| Outdoor Antenna Gain | 12dBi |
| Outdoor Frequency | 690~2700MHz |
| Cable Type | RG58 50-3 ROHS Coaxial cable |
| Cable Impedance | 50 Ohms |

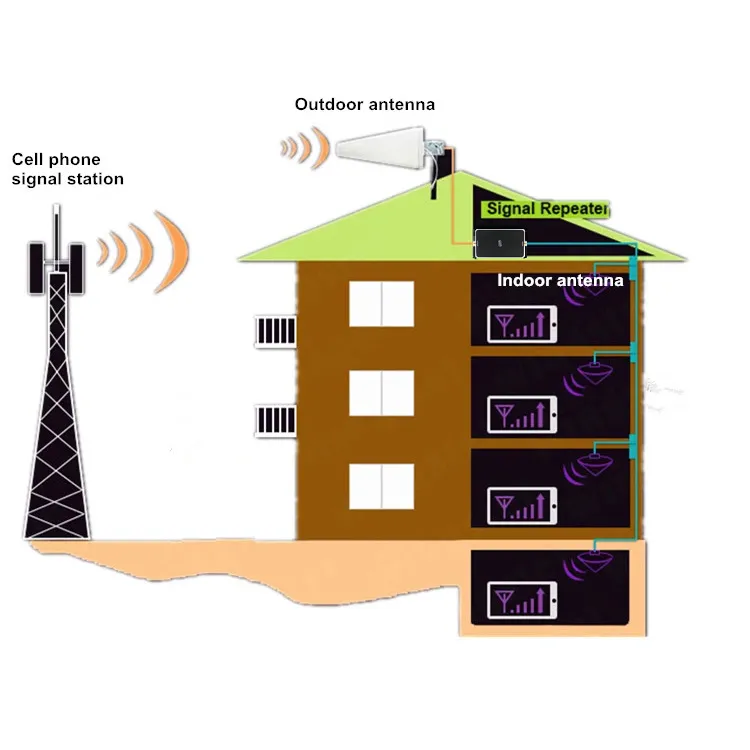

Ideal for areas with poor signal coverage:
| No Signal receipt: Check if the outdoor antenna points to the tower and has at least 3 bars of signal at its location. |
| Cannot call out: Adjust the direction of the outdoor antenna for better orientation. |
| Unsteady strength: Ensure maximum distance between outdoor and indoor antennas, separated by a wall, and not on the same horizontal line. |
