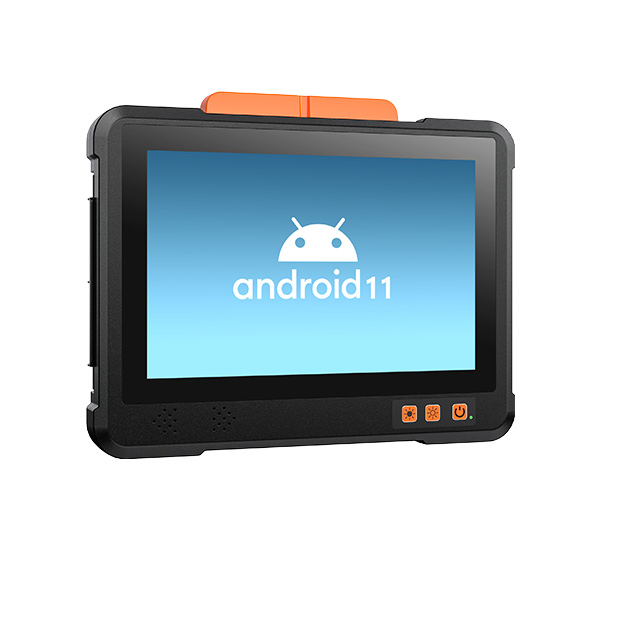

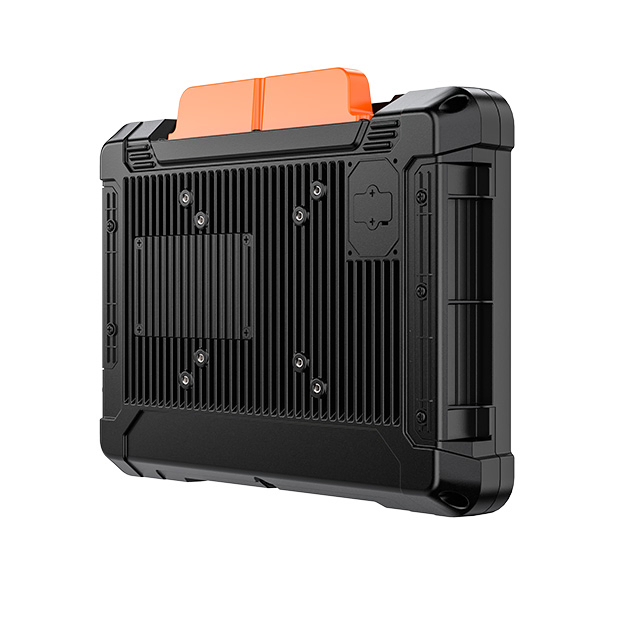

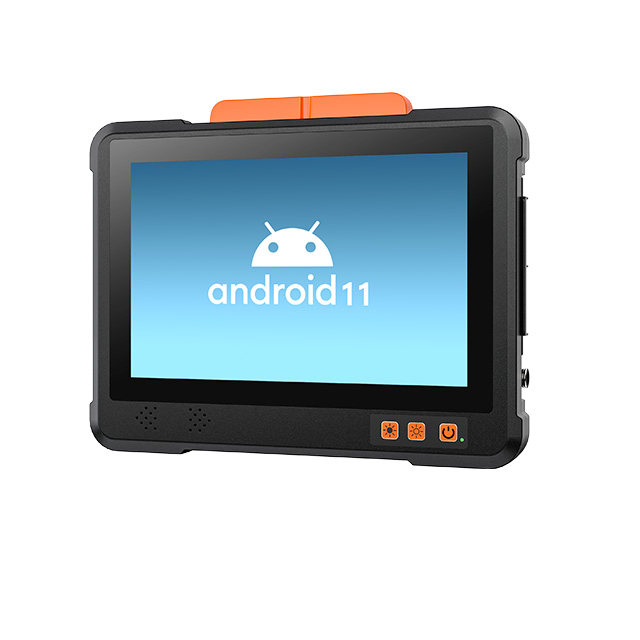

Industrial-Grade Tablet with Enhanced Durability and Battery Life

1 / 5

Industrial-Grade Tablet with Enhanced Durability and Battery Life

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model

VT760

Certification

CCC, CE, FCC, RoHS

CPU Type

MTK Quad-Core / ARM Dual-core A72 + Quad-core A53

Display

10.1" (1280*800)

Durability

IP65, Anti-Dust, Drop Resistance, Shockproof, Waterproof

Memory/Flash

4GB RAM / 32GB EMMC

Network

4G, WiFi 802.11(a/b/g/n/ac), Bluetooth V4.2

Protection

IP65 / MIL-STD 810G

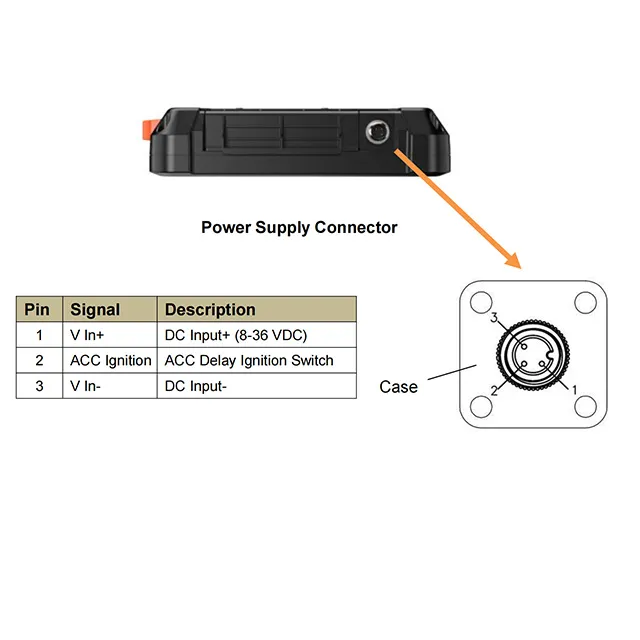

Power Input

8-36V DC

Dimensions

280*210*47.5mm

Product Features

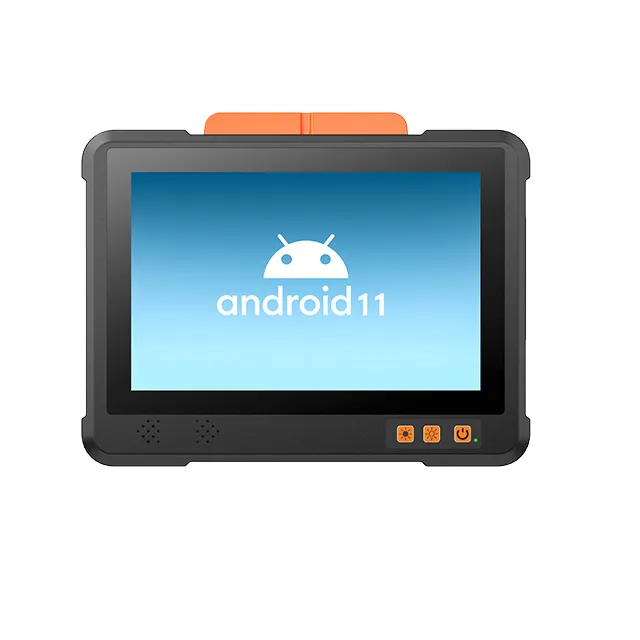

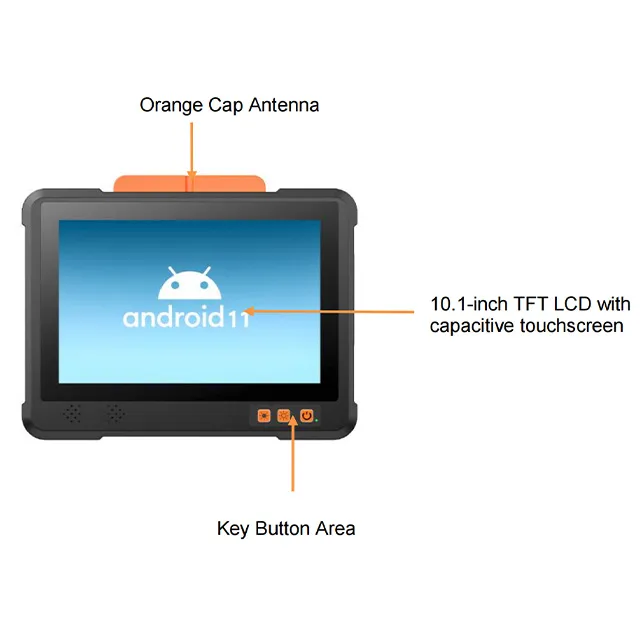

📺 10.1-inch (1280x800) LCD with capacitive touch screen

🚀 High-performance 6-core processor, up to 1.8GHz

🛡️ Rugged aluminum enclosure and fanless design

💧 Full IP65 dust/water protection

🔌 Wide range 8-36V DC Power input

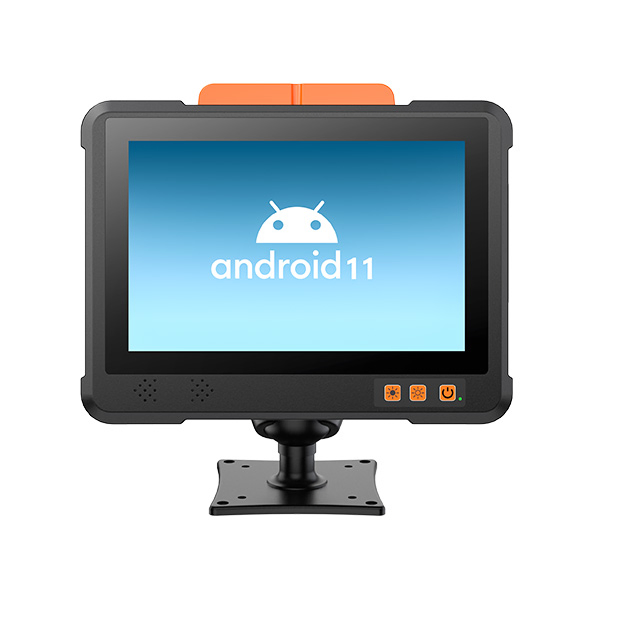

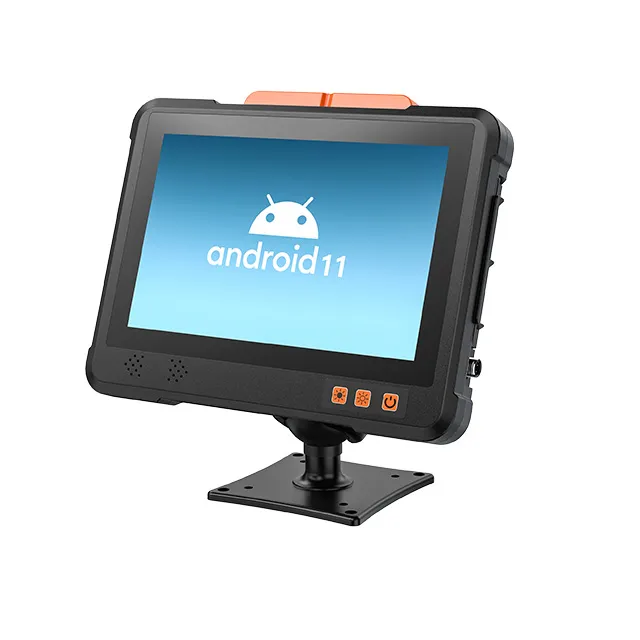

🛠️ VESA 75 and 100 standard mounting

Detailed Technical Specifications

System
Processor	ARM Dual-core A72 + Quad-core A53, up to 1.8GHz
RAM / Flash	4GB LPDDR4 / 32GB EMMC
OS	Android 11
Expansion	1 x TF Card slot (up to 128GB)
Display & Audio
Panel	10.1-Inch Industrial Grade, 1280x800, 400cd/m2
Touch Panel	5-Point Tempered Glass Capacitive Screen
Speaker	2 x 8Ω/2W Mono Speaker
I/O Ports & Wireless
Interfaces	1 x RS232, 1 x USB, 1 x USB/OTG, 1 x 1000M RJ45, 1 x Nano-SIM
Wireless	WiFi 2.4G/5G, 4G LTE, 5G NR (Optional), Bluetooth V4.2
GNSS	GPS/GLONASS/BeiDou/QZSS/Galileo/SBAS
Environment & Mechanical
Temperature	Operating: -20ºC to +60ºC; Storage: -30ºC to +70ºC
Standards	IP65 Rating, MIL-STD 810G
Mechanical	280 x 210 x 47.5 mm, Weight: 4.2 Kg

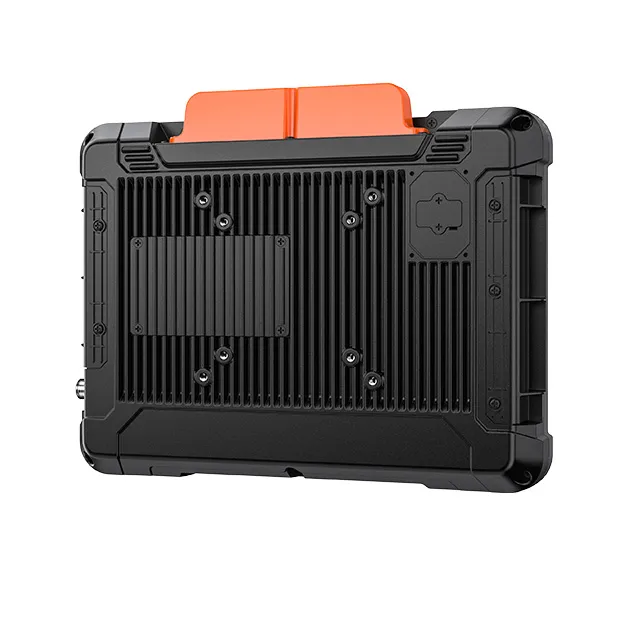

Product Gallery

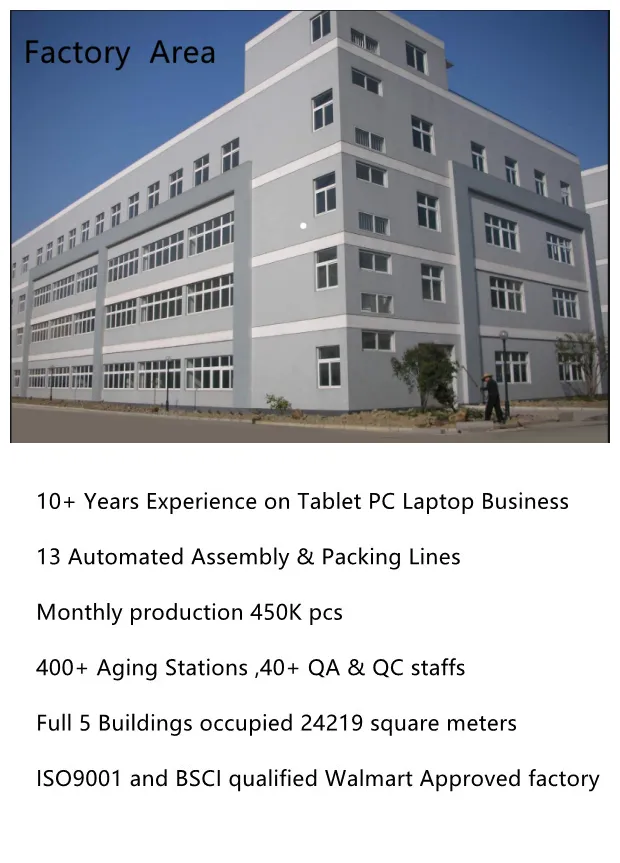

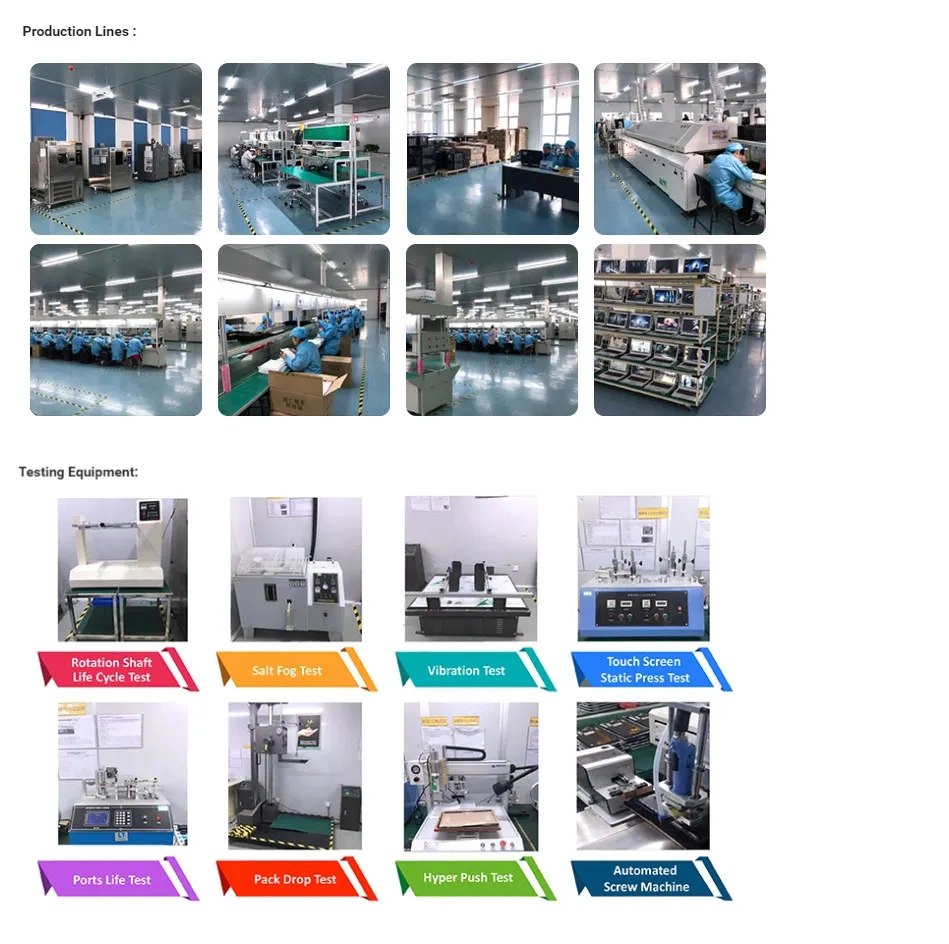

Certifications & Quality

Frequently Asked Questions

What is the IP rating of the VT760 industrial tablet?

The VT760 features a full IP65 rating, providing complete protection against dust ingress and low-pressure water jets from any direction.

Does this device support vehicle mounting?

Yes, it is designed with VESA 75 and VESA 100 standard mounting holes, making it compatible with a wide range of industrial and vehicle mounts.

What type of power input does the VT760 require?

The device supports a wide range DC power input from 8V to 36V, ideal for various industrial and automotive power systems.

Can the internal storage be expanded?

Yes, the VT760 includes a TF card expansion slot that supports up to 128GB of additional storage.

What are the operating temperature limits?

This rugged tablet is built for extreme environments, with an operating temperature range of -20ºC to +60ºC.

Which wireless connectivity options are available?

It comes equipped with Dual-band WiFi (2.4G/5G), Bluetooth V4.2, 4G LTE, and high-precision GNSS (GPS/GLONASS/BeiDou/Galileo).
