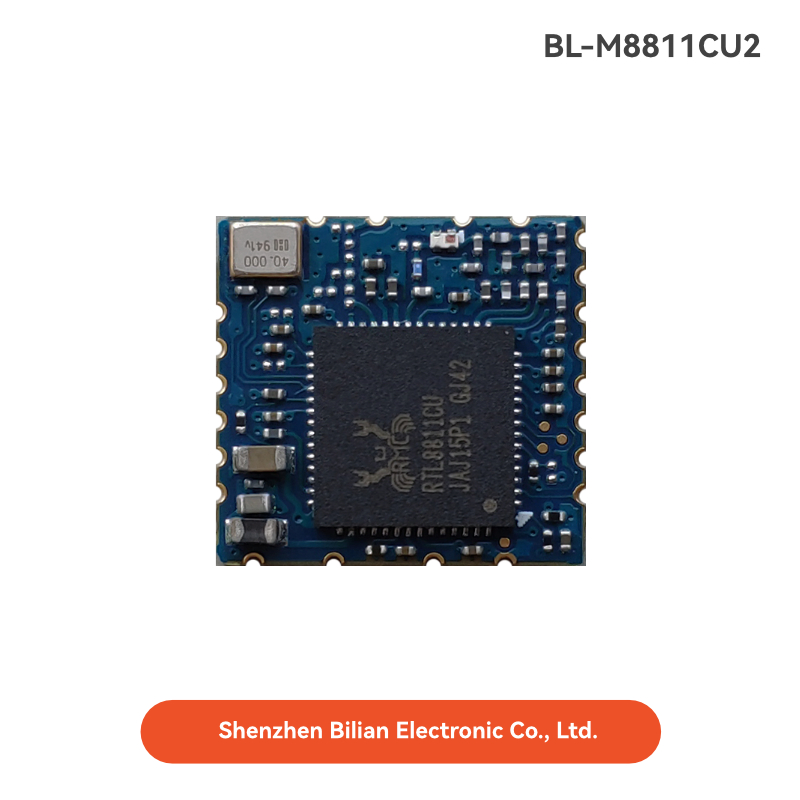

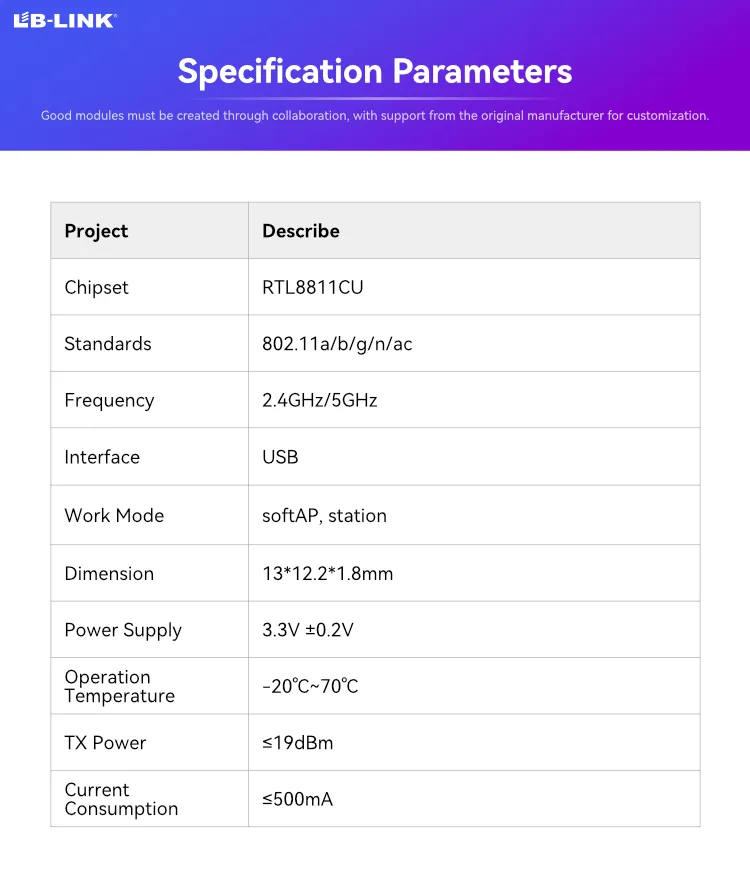

| Model No. | BL-M8811CU2 |
| WiFi Antenna Type | External |
| Transmission Rate | 433Mbps |
| Voltage | 3.3V |
| Chipset | RTL8811CU-CG |
| WLAN Standard | IEEE 802.11 a/b/g/n/ac |
| Host Interface | USB2.0 |

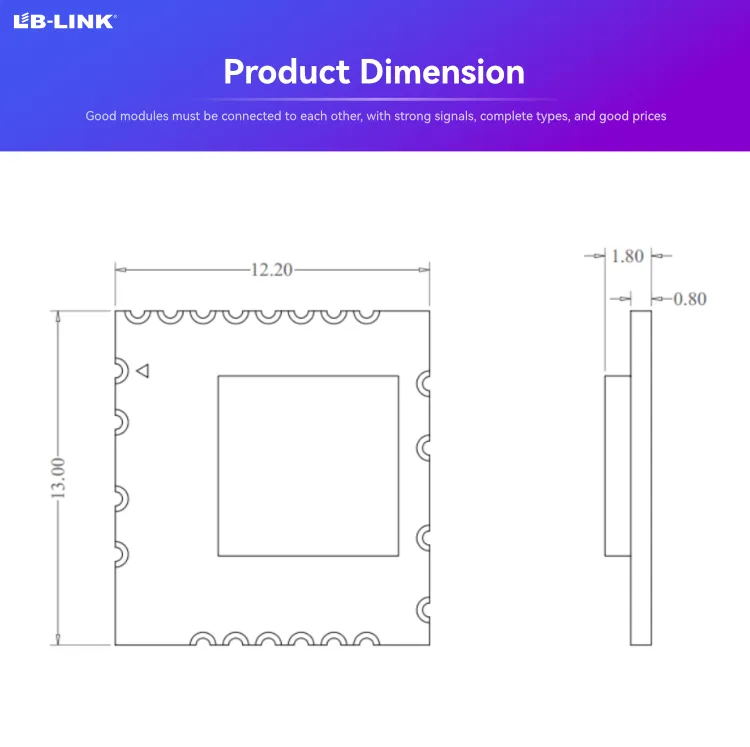

| Dimension | 12.9*12.2*1.7mm |
| Operation Temperature | -20℃ to +70℃ |
| Certification | ISO9001, RoHS, FCC, CE |

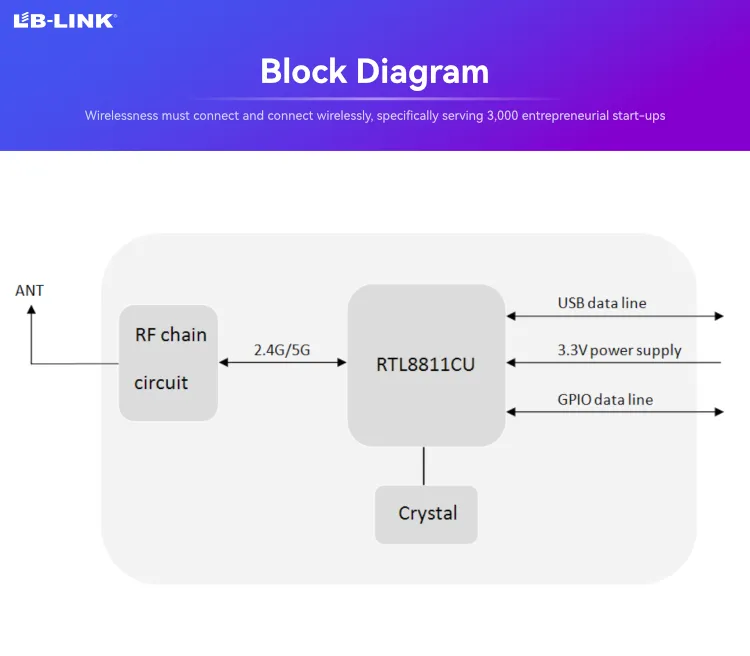

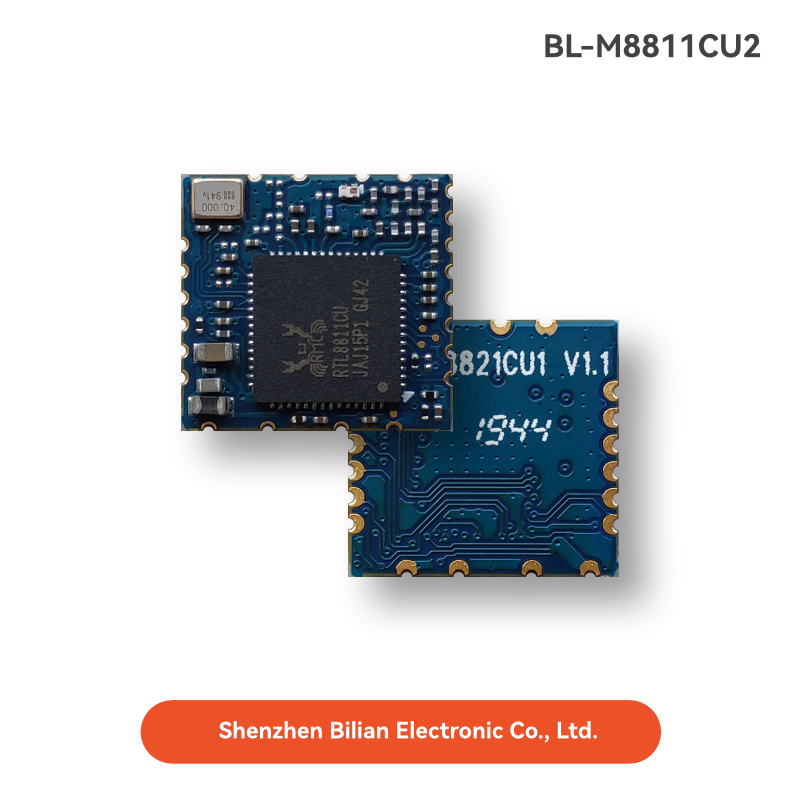

The module is a highly integrated dual-band WLAN solution based on the RTL8811CU chipset, combining WLAN MAC, 1T1R Baseband, and Radio into a single chip. Compatible with IEEE 802.11a/b/g/n/ac standards, it supports a maximum PHY rate of 433Mbps, making it ideal for Smart TVs, OTT boxes, IP cameras, and LED projectors.
As a high-tech communication global brand company, we specialize in the research, development, and production of network communication equipment. Our facilities include over 12 SMT high-speed production lines, wave soldering plug-in lines, testing lines, and aging rooms. With a dedicated team of nearly 1000 employees and professional laboratories, we provide robust hardware and software services for the IoT and Smart Home industries.
