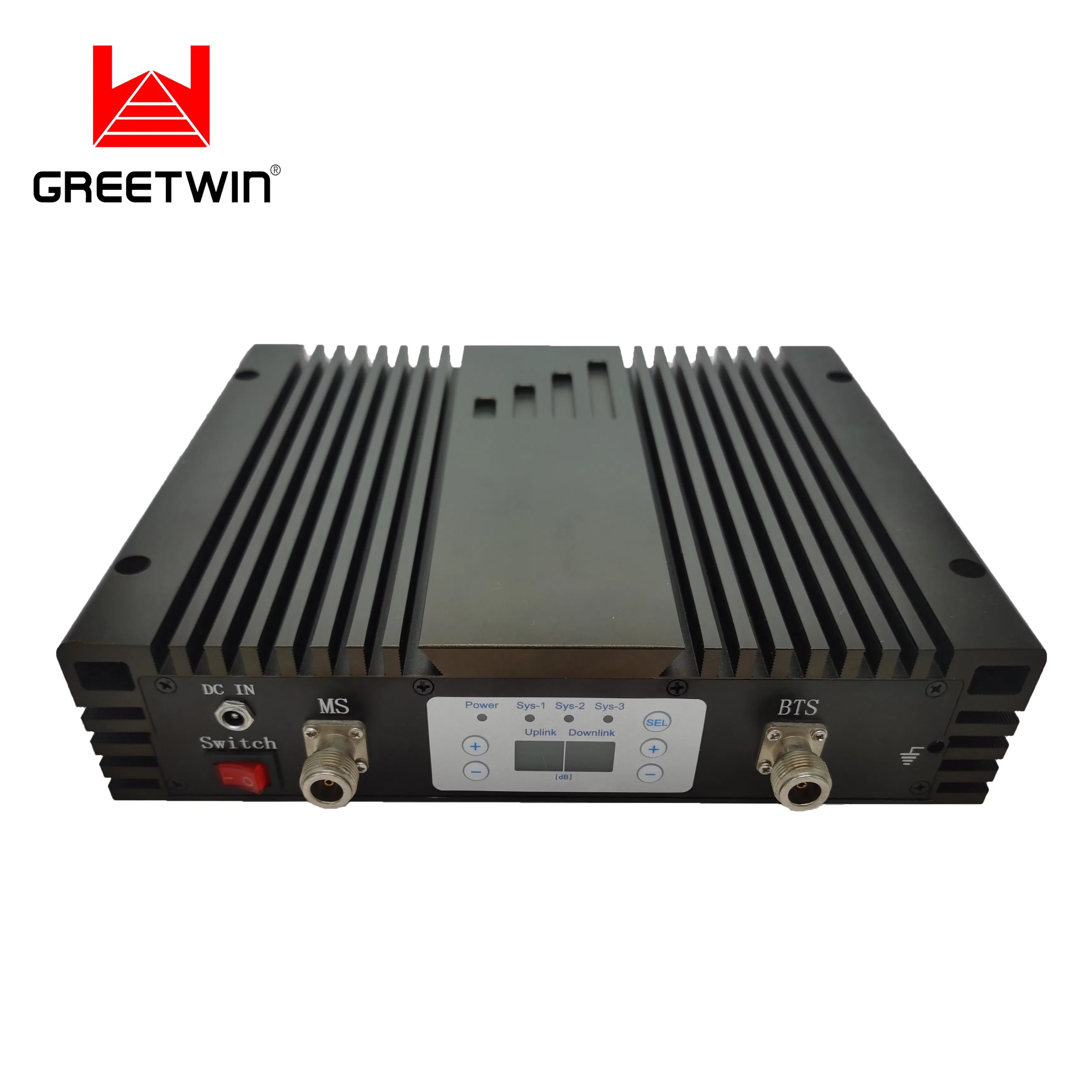

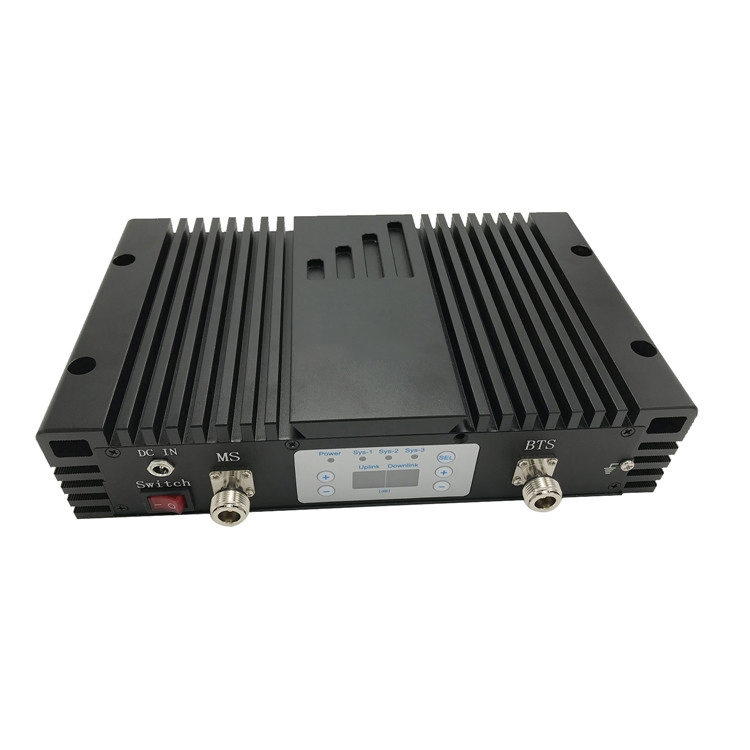

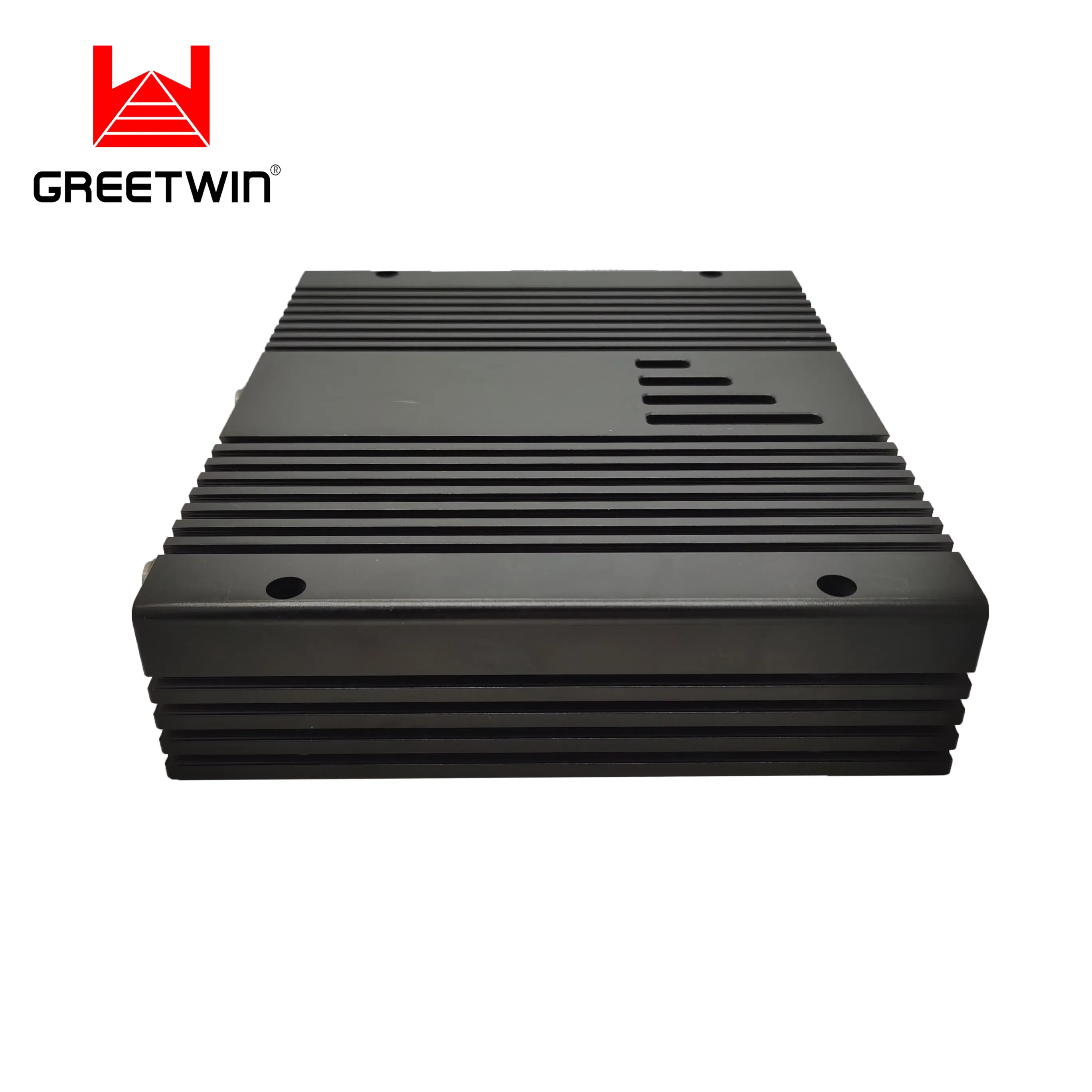

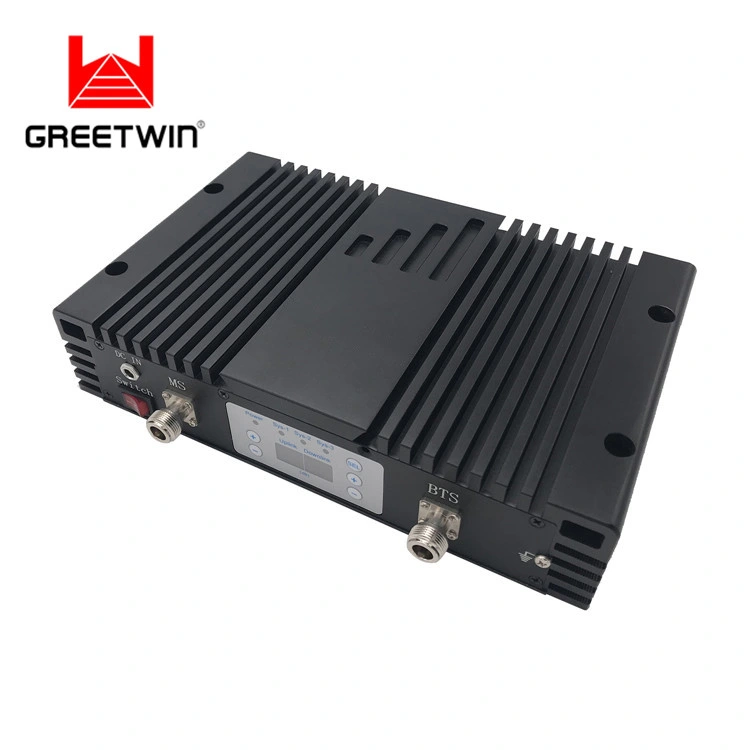

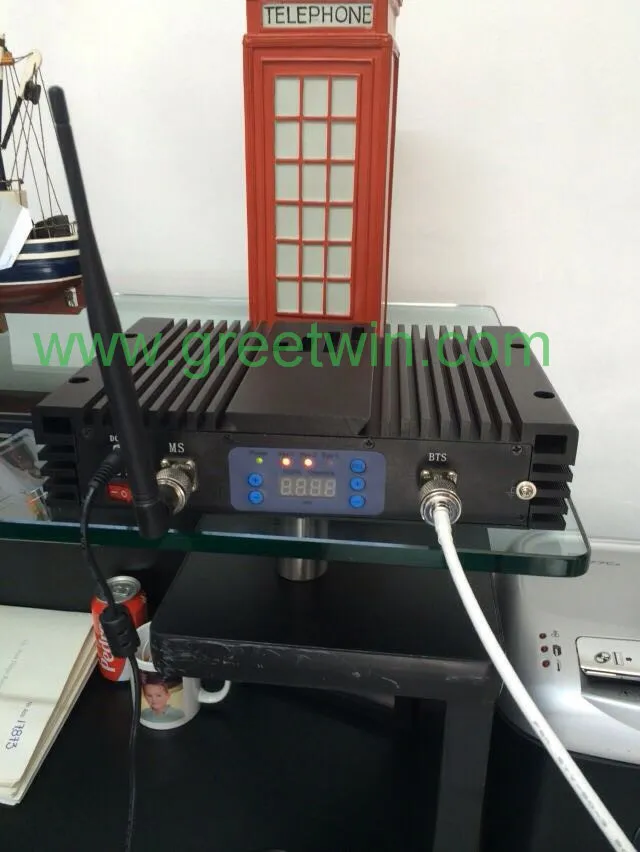

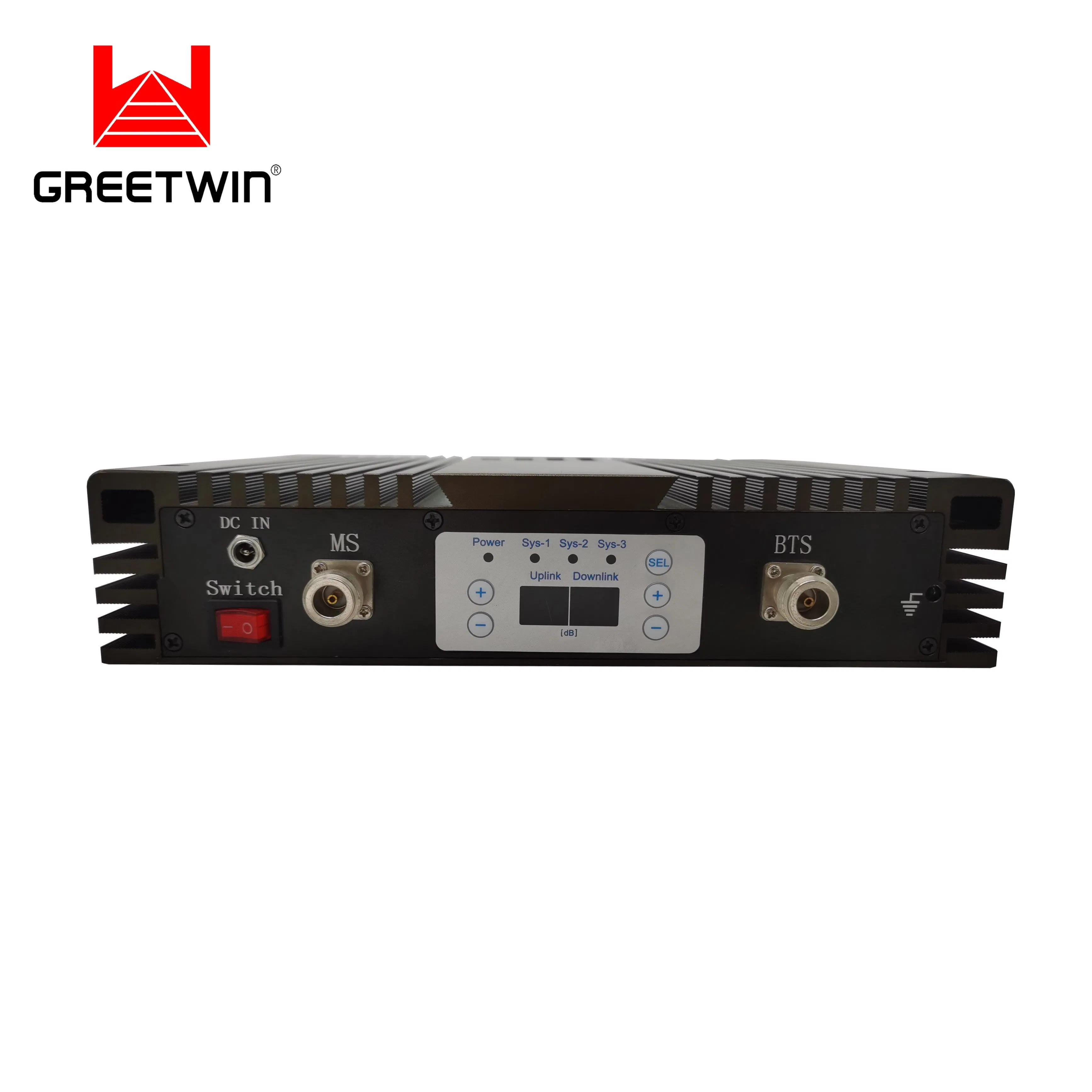

30dBm Lte2600 Mobile Signal Booster Network Repeater Cellphone Amplifier (Model: GW-30L)
The Indoor Pico Repeater series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. Connected via coaxial cable to Donor and Service Antennas, it extends radio coverage from outside signals to indoor blind areas effectively.
Standard Package Includes:
Recommended Accessories:
1. Smart Function & Intelligent Mode: Users can adjust gain and choose working bands via the LED front panel. This is simpler and safer than traditional DIP switches for setting parameters.
2. Auto Level Control (ALC): The 30dB ALC maintains steady output power even when the donor source signal fluctuates, ensuring consistent performance.
Designed to expand coverage in fill-signal blind areas: Hotels, Homes, Basements, Shopping Malls, Offices, and Parking Lots.
| Parameter | Uplink | Downlink |
|---|---|---|
| LTE2600 Frequency | 2500-2570 MHz | 2620-2690 MHz |
| WCDMA/3G 2100 | 1920-1980MHz | 2110-2170MHz |
| GSM 900 | 890-915MHz | 935-960MHz |
| Max Gain | 75dB | 80dB |
| Max Output Power | 23dBm | 30dBm |
| Manual Gain Control | 31dB / 1dB Step | |
| Automatic Gain Control | >20dB | |
| Noise Figure | ≤ 6dB | |
| Time Delay | ≤ 1.5 μs | |
| Power Supply | AC100-240V, DC9V/5A | |
| RF Connector | N-Female | |
| Dimensions | 268mm * 58mm * 189mm | |
| Weight | < 3Kg | |
