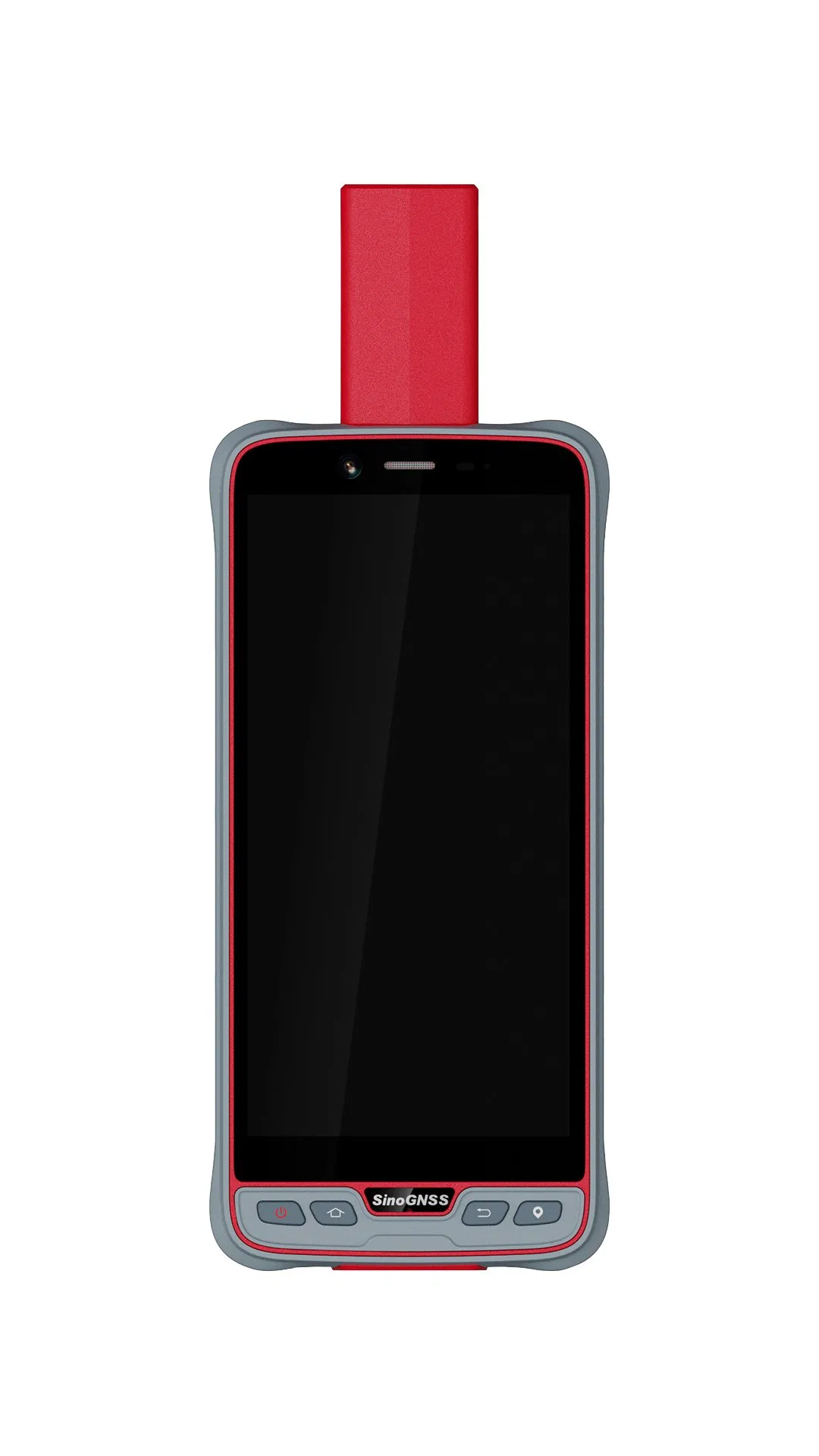

Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
1 / 5
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld
Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld

Sinognss Comnav Handheld Gnss Controller for Survey Gnss Tablet P6H Handheld

Customization: Available
Weight: 310g
G Sensor: Y
Send Inquiry

Product Description

📋 Basic Information
Model NO.
P6H Handheld
Channels
1590
GPS
L1c/a, L2p, L2c, L5, L1c
Beidou
B1l, B2l, B3l, B1c, B2a, B2b
Glonass
L1, L2, L3
Galileo
E1, E5b, E5a, E6c, E5 Aitboc
Rear Camera
13m
Waterproof
IP67
🔍 Product Description

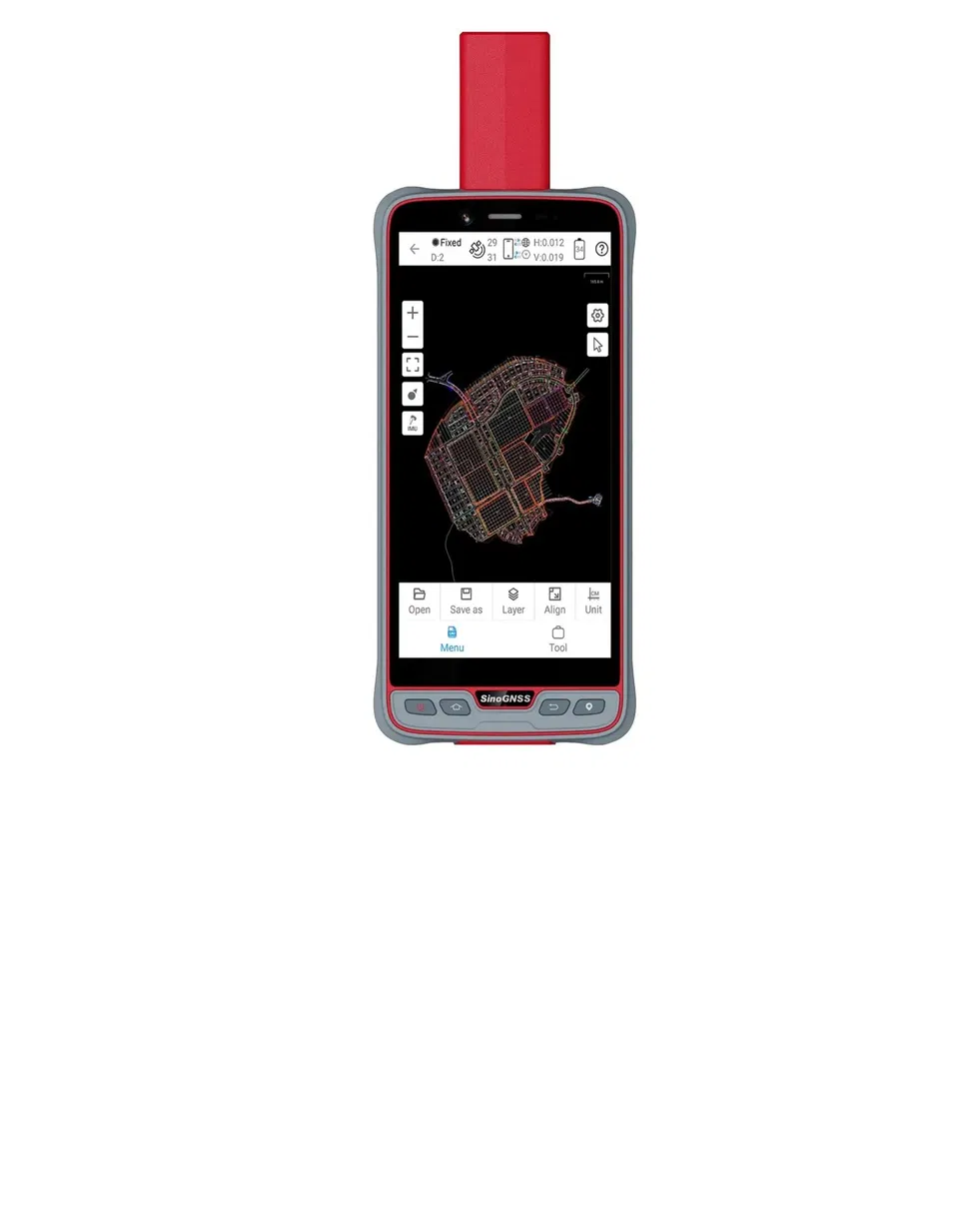

P6H Handheld Device
P6H Handheld The P6H Handheld is an advanced, rugged device tailored for Geographic Information System (GIS). Equipped with a self-developed high precision board and antenna, it tracks all running and planned constellations, including GPS, BDS, GLONASS, GALILEO, QZSS, IRNSS and SBAS. Its accuracy remains at centimeter (RTK) or decimeter (PPP) level. Its portability and durability make it reliable even in harsh conditions.

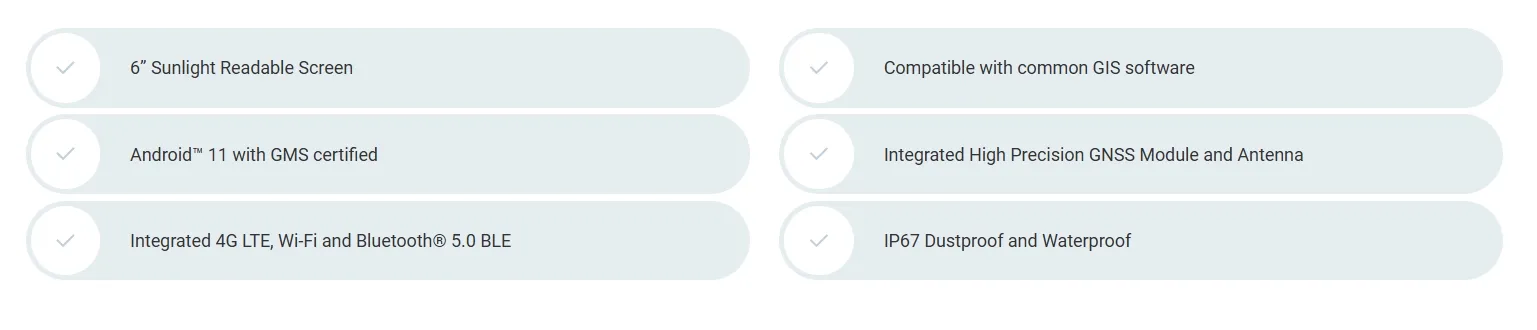

Features Map

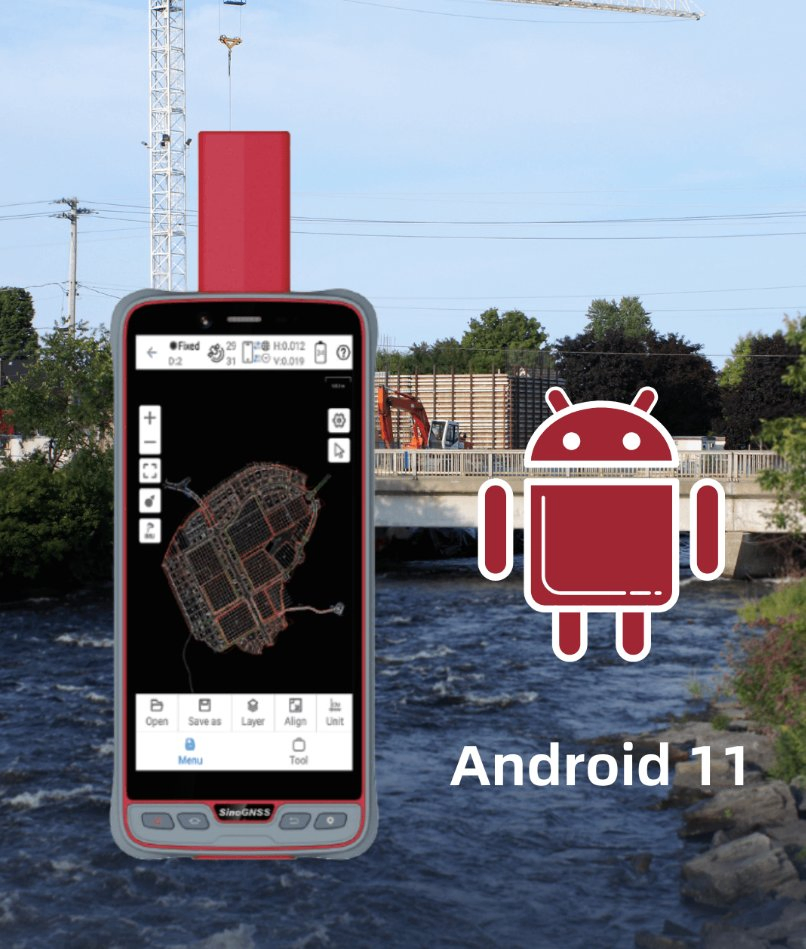

P6H View 1
P6H View 2
P6H View 3
⚙ Product Parameters
Performance Specifications
Channels1590
Satellite TrackingGPS, BeiDou, GLONASS, Galileo, QZSS, IRNSS, SBAS
RTK Accuracy8 mm +1 ppm Horizontal / 15 mm+1 ppm Vertical
PPP (B2b & HAS)20cm Horizontal
Operating SystemAndroid 11
CPU8-core processor 2.0GHz
Memory4GB RAM / 64GB ROM (Expandable)
Battery6600mAh built-in battery
Physical & Communication
Size165.5*81.6*29.1mm
Display6" HD screen, 2160*1080 resolution
RuggednessIP67, 1.2m drop survival
Network4G LTE, Wi-Fi 2.4G/5G, Bluetooth 5.0
⭐ Innovation and Global Support
📍

Innovation Makes a Difference

Technological innovations make your work easier and more efficient. Positioning solutions simplify the workflow of high precision geospatial data collection, providing reliable data for surveying, agriculture, engineering, and unmanned systems.

Support Network
📜 Certifications
Certification 1
Certification 2
📦 Package & Shipping
Shipping Logistics

Packing details: Standard packing include 1pc/polybag, shipped in protective cartons or per buyer's request.

Delivery details: Sample lead time within 7 days upon payment. Shipment via DHL, TNT, UPS, Fedex, or EMS.

❓ Frequently Asked Questions
Do you provide supporting software?
Yes, we provide specialized software for serial/ethernet connection, real-time trajectories, log output, and raw data recording. A convenient webserver interface is also included.
How can I get technical support?
We provide a complete set of documentation including Datasheets, User Manuals, and Quick Start Guides. Technical support is also available via our engineering team.
What is the ruggedness rating of the P6H?
The device is IP67 rated, meaning it is dust-tight and can withstand immersion in water. It is also tested to survive drops from up to 1.2 meters.
Does the device support high-precision RTK?
Yes, the P6H supports 1590 channels and tracks all major constellations (GPS, BDS, GLONASS, Galileo, etc.), achieving centimeter-level RTK accuracy.
What are the battery specifications?
The device is equipped with a high-capacity 6600mAh built-in battery, designed for long-duration field operations.
Is the operating system up to date?
The P6H runs on Android 11, providing a modern, smooth interface and compatibility with various GIS mobile applications.
