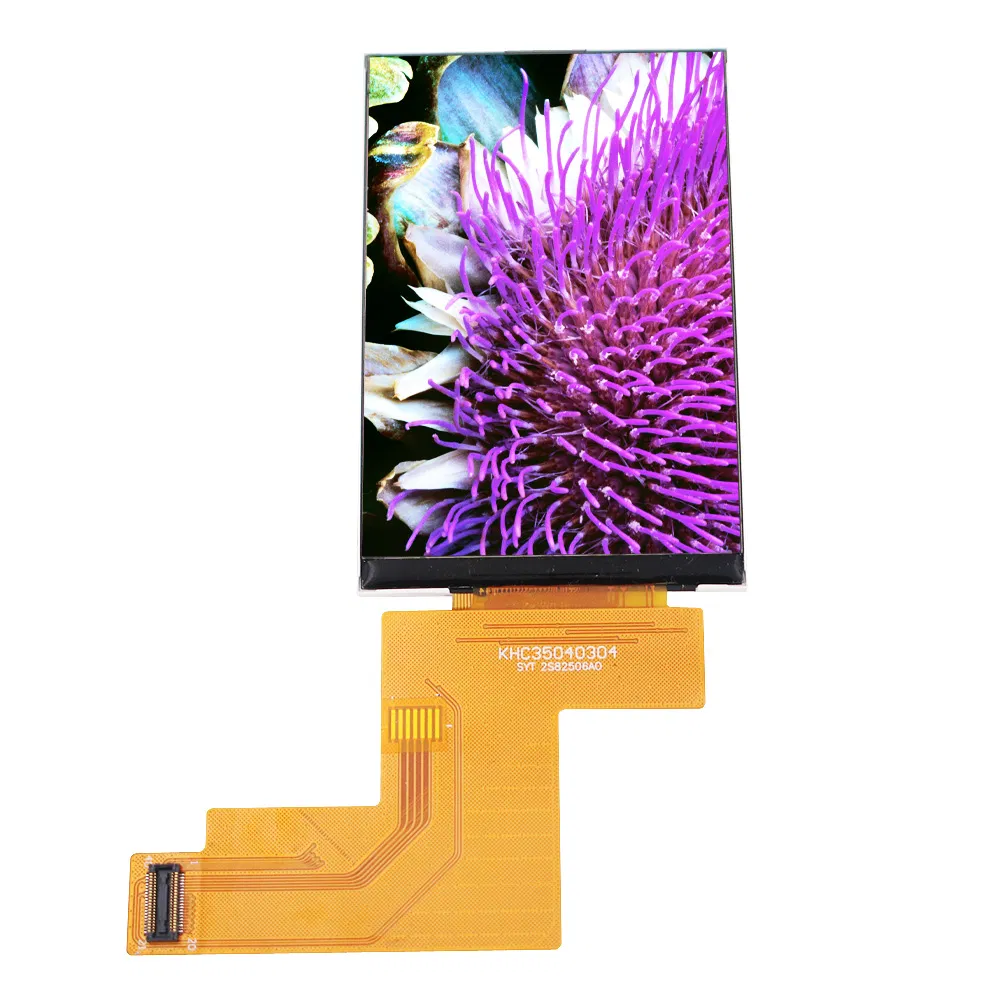

Display Solution: 480*272
| General Specifications | |
|---|---|
| Item | Standard Value |

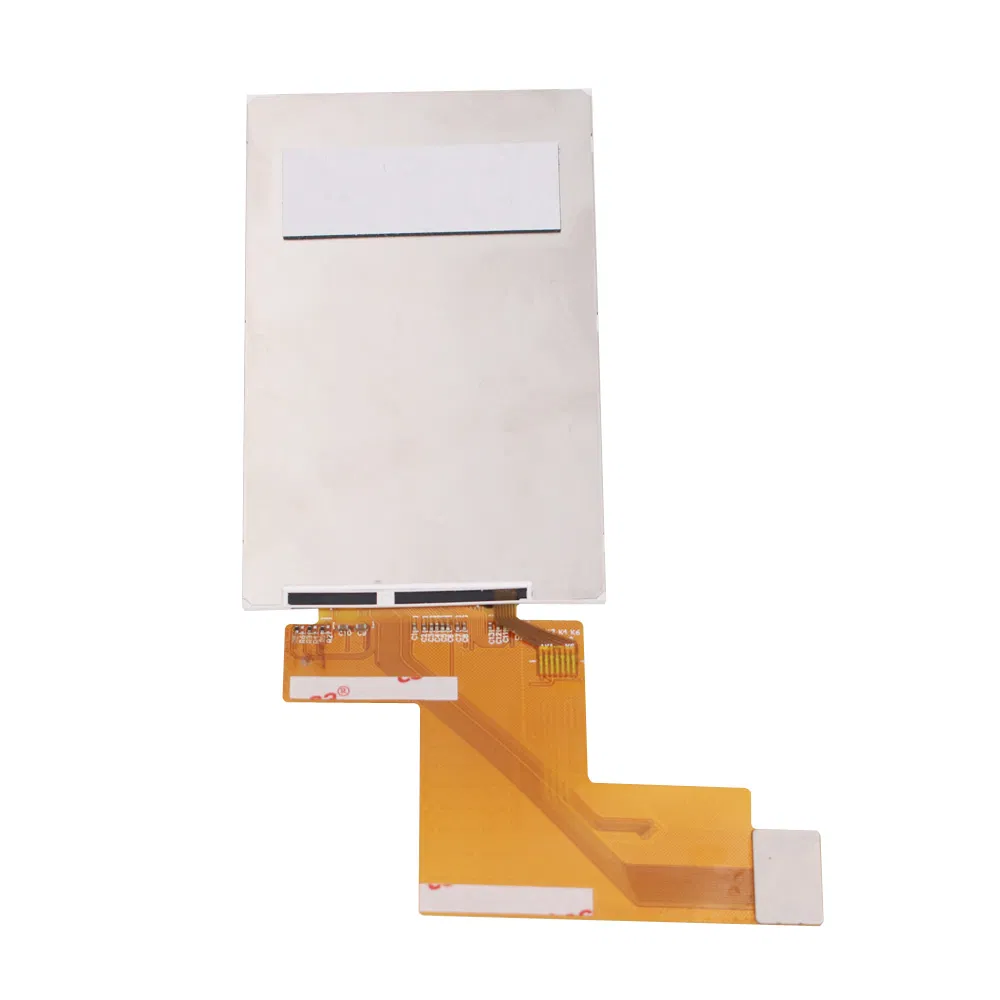

| Size | 3.5" |
| Display Format | 320(RGB) * 480 |
| LCD Type | TFT, Transflective, Positive |
| View Direction | 12 O'clock |
| Backlight | White LED |
| Interface | RGB & MCU |
| Driver IC | ILI9488 |
| Item | Standard Value | Unit |
|---|---|---|

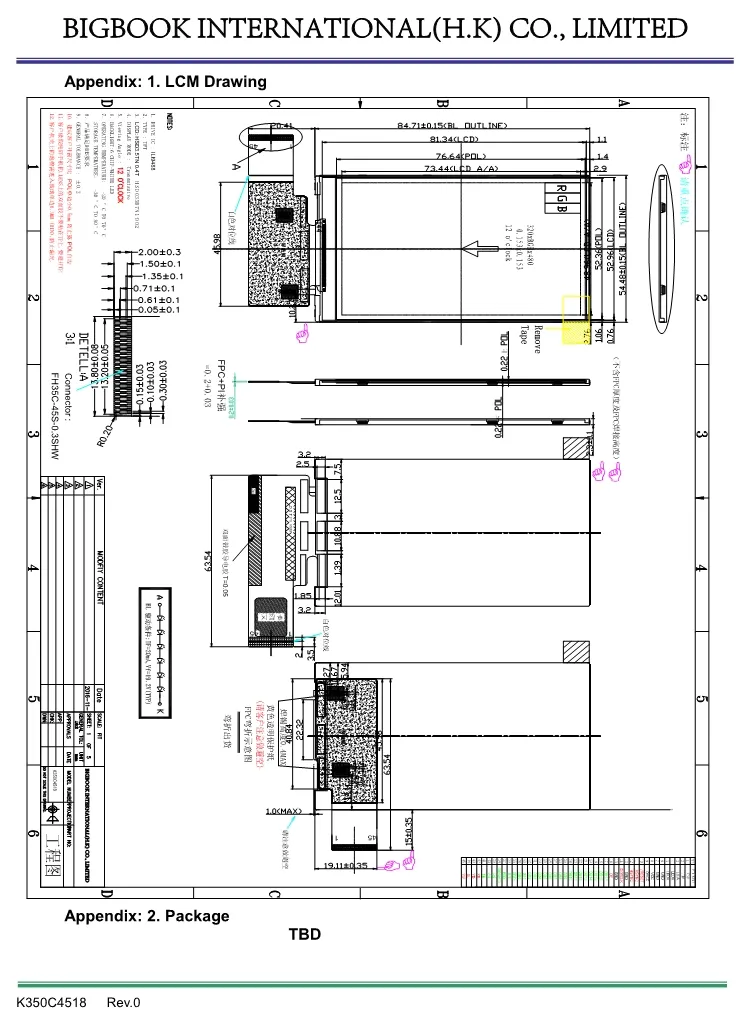

| Outline Dimension | 54.48(W) * 84.71(L) * 2.4(H)(Max) | mm |
| Active Area | 48.96(W) * 73.44(L) | mm |
| Dot Size | 0.153(W) * 0.153(L) | mm |
☆ Clean Room class 100-1000, Pressure 0.8kgf
☆ Antistatic floor resistance: 1x10 ohm to 1x10 ohm

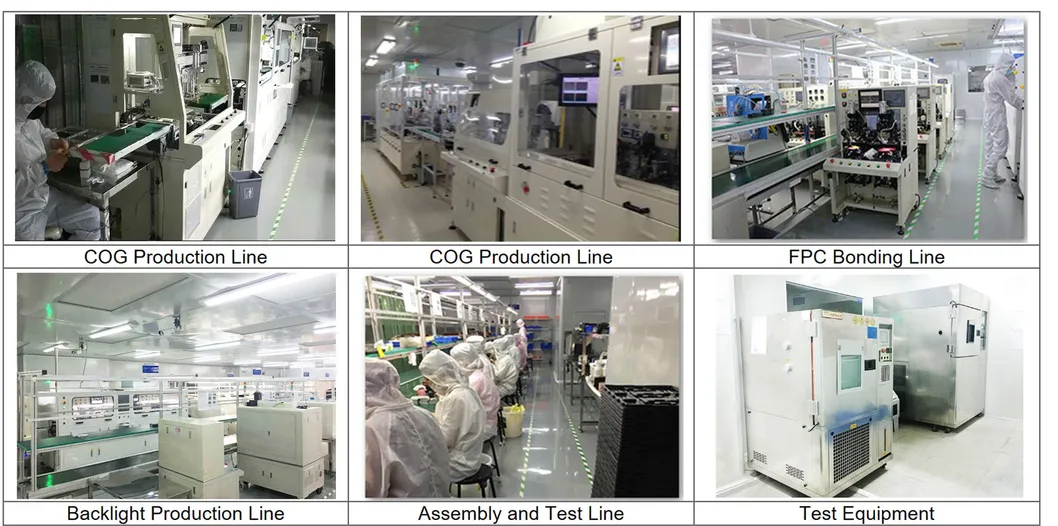

☆ COG Production lines: 4 | Backlight Production lines: 2
Yes. For segment or module types, if the size or content needs modification, a new LCD glass module tool will be required to meet your specific requirements.
Absolutely. We can adjust the material and display type (HTN, STN, FSTN) based on your technical requests.
Please provide the outline size, glass thickness, polarizer type, connector mode, temperature range, supply voltage, and viewing direction.
Generally, it takes 15 to 25 days after the drawing confirmation and tooling payment. Exact timing is reported upon drawing approval.
Yes, sample orders are available for testing and evaluation before moving to mass production.
For standard stock items, it is 1 day. For special mass production orders, the lead time is approximately 15-30 days depending on the complexity.
