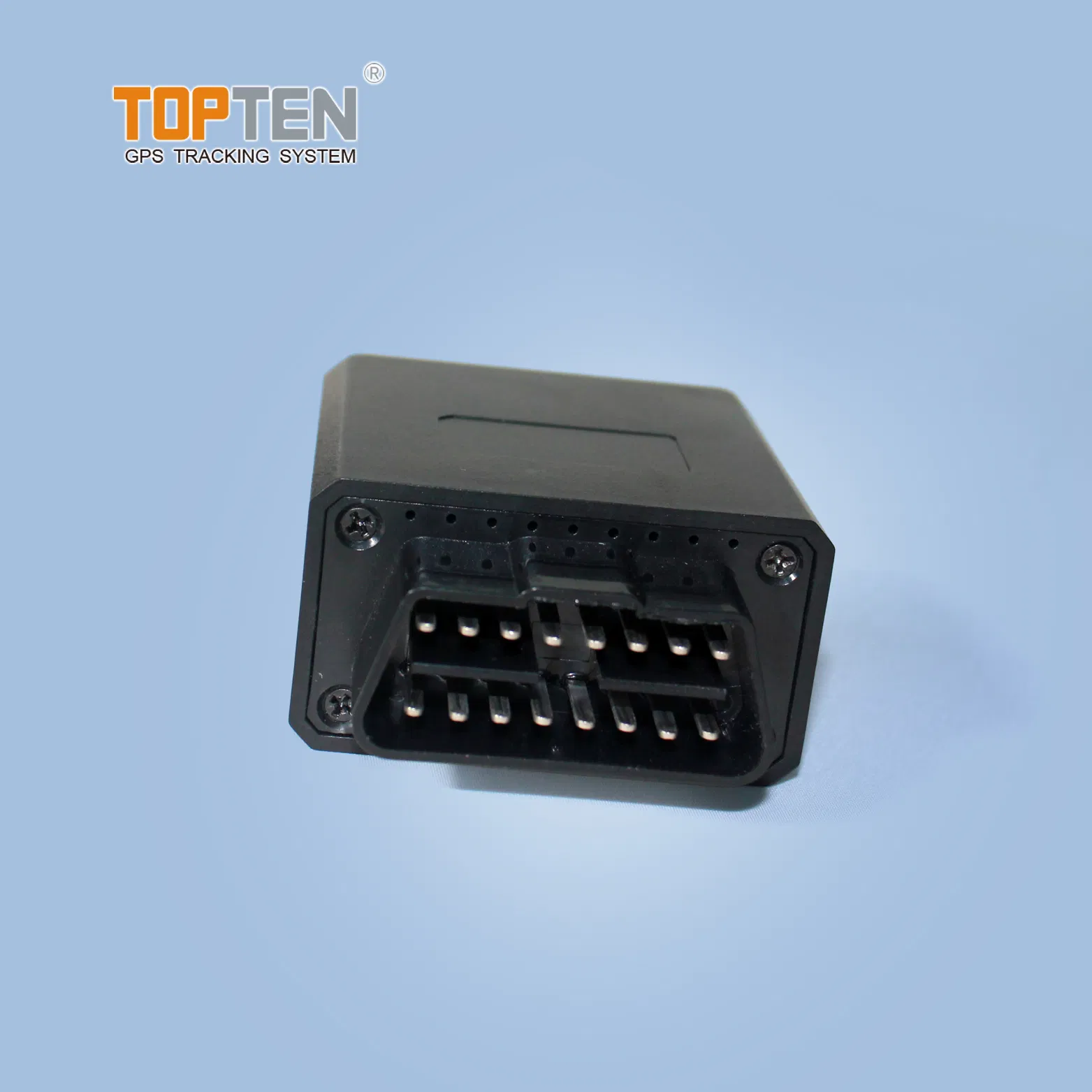

Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
1 / 5
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy
Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy

Topten GPS 4G LTE Cat1 M1 Network OBD Obdii OBD2 GPS Tracker with Tracking Software Android APP Tk428-Wy

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
TK428-WY
Certification
ISO9001
Warranty
1 Year
Working Voltage
+10.0 ~+90VDC
Working Current
3.7V 250mAh Li-ion Battery
Main Unit Weight
73G
Working Temp.
-20 ~ 85 Degree
Positioning
Auto 2D/3D (56 Channels)
Product Overview

4G LTE Cat1 M1 Network OBD OBDII OBD2 GPS Tracker with Android App Support, OTA Upgrade, and Turnover Alarm.

The TK428 OBD-II GPS tracker is designed for vehicle telemetry via the OBD connector. It reads vehicle ECU data including speed, RPM, odometer, fuel consumption, harsh acceleration, braking, and DTC codes via CAN-BUS. Featuring a plug-and-play design, it is compatible with all cars equipped with an OBD-II connector.

Supported CAN-BUS Protocols
No. Protocol Standard Vehicle Type
1ISO 9141-2Asian, European, Chrysler
2ISO 14230 (KWP)Cars
3ISO15765 (CAN)Cars
4SAE J1939Most trucks
5ISO 27145Truck brands like Man, Benz (Actros)
TK428 OBD Tracker
Core Features & Functions
  • Plug & play OBD-II design
  • Real-time track by SMS/GPRS
  • Smart engine ON/OFF detection
  • OTA (Over-the-Air) firmware upgrade
  • Turnover & Crash alarm
  • Data logger for 5520 waypoints
  • Google Maps URL location check
  • Read VIN, DTC, and clear DTC
  • Fuel level reading (select models)
  • Voltage range: 10V-90VDC
Remote Diagnostics Data

Real-time Data: Battery voltage, RPM, Speed, Throttle opening, Engine load, Coolant temperature, Fuel consumption, Odometer, Acceleration/Deceleration times.

Driver Behavior: Ignition time, Total driving/idling time, Average speed, History high speed, History RPM.

Installation & Interface

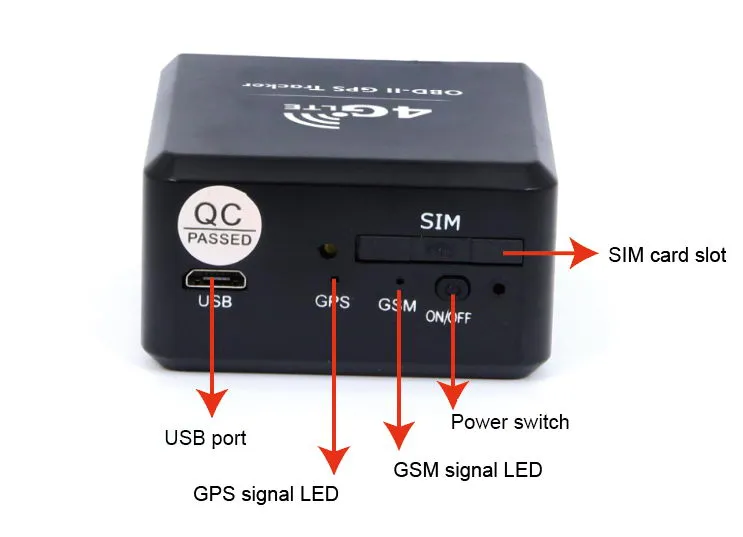

Installation 1

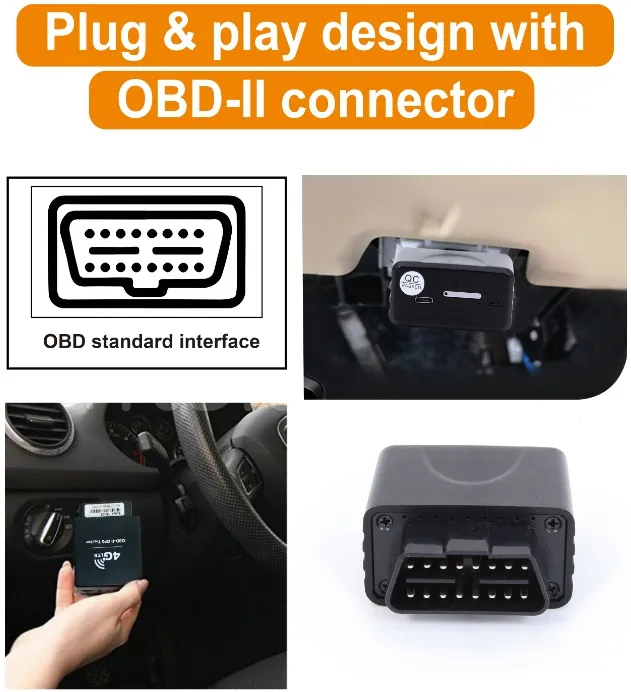

Installation 2

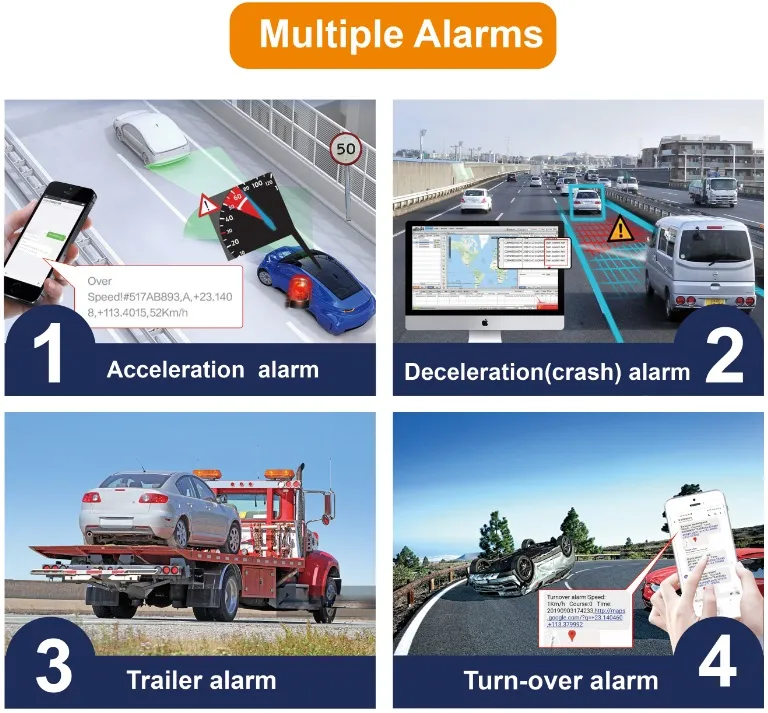

Installation 3

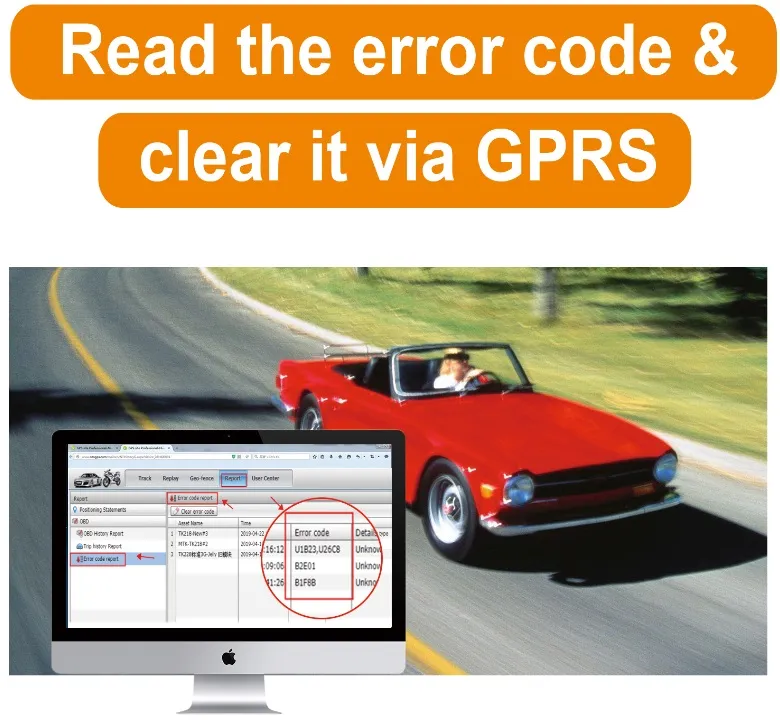

App Interface
Network Support
Tracking System
Frequently Asked Questions
Is the TK428 compatible with all vehicles?
Yes, it features a plug-and-play OBD-II connector design and supports various protocols including ISO 9141-2, ISO 14230, ISO15765, SAE J1939, and ISO 27145, making it suitable for both cars and large trucks.
Can I upgrade the firmware remotely?
Yes, the device supports OTA (Over-the-Air) functions, allowing you to upgrade the firmware wirelessly without removing the device from the vehicle.
What kind of alerts does this GPS tracker provide?
It provides multiple alarms including over-speed, movement, engine ON, vibration, power failure (via internal battery), turnover, acceleration, and crash/deceleration alarms.
Does it store data if there is no signal?
The device includes a built-in data logger that can store up to 5520 waypoints when the connection is unavailable.
What vehicle diagnostic data can it read?
It can read real-time ECU data such as RPM, speed, fuel consumption, engine load, coolant temperature, error codes (DTC), and driver behavior patterns.
What is the operating voltage range?
The TK428 supports a wide voltage range from 10V to 90VDC, which makes it versatile for use in small cars or heavy-duty trucks.
