Product Description

Basic Specifications

Model NO.

GW-23LDL-K

Standard

Lightning Protection

With Lightning Protection

Certification

ISO, RoHS, CE

Coverage

1500-2500sqm

Power

23dBm

Gain

75dB

Power Supply

AC 100-240V, DC 9V 5A

RF Connector

N-Female

Feature

Alc, AGC, Auto Shut off

Production Capacity

20000PCS/Month

HS Code

8543709200

Product Overview

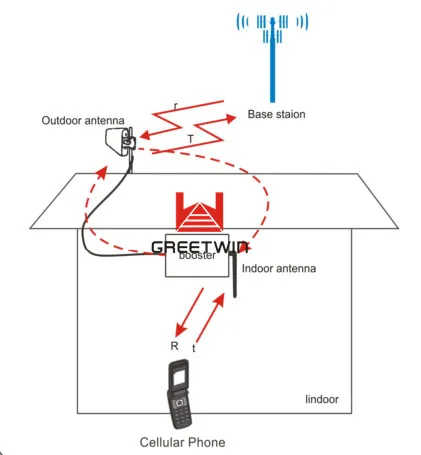

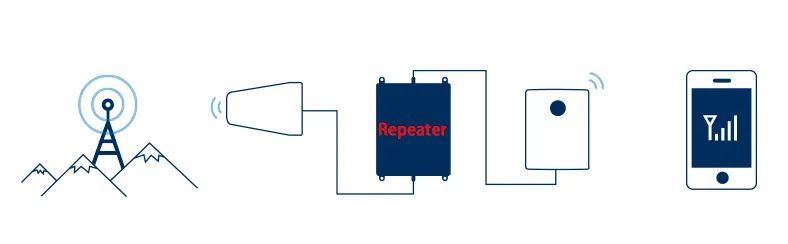

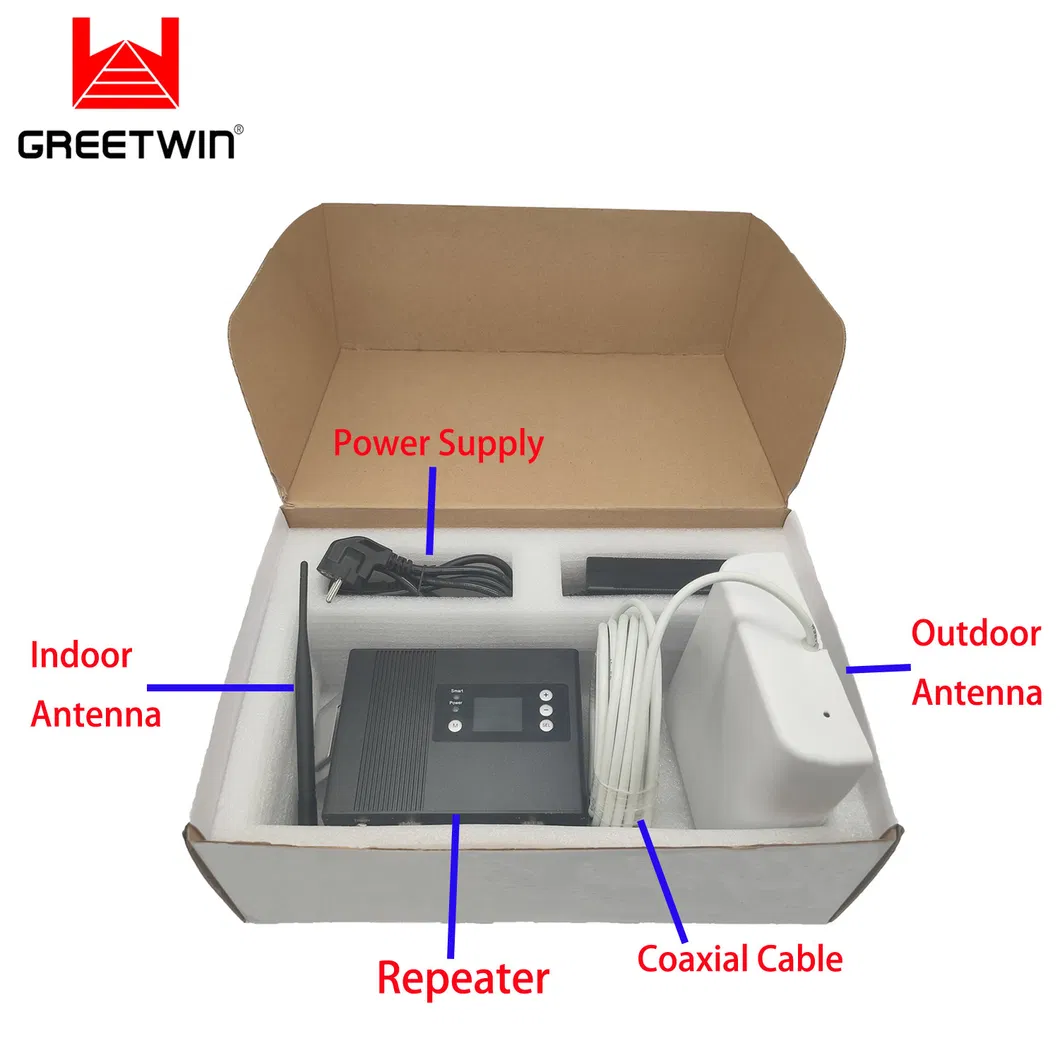

A cell phone signal booster (also known as amplifier or repeater) is made up of three main elements - exterior antenna, amplifier, and interior antenna. They form a wireless system to boost cellular reception.

A cell phone reception booster is generally a repeater system that involves the amplifier adding gain or power to the reception in various directions. The main aim of the cellular phone signal booster is taking the existing cell phone signal around your car, office, workstation or home and amplifying it. After amplification, the signal is rebroadcasted to the area with no reception or weak signal.

Key Advantages & Features

⚡ Smart Functionality:

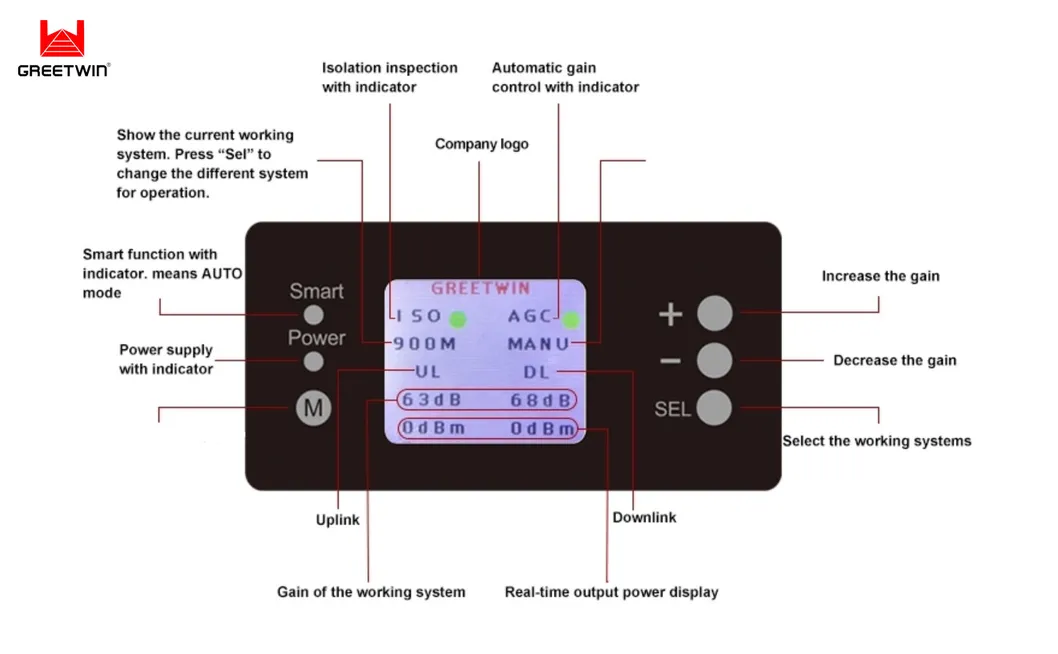

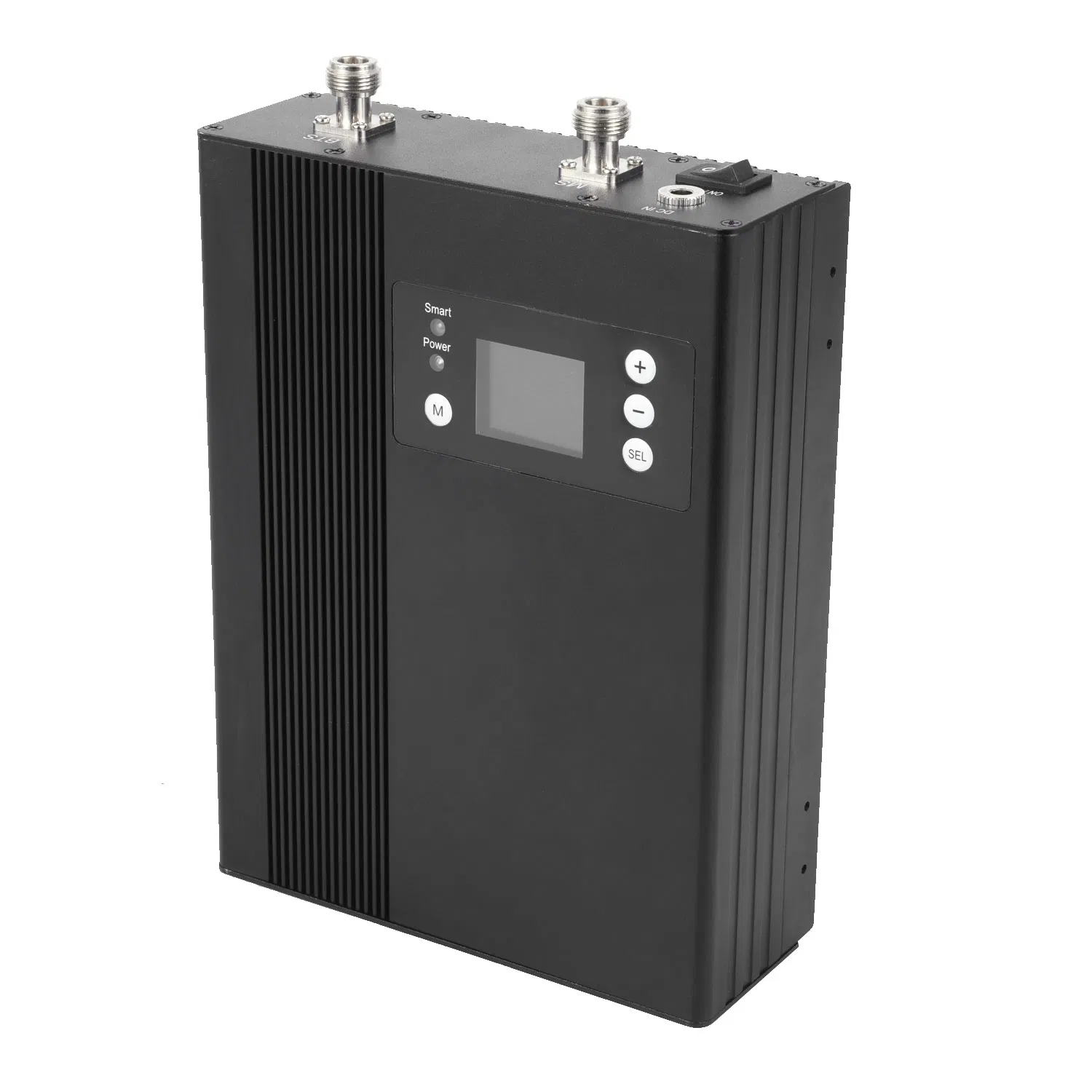

Intelligent mode setting: Activated via the front panel for easy parameter setup.
LED Control Panel: Users can adjust gain and choose working bands easily.
Auto Level Control (ALC): 31dB ALC maintains steady output power even when donor signals fluctuate.

⭐ Main Features:

Cost-effective solution to reduce dropped calls in weak signal zones.
Compact size, low power consumption, and easy installation.
Covers approximately 1500~2500m² without obstructions.
High linear design with low interference to base stations (BTS).
Supports all cellular devices for voice, data, and video.
Wideband support for CDMA800, GSM, DCS, PCS, WCDMA, LTE 4G, etc.

Technical Specifications

Frequency Range	Uplink	Downlink
LTE B20	832-862MHz	791-821MHz
DCS	1710-1785MHz	1805-1880MHz
LTE B7	2500-2570MHz	2620-2690MHz
Gain	70dB±2dB	75dB±2dB
Output Power	20dBm±2dBm	23dBm±2dBm
ALC	≥ 25dB
MTBF	> 50000 hours
Power Supply	AC 100-240V, DC 9V 5A

Installation Guide

Installation Steps:
A. Drill holes in the selected place and install expansion bolts.
B. Align the booster holes with expansion bolts and tighten nuts.
C. Secure the booster onto the wall support.
D. Connect donor (Outdoor) and service (Indoor) cables.
E. Power on to verify operation status.

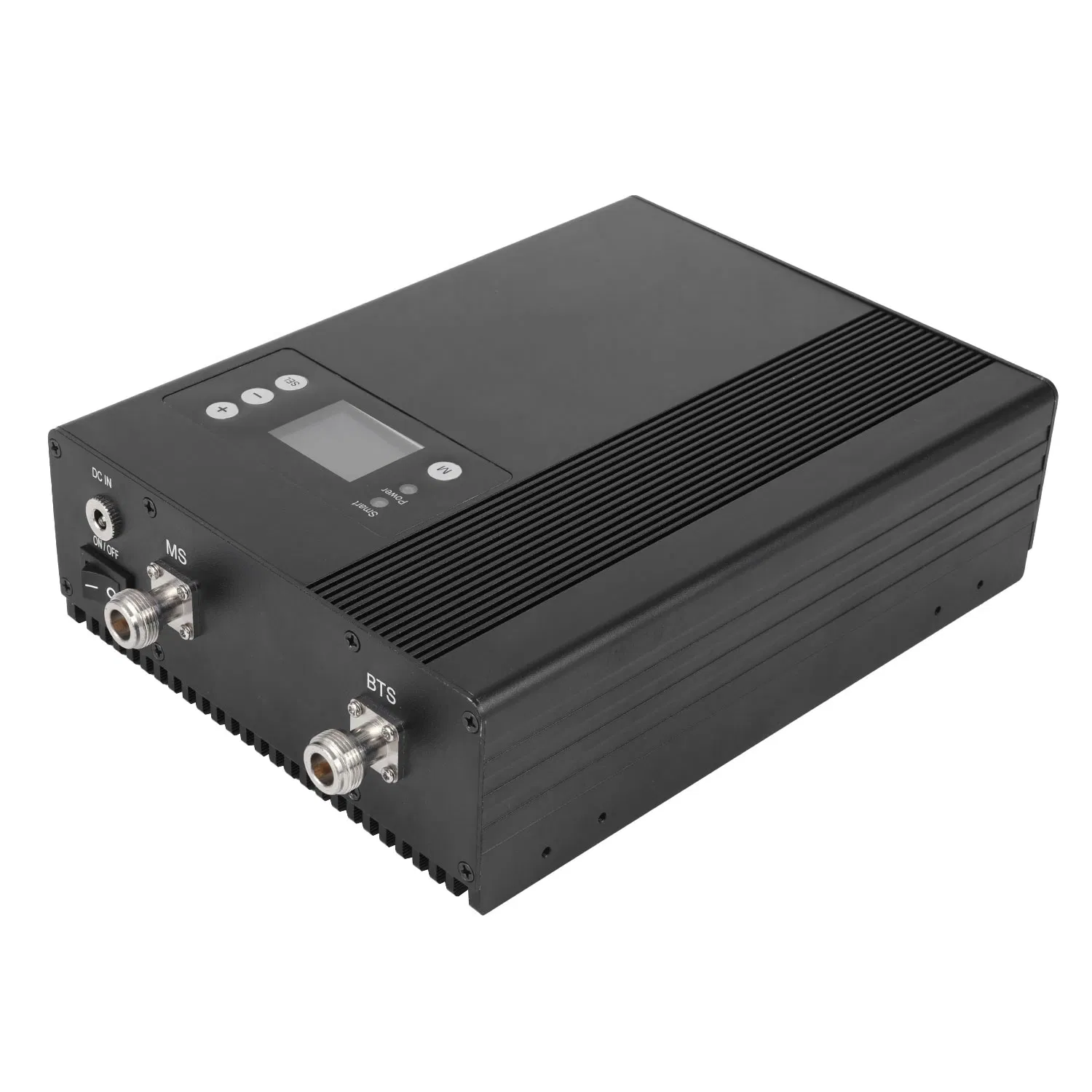

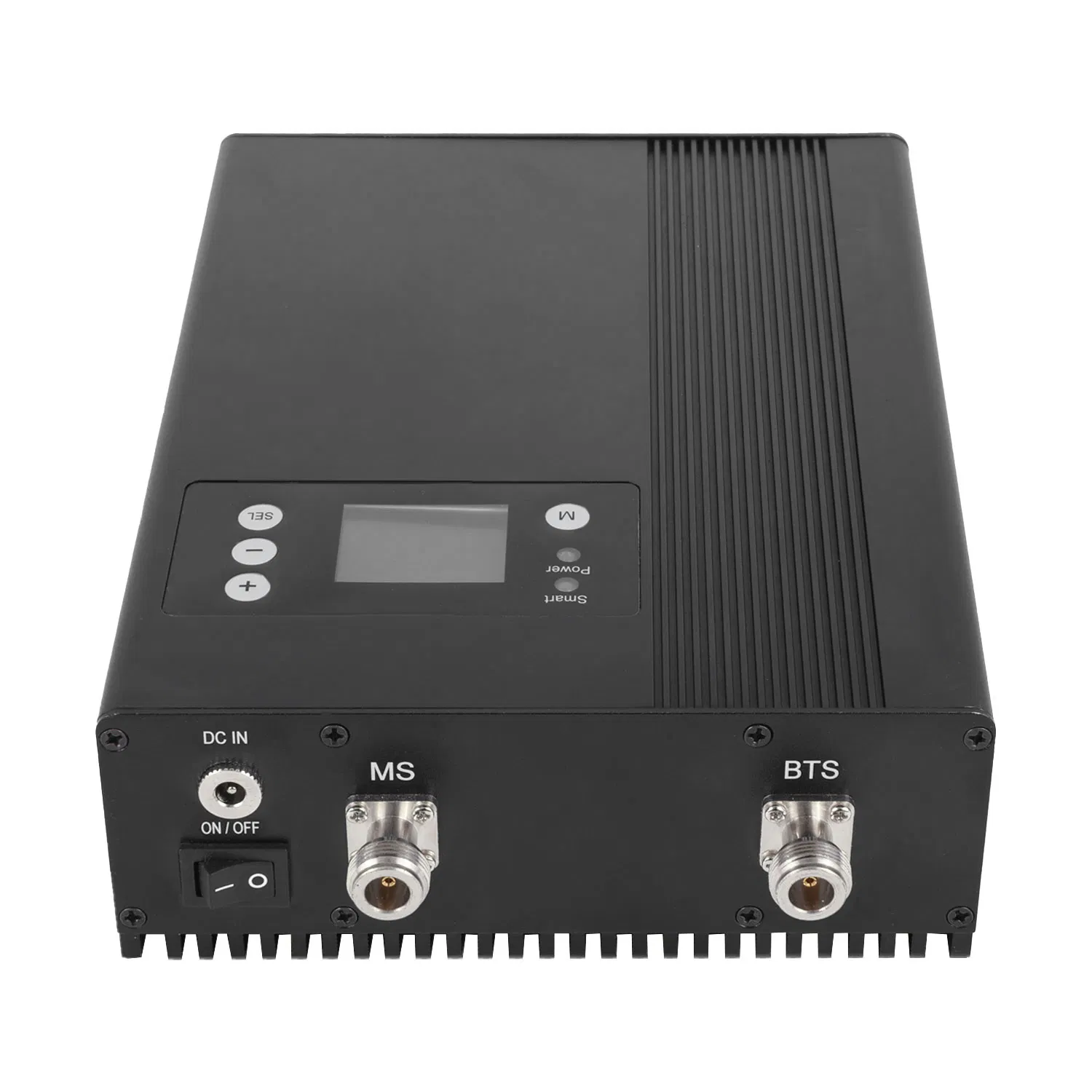

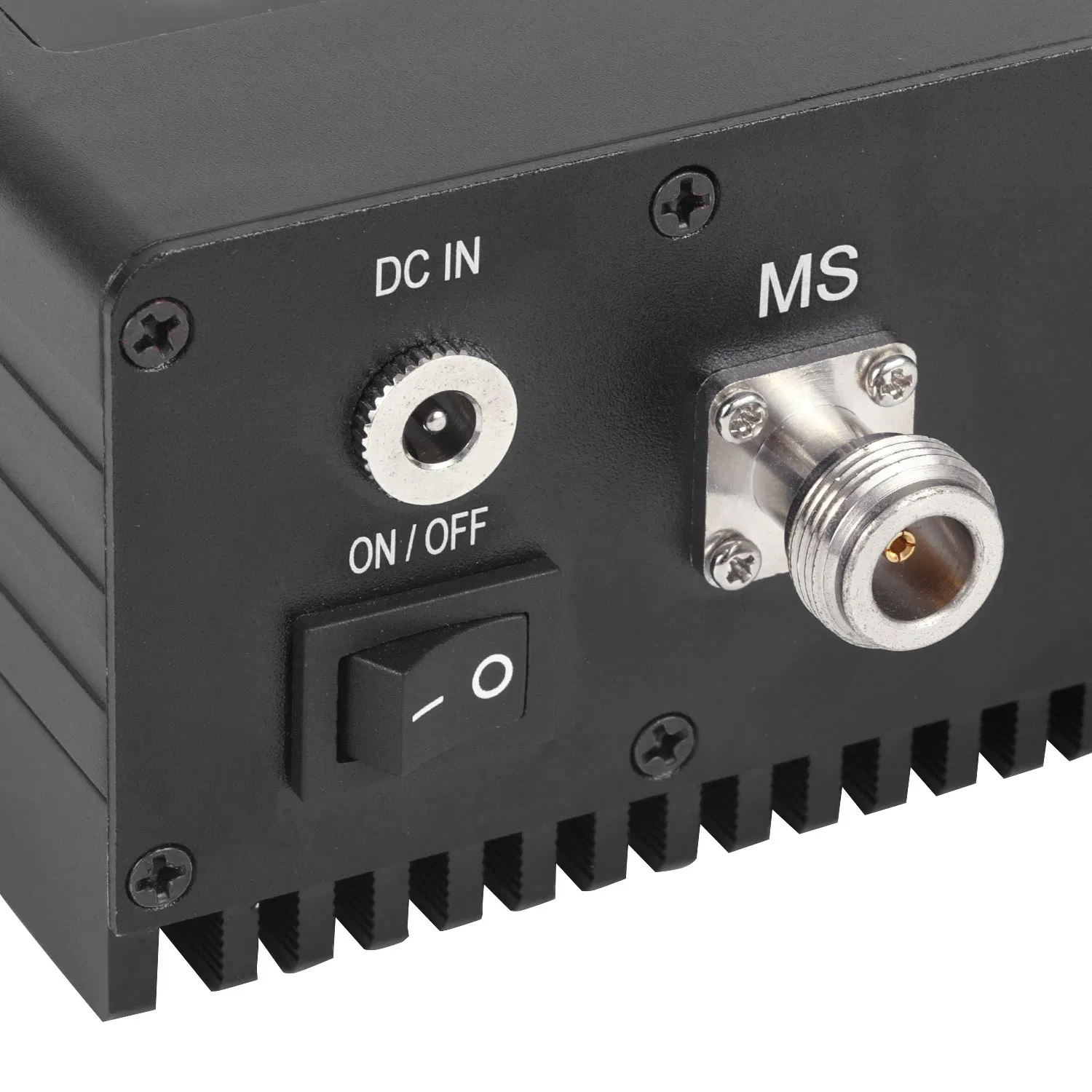

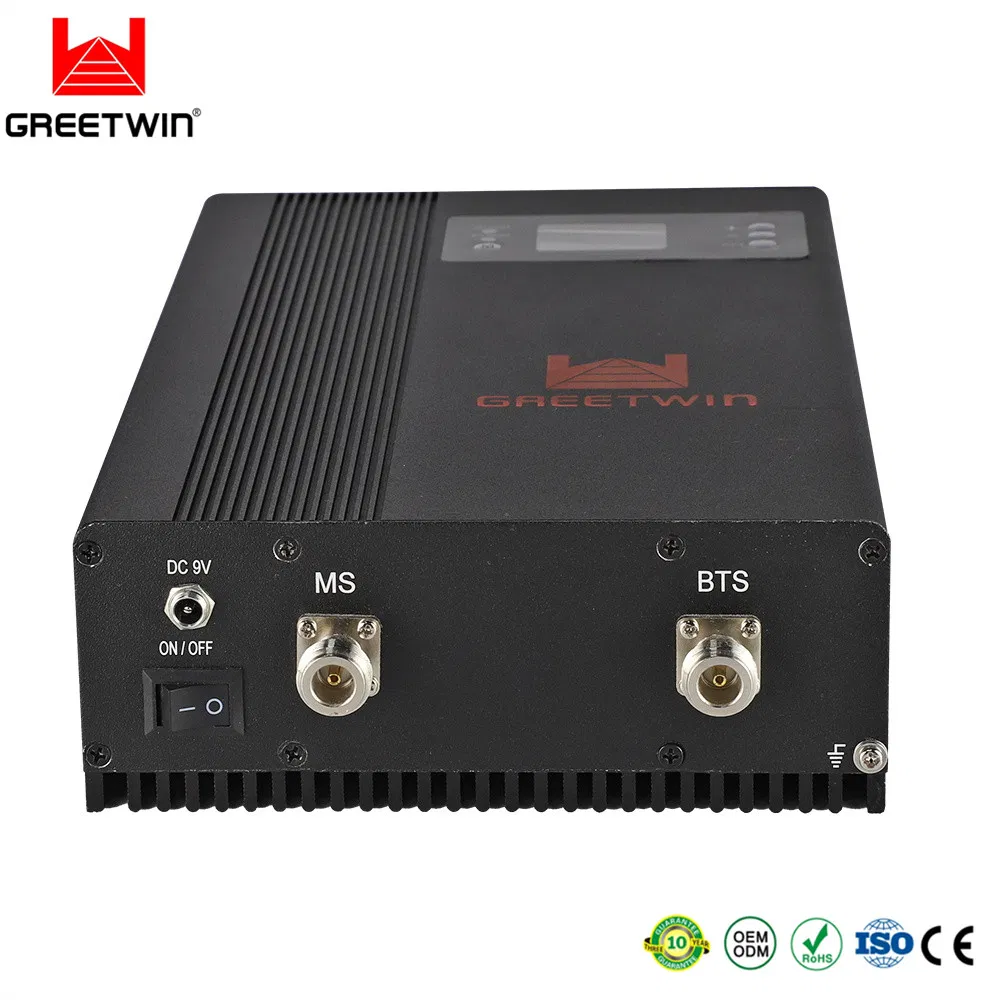

Connection Ports:
• BTS Port: Connected to Outdoor donor antenna.
• MS Port: Connected to Indoor service antenna.
• DC IN: Connected to Power adaptor.

Frequently Asked Questions

Q1: Can I obtain a sample before placing a bulk order?

Yes, samples are available for all models to ensure quality and compatibility before proceeding with larger orders.

Q2: What if I am unsure of the frequency bands used in my country?

Our team can assist you in identifying the required frequencies (2G, 3G, 4G LTE) for your specific region to ensure the booster works effectively.

Q3: Do you support customized OEM or ODM services?

Yes, we provide full customization services, including brand logos, specific colors, and tailored frequency band adjustments.

Q4: What is the typical delivery timeframe for orders?

Samples usually ship within 3-5 business days. Small orders under 50 pieces take about 7 days, while larger quantities are negotiated based on production schedules.

Q5: How do I choose the right power level for my coverage area?

Selection depends on your required coverage: 20dBm covers 500-1500m², 23dBm covers 1500-2500m², and higher power units (27dBm-30dBm) can cover up to 8000m².

Q6: Does the price include all necessary antennas and cables?

Standard pricing typically covers the signal booster unit. Full kits including indoor/outdoor antennas, coaxial cables, splitters, and couplers can be provided upon request.
