Elite Smartphone
1 / 5

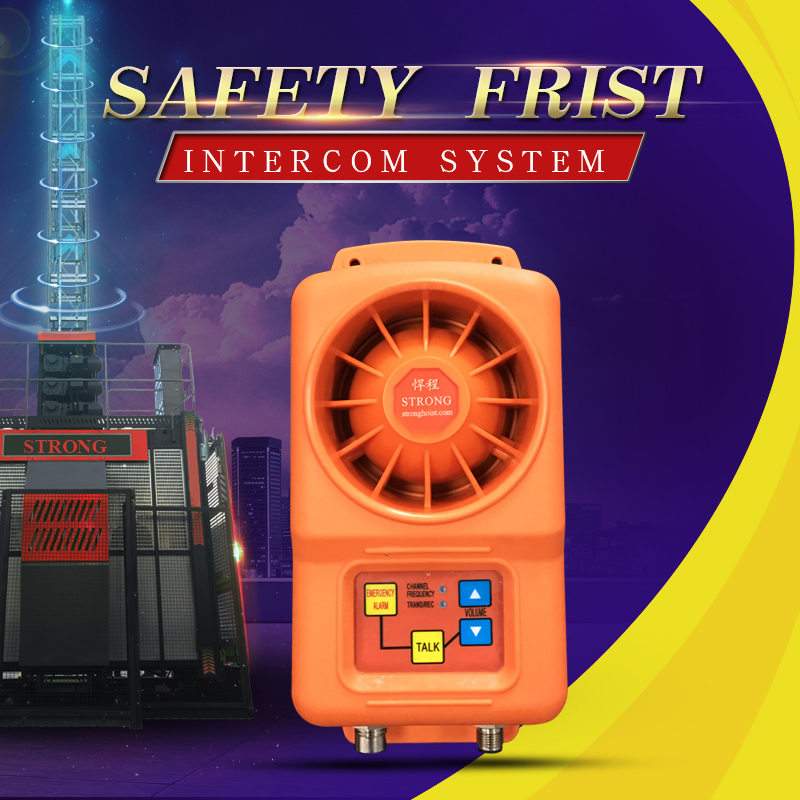

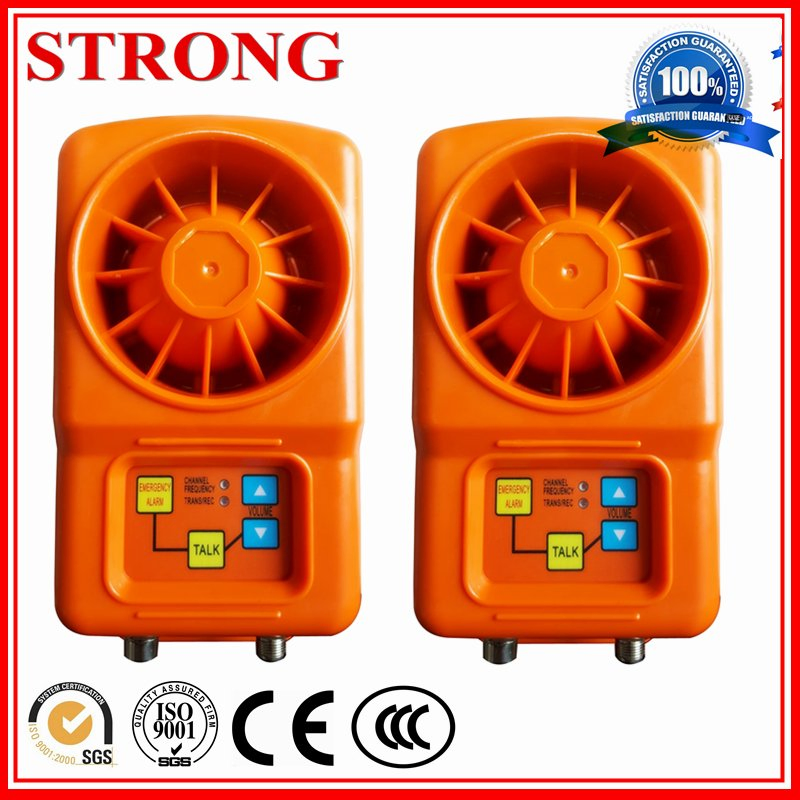

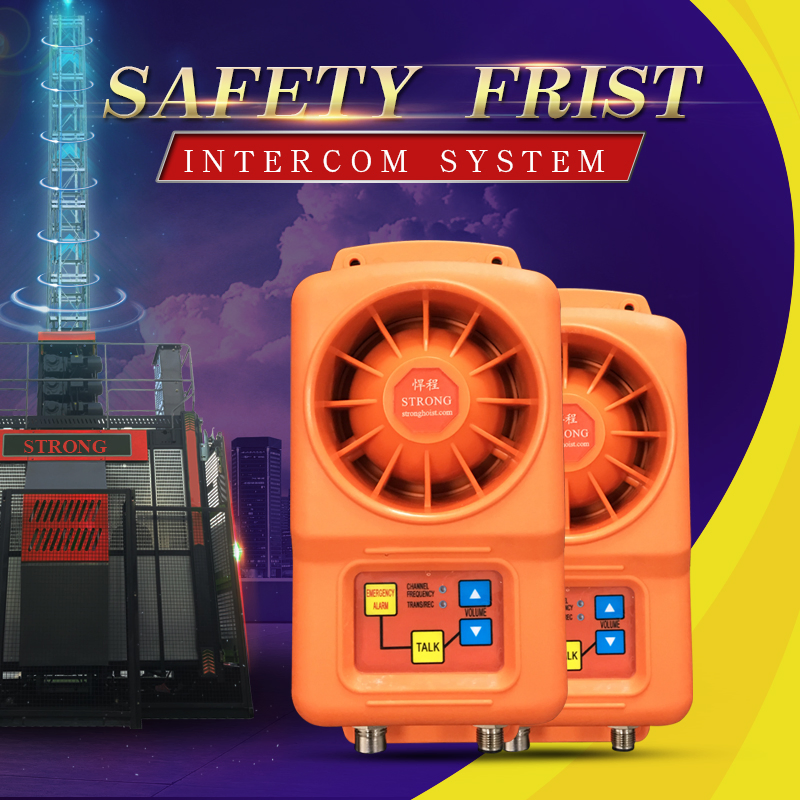

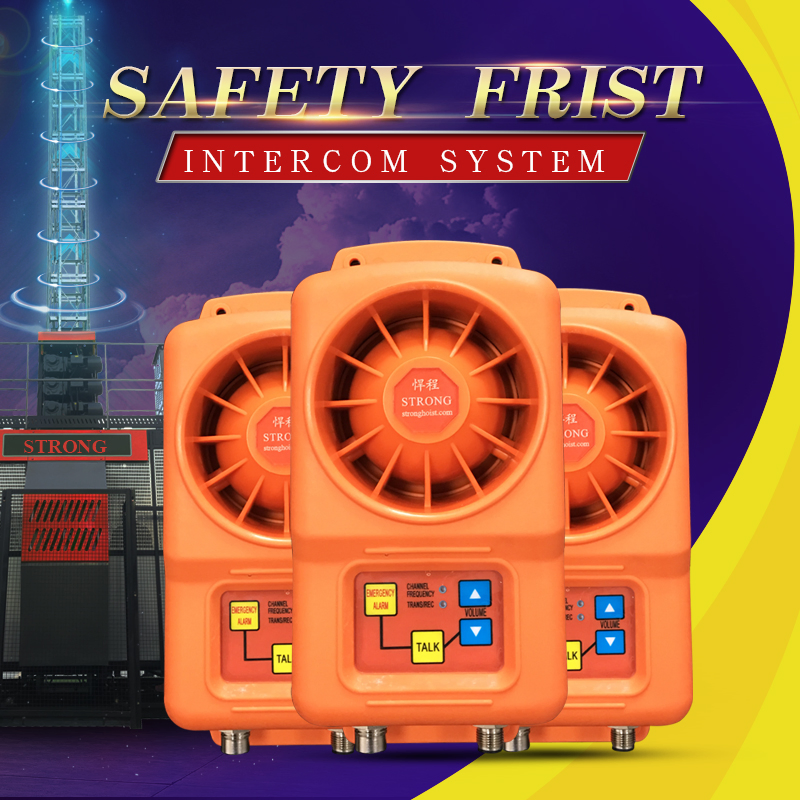

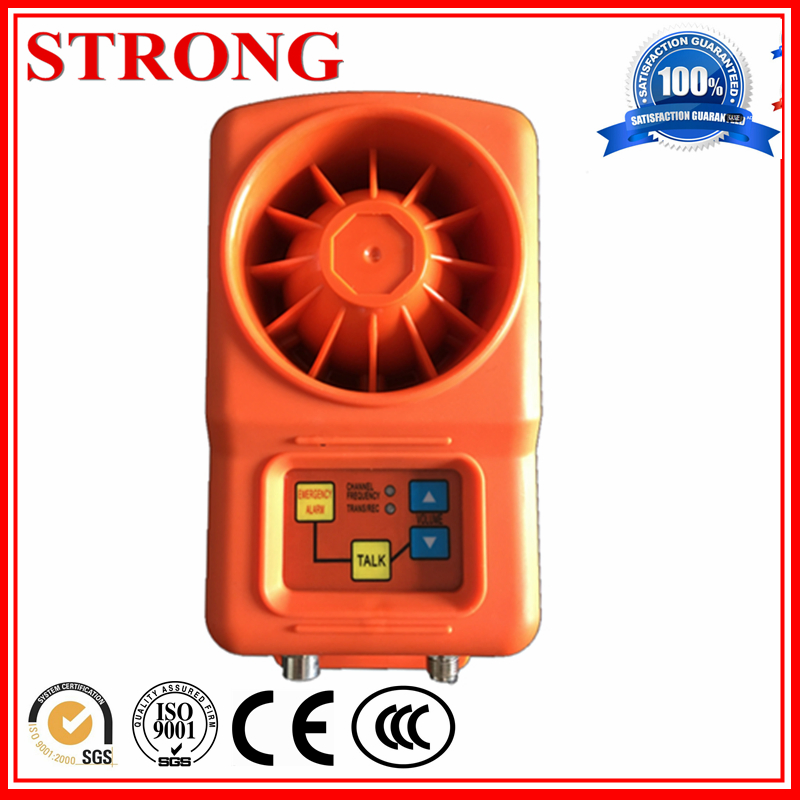

Specifically designed and manufactured to provide CRYSTAL CLEAR communications to help create a safer work environment, which increases PRODUCTIVITY and lowers the risk of LIABILITY.
Mainly used on construction and temporary Hoists/Elevators, it is recommended by OSHA, and also considered the industry standard. Communications is critical to provide workers a way to contact the elevator operator in case of an emergency. When a worker is hurt, seconds count to get medical attention.
Also acts as a general intercom system, allowing supervisors and workers to locate and communicate with each other, reducing down time tremendously and adding to project profit.
Floor Installation: Connect the intercom with the accessory power cable. A dedicated power supply device can drive fewer than twenty units. The protective ground wire must pass through the coupler hole to the ground. Note: Do not ground the wire in the middle.
Lifting Cage Installation: Connect the intercom, power supply, and coupler in the lift cage. The protective ground wire must pass through the coupler hole and be connected with the ground.
| NO | Term | Cable | Explain |
|---|---|---|---|
| 1 | L | Power (Blue) | Three core cable |
| 2 | N | Power (Brown) | Three core cable |
| 3 | G | Ground (Yellow) | Three core cable |
| 4 | -V | Cable shield | Four core shielded |
| 5 | -V | Negative power (Brown) | Four core shielded |
| 6 | +V | Positive power (Black) | Four core shielded |
| 7 | +V | Positive power (Blue) | Four core shielded |
